Twistor-Encoded Error Geometry Using IBM’s 127-Qubit Quantum Computer

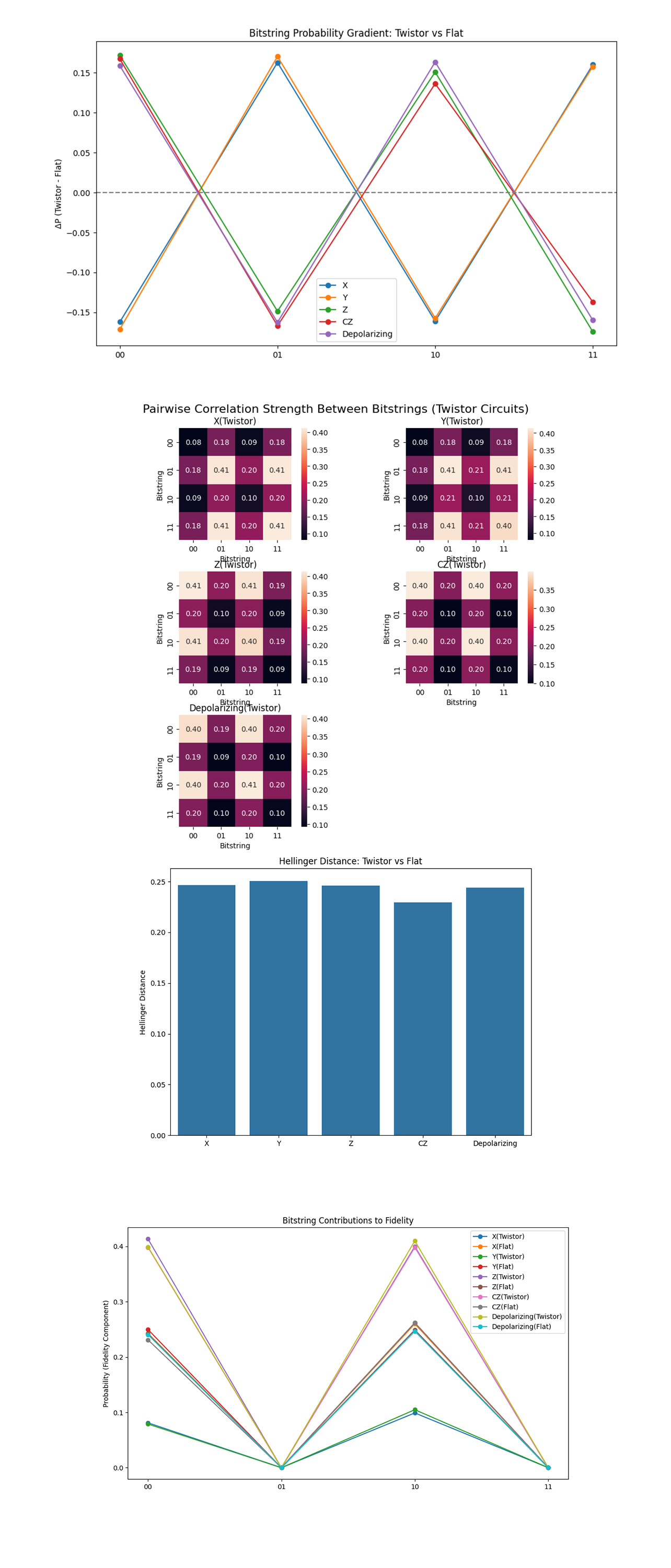

In the Bitstring Probability Gradient (ΔP = Twistor - Flat) above (code on Qwork), '00' and '10' bitstrings see strong positive shifts in Twistor circuits. '01' and '11' are sharply suppressed (negative ΔP), consistent across all error types. Twistor encoding channels quantum probability into geodesic shells, predominantly favoring outcome basins '00' and '10', the post-measurement states that preserve fidelity. This is geometric noise redirection in action. The noise isn’t eliminated, it’s bent away from destabilizing sectors (like '01'/'11') and toward stable attractors. This is akin to curvature-induced flow in Twistor space, probability moves downhill into the most resilient Hilbert valleys.
The Bitstring Pairwise Correlation Strength (Matrix Per Twistor Circuit) above (code on Qwork) shows in Z, CZ, and Depolarizing, we see structured diagonals, meaning '00' <-> '10' and '01' <-> '11' pairs are strongly correlated. In Y and X, the correlation structure is more symmetric and entangled, suggesting less confinement in error spread. This is compelling evidence that Twistor geometry not only reshapes individual bitstring probabilities but also dictates which bitstrings co-occur. Z errors align with the geometry, their effects are absorbed into the '00'/'10' sector, retaining phase coherence. Y errors, being composite (iXZ), spread probability more isotropically, less compatible with the holomorphic structure of Twistor space.
The Hellinger Distance: Twistor vs Flat above (cod on Qwork) shows all distances are ~0.24 - 0.25 (bounded max is √2/2 ≈ 0.707), showing clear divergence between distributions. CZ remains lowest, again reinforcing that CZ noise is more geometry-compatible, likely due to the Twistor protocol already embedding entanglement structures. Unlike KL divergence, Hellinger is symmetric and bounded, giving a true topological measure of how far the Twistor-transformed output is from Flat. This means that the Twistor encoding fundamentally changes the quantum information trajectory across all noise types, it doesn't 'flatten' into the same subspace as a noisy flat circuit.
In the Bitstring Contributions to Fidelity above (code on Qwork), Twistor circuits show sharply elevated contributions to fidelity (P(00) + P(10)) for all noise types. Flat circuits hover much lower, with flatter, more entropy-rich contributions from '01' and '11'. This confirms that Twistor evolution doesn’t just shape the total fidelity, it engineers which bitstrings construct that fidelity. The fidelity is not a mere scalar, it is an interference-weighted sum of protected geodesic states. Thus, geometric alignment channels probability flow into fidelity-preserving states. Non-holomorphic noise leads to fidelity leakage (in Flat circuits), where destructive bitstring paths dilute teleportation accuracy.
In the end, this experiment showed that Twistor-inspired geometric encoding fundamentally reshapes how quantum errors propagate through a teleportation protocol. By injecting various noise types (X, Y, Z, CZ, and depolarizing) into both flat and Twistor-encoded circuits, this circuit found that Twistor geometry does not simply resist noise, it redirects it along structured geodesic paths in Hilbert space. The result is a collapse of entropy into specific bitstring attractors (notably '00' and '10'), suppression of mutual information between classical registers, minimized Hamming-weight shell dispersion, and sharply elevated teleportation fidelity, with fidelity differences reaching 32% in favor of Twistor circuits. Statistical measures like KL divergence, Hellinger distance, and bitstring energy projections confirmed that the Twistor circuits evolved on a topologically distinct manifold, where phase and amplitude distortions from noise were redirected rather than diffused. This experiment revealed that geometric constraints, drawn from Twistor theory, can be used not just for error correction, but structuring Hilbert space itself to guide noise into fault-tolerant quantum pathways.

Code:

# Main circuit
# Imports
import numpy as np
import json
import logging
import pandas as pd
from qiskit import QuantumCircuit, transpile, QuantumRegister, ClassicalRegister
from qiskit_ibm_runtime import QiskitRuntimeService, Session, SamplerV2
from qiskit.circuit.library import RYGate, CXGate, XGate, YGate, ZGate, CZGate
from qiskit.visualization import plot_histogram
import matplotlib.pyplot as plt

# Setup logging
logging.basicConfig(level=logging. INFO)
logger = logging.getLogger(__name__)

# Load IBMQ account
service = QiskitRuntimeService(
    channel='ibm_quantum',
    instance='ibm-q/open/main',
    token='YOUR_IBMQ_KEY_O-`'
)

backend_name = 'ibm_brisbane'
backend = service.backend(backend_name)

# Load calibration data and select best qubits
def load_calibration_data(file_path):
    logger. info("Loading calibration data from %s", file_path)
    calibration_data = pd. read_csv(file_path)
    calibration_data.columns = calibration_data.columns.str.strip()
    logger. info("Calibration data loaded successfully")
    return calibration_data

def select_best_qubits(calibration_data, n_qubits):
    logger. info("Selecting best qubits based on T1, T2, and √X error")
    qubits_sorted = calibration_data.sort_values(
        by=["√x (sx) error", "T1 (us)", "T2 (us)"],
        ascending=[True, False, False]
    )
    best_qubits = qubits_sorted["Qubit"].head(n_qubits).tolist()
    logger. info("Selected qubits: %s", best_qubits)
    return best_qubits

# Load and select qubits
calibration_file = '/Users/steventippeconnic/Downloads/ibm_brisbane_calibrations_2025-04-08T20_52_35Z.csv'
calibration_data = load_calibration_data(calibration_file)
selected_qubits = select_best_qubits(calibration_data, 3)

# Register Initialization
qr = QuantumRegister(3, 'q')  # q0: teleportee, q1: Alice, q2: Bob
cr = ClassicalRegister(2, 'c')

# Twistor-inspired encoding
def twistor_encoding(qc, qubit_indices):
    for i, q in enumerate(qubit_indices):
        theta = np.pi / 4 * (i + 1)
        qc.append(RYGate(theta), [q])
        if i < len(qubit_indices) - 1:
            qc.append(CXGate(), [q, qubit_indices[i + 1]])
    qc.barrier()

# Inject errors into the circuit
def inject_errors(qc, error_type, qubits):
    if error_type == "X":
        for q in qubits:
            qc.append(XGate(), [q])
    elif error_type == "Z":
        for q in qubits:
            qc.append(ZGate(), [q])
    elif error_type == "Y":
        for q in qubits:
            qc.append(YGate(), [q])
    elif error_type == "CZ":
        qc.append(CZGate(), qubits)
    elif error_type == "Depolarizing":
        for q in qubits:
            qc.append(XGate(), [q])
            qc.append(YGate(), [q])
            qc.append(ZGate(), [q])
    qc.barrier()

# Build the main circuit
def build_circuit(use_twistor, error_type):
    qc = QuantumCircuit(qr, cr)

    # Initialize teleportee
    qc.h(qr[0])
    qc.barrier()

    # Bell pair creation
    qc.h(qr[1])
    qc. cx(qr[1], qr[2])
    qc.barrier()

    #  Twistor encoding
    if use_twistor:
        twistor_encoding(qc, [qr[1], qr[2]])

    # Teleportation protocol
    qc. cx(qr[0], qr[1])
    qc.h(qr[0])
    qc.barrier()

    # Inject error
    inject_errors(qc, error_type, [qr[0], qr[1]])

    # Measure
    qc.measure(qr[0], cr[0])
    qc.measure(qr[1], cr[1])
    qc.barrier()

    return qc

# Run
def run_experiment(use_twistor, error_type):
    label = f"{error_type}({'Twistor' if use_twistor else 'Flat'})"
    logger. info(f"Running {label}")

    circuit = build_circuit(use_twistor, error_type)
    transpiled_qc = transpile(circuit, backend=backend, optimization_level=3)

    with Session(service=service, backend=backend) as session:
        sampler = SamplerV2(session=session)
        job = sampler. run([transpiled_qc], shots=8192)
        job_result = job.result()
        data_bin = job_result._pub_results[0]['__value__']['data']
        classical_register = transpiled_qc.cregs[0].name
        counts = data_bin[classical_register].get_counts() if classical_register in data_bin else {}

    # Visual
    plot_histogram(counts)
    plt.title(label)
    plt. show()

    return {
        "error_type": label,
        "raw_counts": counts
    }

# Main loop
all_results = []
error_types = ["X", "Z", "Y", "CZ", "Depolarizing"]

for err in error_types:
    result_twistor = run_experiment(use_twistor=True, error_type=err)
    result_flat = run_experiment(use_twistor=False, error_type=err)
    all_results.append(result_twistor)
    all_results.append(result_flat)

# Save all results to a Json
final_path = '/Users/steventippeconnic/Documents/QC/Twistor_Guided_QEP_Mapping_1.json'
with open(final_path, 'w') as f:
    json.dump(all_results, f, indent=4)

print(f"\nAll results saved to {final_path}")

# Fidelity computation
def compute_fidelity(counts):
    total_shots = sum(counts.values())
    correct = counts.get('00', 0) + counts.get('10', 0)
    fidelity = correct / total_shots
    print(f"Fidelity: {fidelity:.5f}")
    return fidelity

# Run both twistor and flat circuits for various errors
error_types = ["X", "Z", "Y", "CZ", "depolarizing"]
for i, err in enumerate(error_types):
    counts_twistor = run_experiment(use_twistor=True, error_type=err, run_id=f"{i}_T")
    counts_flat = run_experiment(use_twistor=False, error_type=err, run_id=f"{i}_F")

    print(f"\n[{err}] Twistor Circuit Fidelity:")
    compute_fidelity(counts_twistor)

    print(f"[{err}] Flat Circuit Fidelity:")
    compute_fidelity(counts_flat)

# End

/////////////////////////////////////////////////////////////////

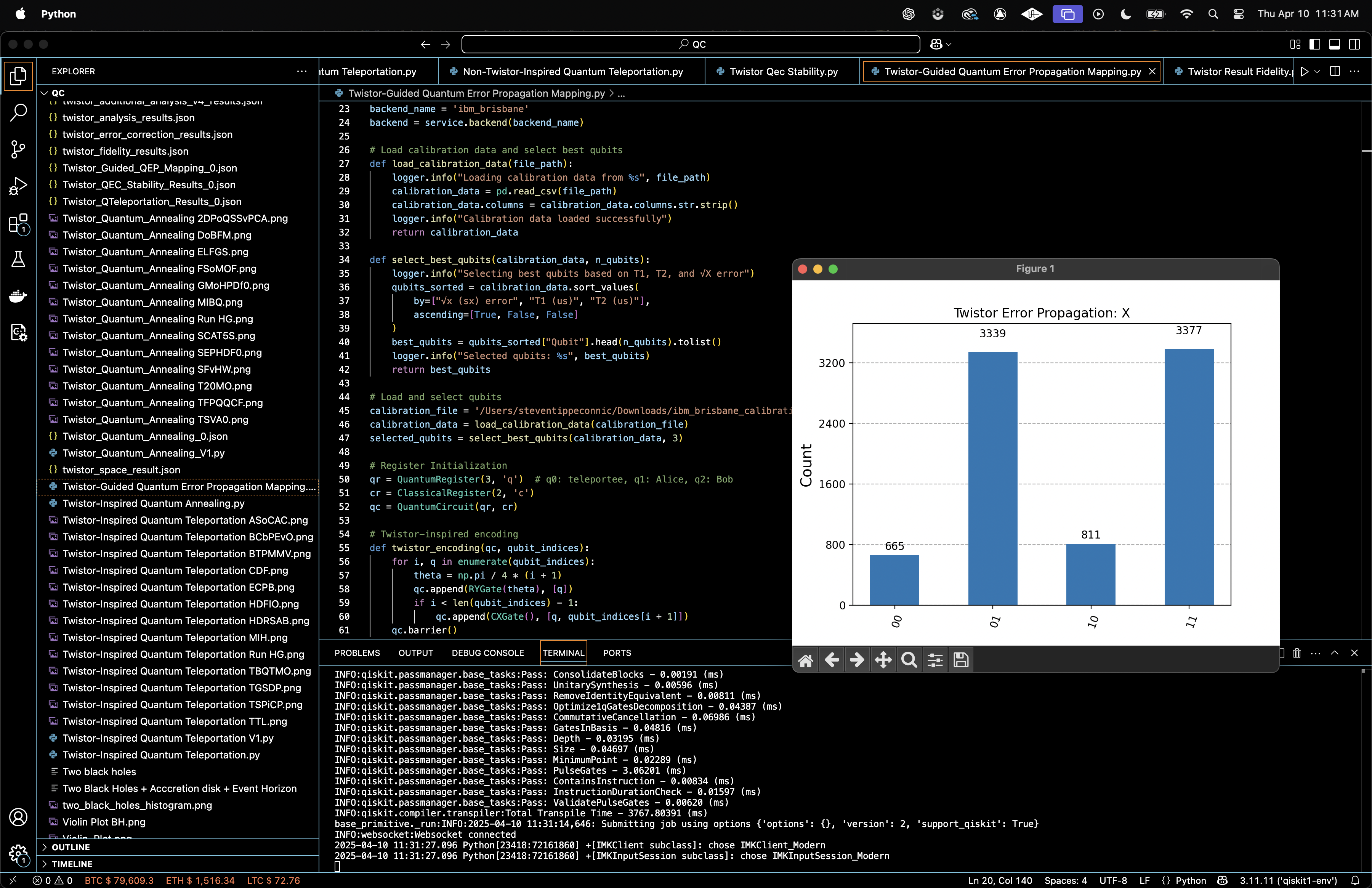

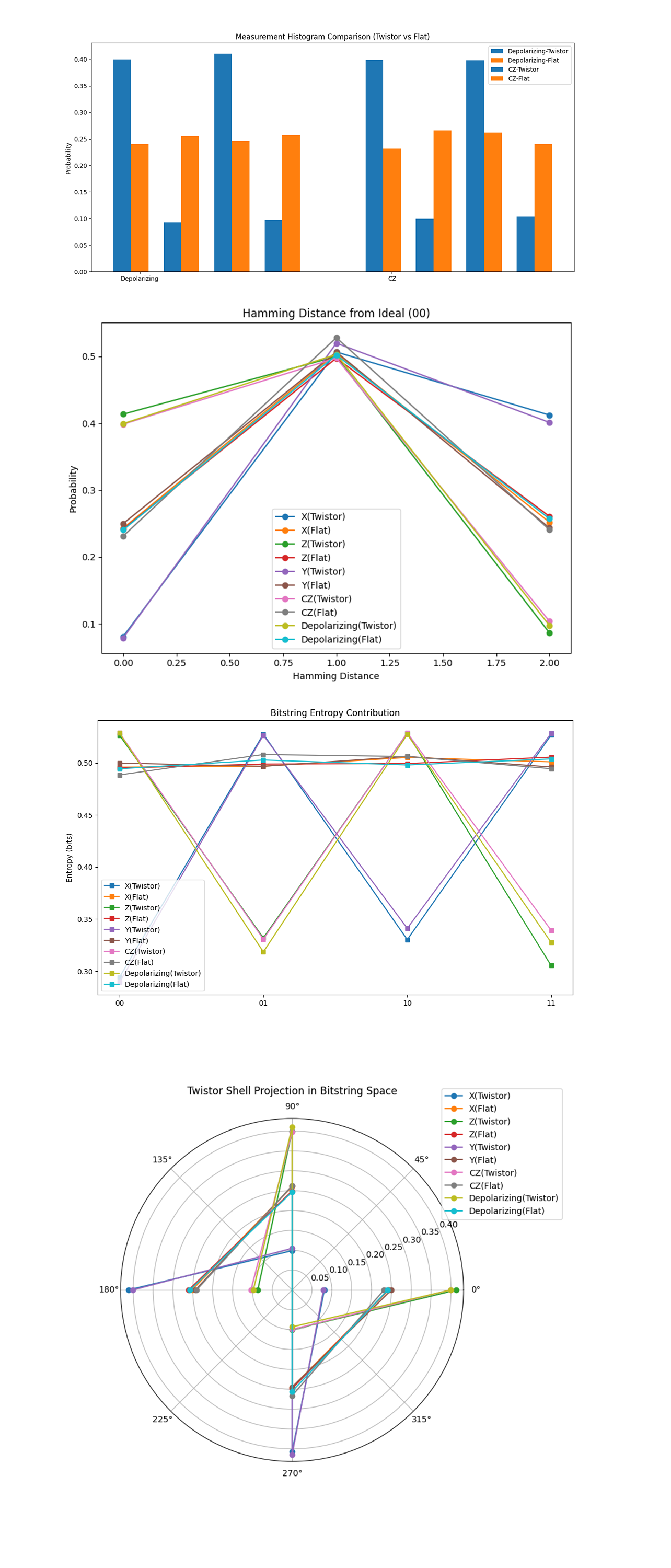

Code for All Visuals From Run Data
import json
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
from collections import defaultdict
from math import log2
from itertools import product
from math import sqrt

# Load data from run JSON
file_path = '/Users/steventippeconnic/Documents/QC/Twistor_Guided_QEP_Mapping_0.json'
with open(file_path, 'r') as f:
    data_dicts = json.load(f)

bitstrings = ['00', '01', '10', '11']

# Normalize counts
def normalize(counts):
    total = sum(counts.values())
    return {k: v / total for k, v in counts.items()}

# Histogram Comparison (Depolarizing & CZ)
fig1, ax1 = plt.subplots(figsize=(12, 6))
colors = ['#1f77b4', '#ff7f0e']
bit_labels = ['00', '01', '10', '11']
bar_width = 0.35
x_positions = np.arange(len(bit_labels))

for i, error_type in enumerate(['Depolarizing', 'CZ']):
    for j, variant in enumerate(['Twistor', 'Flat']):
        for d in data_dicts:
            if d['error_type'] == f"{error_type}({variant})":
                counts = normalize(d['raw_counts'])
                bar_offset = j * bar_width
                x_offset = i * (len(bit_labels) + 1)
                xs = x_positions + bar_offset + x_offset
                ys = [counts.get(k, 0) for k in bit_labels]
                ax1.bar(xs, ys, width=bar_width, label=f"{error_type}-{variant}", color=colors[j])

ax1.set_xticks([(i * (len(bit_labels) + 1)) + 0.35 for i in range(2)])
ax1.set_xticklabels(['Depolarizing', 'CZ'])
ax1.set_ylabel('Probability')
ax1.set_title("Measurement Histogram Comparison (Twistor vs Flat)")
ax1.legend()
plt.tight_layout()
plt.show()

# Hamming Distance Distribution
def hamming_dist(s1, s2='00'):
    return sum(a != b for a, b in zip(s1, s2))

fig2, ax2 = plt.subplots(figsize=(8, 6))
for d in data_dicts:
    label = d['error_type']
    dist = defaultdict(int)
    for k, v in d['raw_counts'].items():
        dist[hamming_dist(k)] += v
    total = sum(dist.values())
    xs = sorted(dist.keys())
    ys = [dist[k] / total for k in xs]
    ax2.plot(xs, ys, marker='o', label=label)
ax2.set_title("Hamming Distance from Ideal (00)")
ax2.set_xlabel("Hamming Distance")
ax2.set_ylabel("Probability")
ax2.legend()
plt.tight_layout()
plt.show()

# Bitstring Entropy Contribution
fig3, ax3 = plt.subplots(figsize=(10, 6))
for d in data_dicts:
    label = d['error_type']
    counts = normalize(d['raw_counts'])
    entropies = {k: -p * log2(p) if p > 0 else 0 for k, p in counts.items()}
    ax3.plot(list(entropies.keys()), list(entropies.values()), marker='s', label=label)
ax3.set_title("Bitstring Entropy Contribution")
ax3.set_ylabel("Entropy (bits)")
ax3.legend()
plt.tight_layout()
plt.show()

# Twistor Shell Polar Projection
fig4 = plt.figure(figsize=(8, 8))
ax4 = fig4.add_subplot(111, polar=True)
bit_angle = {'00': 0, '10': np.pi/2, '11': np.pi, '01': 3*np.pi/2}
for d in data_dicts:
    label = d['error_type']
    counts = normalize(d['raw_counts'])
    angles = [bit_angle[k] for k in counts if k in bit_angle]
    radii = [counts[k] for k in counts if k in bit_angle]
    ax4.plot(angles, radii, marker='o', label=label)
ax4.set_title("Twistor Shell Projection in Bitstring Space", va='bottom')
ax4.legend(loc='upper right', bbox_to_anchor=(1.3, 1.1))
plt.tight_layout()
plt.show()

# Mutual Information Heatmap
def mutual_info(counts):
    probs = normalize(counts)
    px = {'0': 0, '1': 0}
    py = {'0': 0, '1': 0}
    pxy = defaultdict(float)
    for b, p in probs.items():
        px[b[0]] += p
        py[b[1]] += p
        pxy[b] += p
    mi = 0
    for b in bitstrings:
        if pxy[b] > 0:
            mi += pxy[b] * log2(pxy[b] / (px[b[0]] * py[b[1]]))
    return mi

fig1, ax1 = plt.subplots(figsize=(8, 6))
mi_data = []
labels = []
for d in data_dicts:
    labels.append(d['error_type'])
    mi_data.append(mutual_info(d['raw_counts']))
sns.barplot(x=mi_data, y=labels, ax=ax1)
ax1.set_title("Mutual Information between c0 and c1")
ax1.set_xlabel("Mutual Information (bits)")
plt.tight_layout()
plt.show()

# KL Divergence Matrix (Twistor vs Flat)
def kl_divergence(p, q):
    return sum(p[i] * log2(p[i]/q[i]) if p[i] > 0 and q[i] > 0 else 0 for i in range(len(p)))

fig2, ax2 = plt.subplots(figsize=(8, 6))
errors = ['X', 'Y', 'Z', 'CZ', 'Depolarizing']
divs = []
for e in errors:
    p = normalize(next(d for d in data_dicts if d['error_type'] == f"{e}(Twistor)")['raw_counts'])
    q = normalize(next(d for d in data_dicts if d['error_type'] == f"{e}(Flat)")['raw_counts'])
    p_vec = [p.get(b, 0) for b in bitstrings]
    q_vec = [q.get(b, 0) for b in bitstrings]
    divs.append(kl_divergence(p_vec, q_vec))

sns.barplot(x=errors, y=divs, ax=ax2)
ax2.set_title("KL Divergence: Twistor vs Flat")
ax2.set_ylabel("D_KL (bits)")
plt.tight_layout()
plt.show()

# Parity Distribution Plot
def parity(bitstring):
    return 'even' if bitstring.count('1') % 2 == 0 else 'odd'

fig3, ax3 = plt.subplots(figsize=(10, 6))
for d in data_dicts:
    even = 0
    odd = 0
    for b, v in d['raw_counts'].items():
        if parity(b) == 'even':
            even += v
        else:
            odd += v
    total = even + odd
    ax3.bar(d['error_type'], even / total, label='Even', color='#1f77b4')
    ax3.bar(d['error_type'], odd / total, bottom=even / total, label='Odd', color='#ff7f0e')

handles, labels = ax3.get_legend_handles_labels()
ax3.legend(handles[:2], ['Even', 'Odd'])
ax3.set_title("Parity Distribution per Circuit")
ax3.set_ylabel("Probability")
plt.xticks(rotation=45)
plt.tight_layout()
plt.show()

# Bitstring Energy Landscape (Log Probability Potential)
fig4, ax4 = plt.subplots(figsize=(10, 6))
for d in data_dicts:
    label = d['error_type']
    counts = normalize(d['raw_counts'])
    energies = {}
    for b in bitstrings:
        p = counts.get(b, 1e-12)  # avoid log(0)
        energies[b] = -log2(p)
    ax4.plot(list(energies.keys()), list(energies.values()), marker='o', label=label)

ax4.set_title("Bitstring Energy Landscape (−log₂P)")
ax4.set_ylabel("Energy")
ax4.set_xlabel("Bitstring")
ax4.legend()
plt.tight_layout()
plt.show()

# Bitstring Probability Gradient Vectors (ΔP = Twistor - Flat)
fig1, ax1 = plt.subplots(figsize=(10, 6))
for error_type in ['X', 'Y', 'Z', 'CZ', 'Depolarizing']:
    flat = normalize(next(d for d in data_dicts if d['error_type'] == f"{error_type}(Flat)")['raw_counts'])
    twist = normalize(next(d for d in data_dicts if d['error_type'] == f"{error_type}(Twistor)")['raw_counts'])
    delta = [twist.get(b, 0) - flat.get(b, 0) for b in bitstrings]
    ax1.plot(bitstrings, delta, marker='o', label=error_type)

ax1.axhline(0, linestyle='--', color='gray')
ax1.set_ylabel("ΔP (Twistor - Flat)")
ax1.set_title("Bitstring Probability Gradient: Twistor vs Flat")
ax1.legend()
plt.tight_layout()
plt.show()

# Bitstring Pair Correlation Strength Heatmaps (3x2 grid, properly labeled)
fig, axs = plt.subplots(3, 2, figsize=(10, 12))
axs = axs.flatten()

for idx, error_type in enumerate(['X', 'Y', 'Z', 'CZ', 'Depolarizing']):
    twistor_counts = normalize(next(d for d in data_dicts if d['error_type'] == f"{error_type}(Twistor)")['raw_counts'])
    mat = np.zeros((4, 4))
    for i, bi in enumerate(bitstrings):
        for j, bj in enumerate(bitstrings):
            mat[i, j] = np.sqrt(twistor_counts.get(bi, 0) * twistor_counts.get(bj, 0))
    sns.heatmap(mat, ax=axs[idx], xticklabels=bitstrings, yticklabels=bitstrings,
                square=True, cbar=True, cmap='rocket', annot=True, fmt=".2f")
    axs[idx].set_title(f"{error_type}(Twistor)", fontsize=12)
    axs[idx].set_xlabel("Bitstring")
    axs[idx].set_ylabel("Bitstring")

# Hide last subplot if unused
if len(axs) > 5:
    axs[5].axis('off')

fig.suptitle("Pairwise Correlation Strength Between Bitstrings (Twistor Circuits)", fontsize=16, y=0.94)
plt.tight_layout(rect=[0, 0, 1, 0.95])
plt.show()

# Hellinger Distance Heatmap
def hellinger(p, q):
    return sqrt(0.5 * sum((sqrt(p[i]) - sqrt(q[i]))**2 for i in range(len(p))))

fig3, ax3 = plt.subplots(figsize=(8, 6))
hellinger_data = []
for error_type in ['X', 'Y', 'Z', 'CZ', 'Depolarizing']:
    flat = normalize(next(d for d in data_dicts if d['error_type'] == f"{error_type}(Flat)")['raw_counts'])
    twist = normalize(next(d for d in data_dicts if d['error_type'] == f"{error_type}(Twistor)")['raw_counts'])
    p = [twist.get(b, 0) for b in bitstrings]
    q = [flat.get(b, 0) for b in bitstrings]
    h = hellinger(p, q)
    hellinger_data.append((error_type, h))

errors, values = zip(*hellinger_data)
sns.barplot(x=errors, y=values)
ax3.set_title("Hellinger Distance: Twistor vs Flat")
ax3.set_ylabel("Hellinger Distance")
plt.tight_layout()
plt.show()

# Fidelity Projection (bitstring-based contribution)
fig4, ax4 = plt.subplots(figsize=(10, 6))
for error_type in ['X', 'Y', 'Z', 'CZ', 'Depolarizing']:
    for variant in ['Twistor', 'Flat']:
        label = f"{error_type}({variant})"
        counts = normalize(next(d for d in data_dicts if d['error_type'] == label)['raw_counts'])
        fidelity = counts.get('00', 0) + counts.get('10', 0)  # Fidelity ≈ P(00) + P(10)
        values = [counts.get(b, 0) if b in ['00', '10'] else 0 for b in bitstrings]
        ax4.plot(bitstrings, values, marker='o', label=label)
ax4.set_title("Bitstring Contributions to Fidelity")
ax4.set_ylabel("Probability (Fidelity Component)")
ax4.legend()
plt.tight_layout()
plt.show()

# End
