Topological Chimeric Spinor Projection on IBM’s 127‑Qubit Quantum Processor

Code:

# Main circuit
# Imports
import json, logging, pathlib
from math import pi, sqrt
import pandas as pd
from qiskit import QuantumCircuit, QuantumRegister, ClassicalRegister, transpile
from qiskit.quantum_info import Statevector
from qiskit_ibm_runtime import QiskitRuntimeService, SamplerV2
from qiskit.circuit.library import HGate, CXGate
from qiskit.visualization import plot_histogram
import matplotlib.pyplot as plt

# Logging
logging.basicConfig(level=logging. INFO, format="%(levelname)s | %(message)s")
log = logging.getLogger(__name__)

# IBMQ
TOKEN = "YOUR_IBMQ_API_KEY_O-`"
INSTANCE_CRN = "YOUR_IBMQ_CRN"

service = QiskitRuntimeService(
    channel="ibm_cloud",
    token=TOKEN,
    instance=INSTANCE_CRN,
)
backend = service.backend("ibm_sherbrooke")
log. info("Backend: %s", backend. name)

# Select best seven physical qubits from calibration CSV
def pick_best_qubits(csv_path: str, n: int) -> list[int]:
    df = pd. read_csv(csv_path)
    df.columns = df.columns.str.strip()
    ordered = df.sort_values(
        ["√x (sx) error", "T1 (us)", "T2 (us)"],
        ascending=[True, False, False],
    )
    return ordered["Qubit"].head(n).astype(int).tolist()

CAL_FILE = "/Users/steventippeconnic/Downloads/ibm_sherbrooke_calibrations_2025-04-23T16_45_20Z.csv"
PHYSICAL_QUBITS = pick_best_qubits(CAL_FILE, 7)
log .info("Chosen physical qubits: %s", PHYSICAL_QUBITS)

# Build 7 qubit topological spinor circuit
qr = QuantumRegister(7, "q")
cr = ClassicalRegister(7, "c")
qc = QuantumCircuit(qr, cr, name="Topological_Spinor_Projection")

# |ψ_topological⟩ uniform superposition and CX ladder
for q in qr:
    qc.append(HGate(), [q])
for i in range(6):
    qc.append(CXGate(), [qr[i], qr[i + 1]])
qc.barrier()

# Observation map U_obs(θ)
theta = pi / 4
flag  = qr[6]                 # q6 as parity flag
for q in qr[4:6]:             # compute parity(q4,q5) -> q6
    qc. cx(q, flag)
qc.barrier()
for q in qr[:4]:
    qc.crz(+2 * theta, flag, q)
    qc.rz(-2 * theta, q)
for q in reversed(qr[4:6]):   # uncompute parity
    qc. cx(q, flag)
qc.barrier(label="U_obs")

# Measurements
qc.measure(qr, cr)
log. info("Original depth: %s", qc.depth())

# Ideal 7-qubit statevector (strip measurements only)
ideal_sv   = Statevector.from_instruction(qc.remove_final_measurements(inplace=False))
ideal_probs = ideal_sv.probabilities_dict()

# Transpile
trans = transpile(
    qc,
    backend = backend,
    initial_layout = PHYSICAL_QUBITS,
    optimization_level = 3,
)
log. info("Transpiled depth: %s | CX count: %s",
         trans.depth(), trans.count_ops().get("cx", 0))

# Execute with SamplerV2 (shots = 32768)
sampler = SamplerV2(mode=backend)
job     = sampler. run([trans], shots=32768)
result  = job.result()

creg_name = trans.cregs[0].name
counts = result[0].data.__getattribute__(creg_name).get_counts()
shots = sum(counts.values())
log. info("Total shots (collected): %s", shots)

# Classical fidelity  F_cl = (Σ√p_i q_i)^2
def classical_fidelity(exp_counts: dict, ideal: dict, N: int) -> float:
    p_exp = {k: v / N for k, v in exp_counts.items()}
    keys  = set(p_exp) | set(ideal)
    return sum(sqrt(p_exp.get(k, 0) * ideal.get(k, 0)) for k in keys) ** 2

fidelity = classical_fidelity(counts, ideal_probs, shots)
log. info("Classical fidelity ≈ %.4f", fidelity)

# Save results
OUT_PATH = pathlib.Path(
    "/Users/steventippeconnic/Documents/QC/GU_Chimeric_Spinor_Projection_32768_0.json"
)
OUT_PATH.parent.mkdir(parents=True, exist_ok=True)

with open(OUT_PATH, "w") as fp:
    json.dump(
        {
            "experiment_name": "Topological Spinor Projection Test",
            "backend": backend. name,
            "observation_angle_rad": float(theta),
            "physical_qubits": PHYSICAL_QUBITS,
            "raw_counts": counts,
            "classical_fidelity": fidelity,
        },
        fp,
        indent=4,
    )
log. info("Results saved → %s", OUT_PATH)

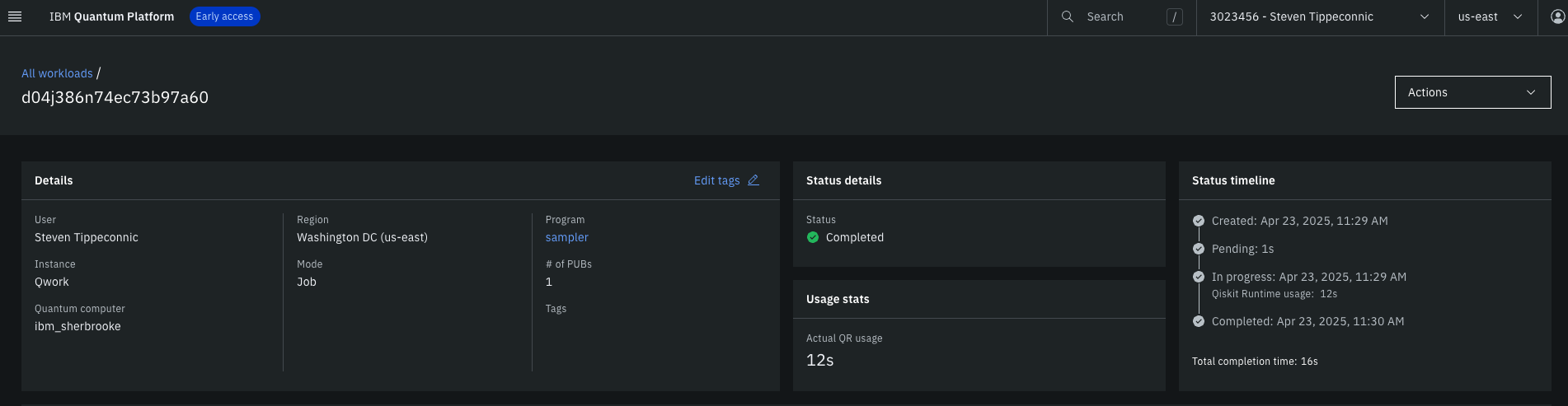

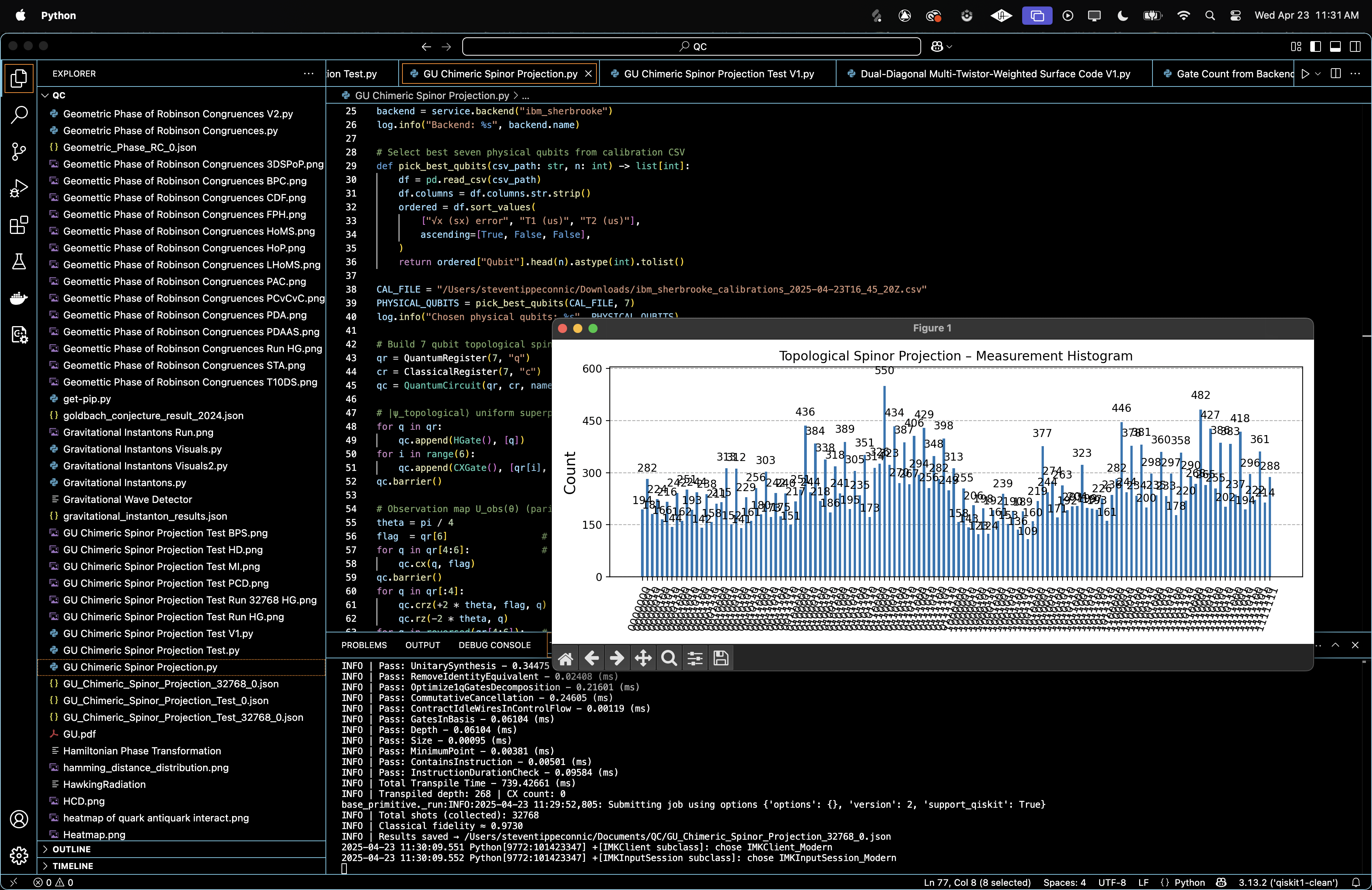

# Histogram
plot_histogram(
    counts,
    title="Topological Spinor Projection – Measurement Histogram",
    figsize=(10, 4),
)
plt.tight_layout()
plt. show()

# End





/////////////////////////////////////////////////////////////////
Code for All Visuals From Run Data

# Imports
import json, math, itertools, pathlib, collections
import numpy as np
import matplotlib.pyplot as plt
from qiskit import QuantumCircuit, QuantumRegister
from qiskit.circuit.library import HGate, CXGate
from qiskit.quantum_info import Statevector

#  Load experimental results
FILE = pathlib.Path(
    "/Users/steventippeconnic/Documents/QC/GU_Chimeric_Spinor_Projection_32768_0.json"
)
with open(FILE) as fp:
    blob = json.load(fp)

counts = blob["raw_counts"]
shots  = sum(counts.values())
theta  = blob["observation_angle_rad"]

# Harmonise key order
keys = [f"{i:07b}" for i in range(128)]
p_exp   = np.array([counts.get(k, 0) / shots for k in keys])
p_ideal = np.full(128, 1/128)
states = [f"{i:07b}" for i in range(128)]
exp_counts = np.array([counts.get(s, 0) for s in states])
exp_probs  = exp_counts / shots
ideal_prob = 1/128
expect     = shots * ideal_prob

# Build ideal probability table
qr = QuantumRegister(7, "q")
qc = QuantumCircuit(qr)

for q in qr:
    qc.append(HGate(), [q])
for i in range(6):
    qc.append(CXGate(), [qr[i], qr[i + 1]])

flag = qr[6]
for q in (qr[4], qr[5]):
    qc.cx(q, flag)
for q in qr[:4]:
    qc.crz(+2 * theta, flag, q)
    qc.rz(-2 * theta, q)
for q in (qr[5], qr[4]):
    qc.cx(q, flag)

ideal_probs = Statevector.from_instruction(qc).probabilities_dict()

# Harmonise key order
keys     = sorted(set(counts) | set(ideal_probs), key=lambda b: int(b, 2))
p_exp    = np.array([counts.get(k, 0) / shots for k in keys])
p_ideal  = np.array([ideal_probs.get(k, 0)      for k in keys])

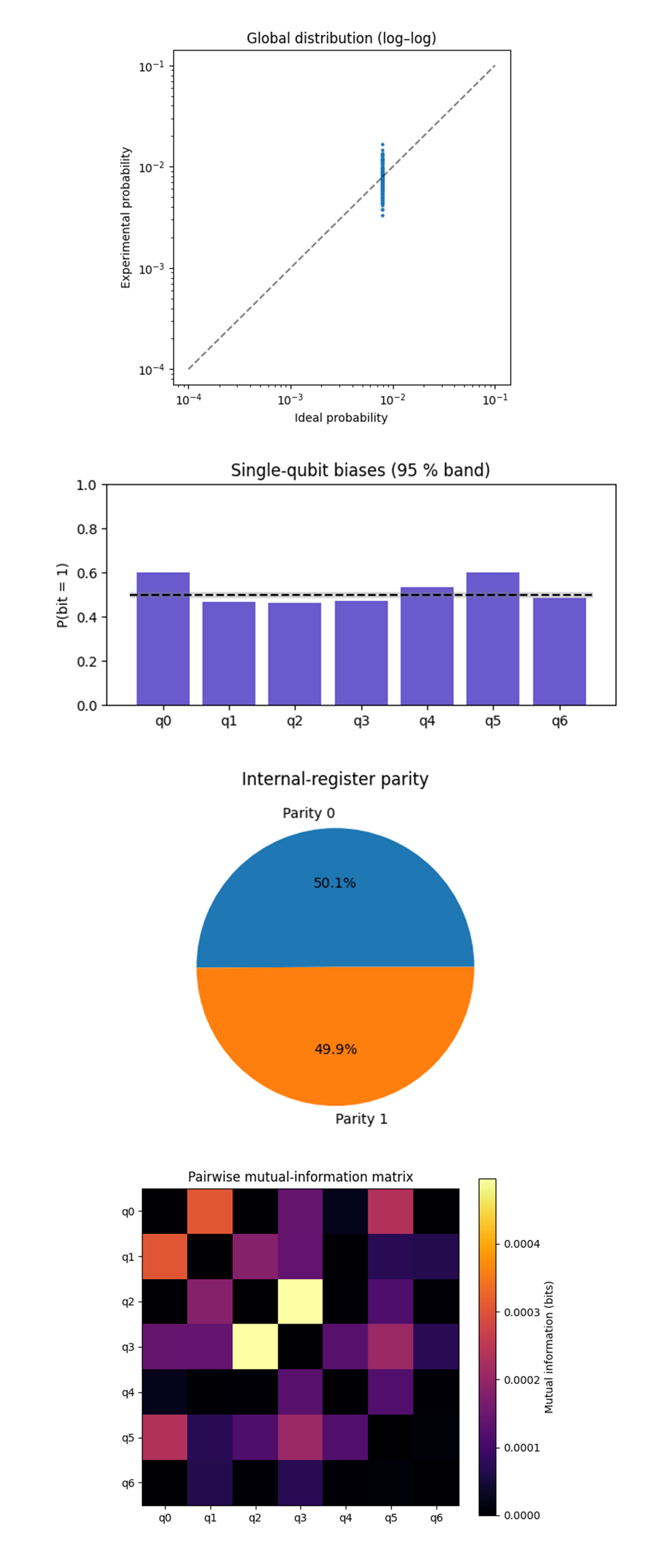

# Global scatter (log–log)
plt.figure(figsize=(5,5))
plt.loglog(p_ideal, p_exp, '.', markersize=4)
plt.plot([1e-4,1e-1],[1e-4,1e-1],'k--',alpha=.5)
plt.xlabel("Ideal probability")
plt.ylabel("Experimental probability")
plt.title("Global distribution (log–log)")
plt.tight_layout()
plt.show()

# Single-qubit bias bars
bias = []
for qi in range(7):
    ones = sum(v for k,v in counts.items() if k[::-1][qi]=='1')
    bias.append(ones / shots)

sigma = 1.96 / math.sqrt(shots)   # 95 % confidence half-width
plt.figure(figsize=(6,3))
plt.bar(range(7), bias, color="slateblue")
plt.hlines(0.5, -0.5, 6.5, colors='k', linestyles='dashed')
plt.fill_between([-0.5,6.5], 0.5-sigma, 0.5+sigma, color='grey', alpha=0.25)
plt.xticks(range(7), [f"q{j}" for j in range(7)])
plt.ylim(0.0,1.0)
plt.ylabel("P(bit = 1)")
plt.title("Single-qubit biases (95 % band)")
plt.tight_layout()
plt.show()

# Internal-parity donut
even = sum(v for k,v in counts.items() if (int(k[1]) ^ int(k[2])) == 0)  # q4,q5 bits
odd  = shots - even
plt.figure(figsize=(4,4))
plt.pie([even, odd], labels=["Parity 0", "Parity 1"],
        autopct=lambda p:f"{p:.1f}%")
plt.title("Internal-register parity")
plt.tight_layout()
plt.show()

# Mutual-information heat-map
def prob_bit(bit,val):
    return sum(v for k,v in counts.items() if int(k[::-1][bit])==val)/shots
def prob_pair(i,j,a,b):
    return sum(v for k,v in counts.items()
               if int(k[::-1][i])==a and int(k[::-1][j])==b)/shots

MI = np.zeros((7,7))
for i,j in itertools.combinations(range(7),2):
    pij = np.zeros((2,2))
    for a,b in itertools.product([0,1],[0,1]):
        pij[a,b] = prob_pair(i,j,a,b)
    pi = pij.sum(axis=1)
    pj = pij.sum(axis=0)
    with np.errstate(divide='ignore', invalid='ignore'):
        info = (pij * np.log2(pij / (pi[:,None]*pj[None,:]))).sum()
    MI[i,j] = MI[j,i] = max(info,0)

plt.figure(figsize=(6,5))
plt.imshow(MI, cmap="inferno", vmin=0, vmax=MI.max())
plt.colorbar(label="Mutual information (bits)")
plt.xticks(range(7), [f"q{j}" for j in range(7)])
plt.yticks(range(7), [f"q{j}" for j in range(7)])
plt.title("Pairwise mutual-information matrix")
plt.tight_layout()
plt.show()

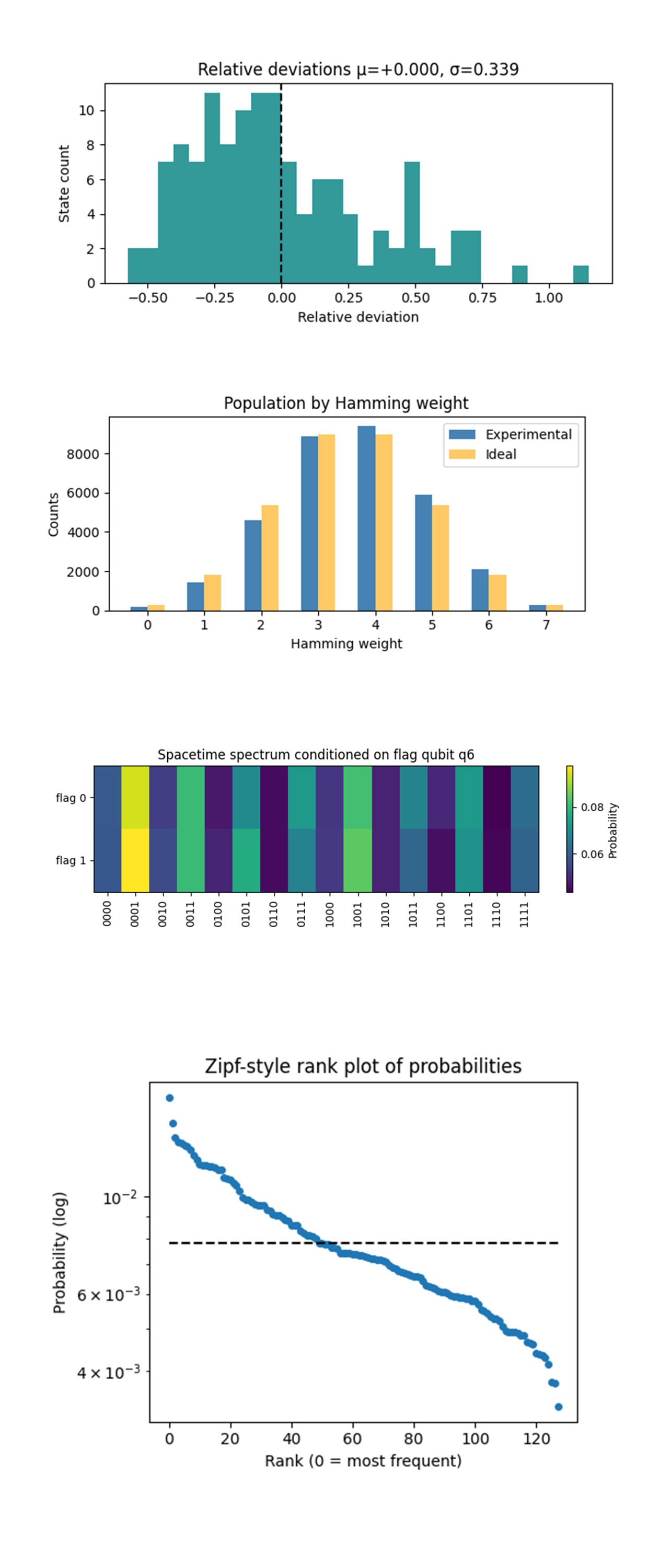

# Relative deviation histogram
rel_dev = (p_exp - p_ideal) / p_ideal   # (p̂ − p*) / p*
plt.figure(figsize=(6,3))
plt.hist(rel_dev, bins=30, color="teal", alpha=0.8)
mu, sigma = rel_dev.mean(), rel_dev.std(ddof=1)
plt.axvline(0, color='k', linestyle='dashed')
plt.xlabel("Relative deviation")
plt.ylabel("State count")
plt.title(f"Relative deviations μ={mu:+.3f}, σ={sigma:.3f}")
plt.tight_layout()
plt.show()

# Hamming-weight population vs ideal
weights = [k.count("1") for k in keys]
exp_weight = collections.Counter({w:0 for w in range(8)})
for k,c in counts.items():
    exp_weight[k.count("1")] += c
ideal_weight = {w: shots * math.comb(7,w)/128 for w in range(8)}

plt.figure(figsize=(6,3))
w_vals = np.arange(8)
plt.bar(w_vals-0.15, [exp_weight[w] for w in w_vals],
        width=0.3, label="Experimental", color="steelblue")
plt.bar(w_vals+0.15, [ideal_weight[w] for w in w_vals],
        width=0.3, label="Ideal", color="orange", alpha=0.6)
plt.xticks(w_vals, [str(w) for w in w_vals])
plt.ylabel("Counts")
plt.xlabel("Hamming weight")
plt.title("Population by Hamming weight")
plt.legend()
plt.tight_layout()
plt.show()

# Conditional spacetime spectrum given flag q6
cond = np.zeros((2, 16))   # rows: flag=0/1, cols: value 0-15
for k,c in counts.items():
    flag = int(k[::-1][6])
    spacetime_bits = k[::-1][:4]         # q0..q3
    value = int(spacetime_bits[::-1], 2)
    cond[flag, value] += c
cond /= cond.sum(axis=1, keepdims=True)

plt.figure(figsize=(8,2.6))
plt.imshow(cond, cmap="viridis", aspect="auto")
plt.colorbar(label="Probability")
plt.xticks(range(16), [f"{v:04b}" for v in range(16)], rotation=90)
plt.yticks([0,1], ["flag 0","flag 1"])
plt.title("Spacetime spectrum conditioned on flag qubit q6")
plt.tight_layout()
plt.show()

# Rank-ordered (Zipf) plot
sorted_p = np.sort(p_exp)[::-1]
plt.figure(figsize=(5,4))
plt.plot(sorted_p, marker='o', linestyle='none', markersize=4)
plt.hlines(1/128, 0, 127, colors='k', linestyles='dashed')
plt.yscale("log")
plt.xlabel("Rank (0 = most frequent)")
plt.ylabel("Probability (log)")
plt.title("Zipf-style rank plot of probabilities")
plt.tight_layout()
plt.show()

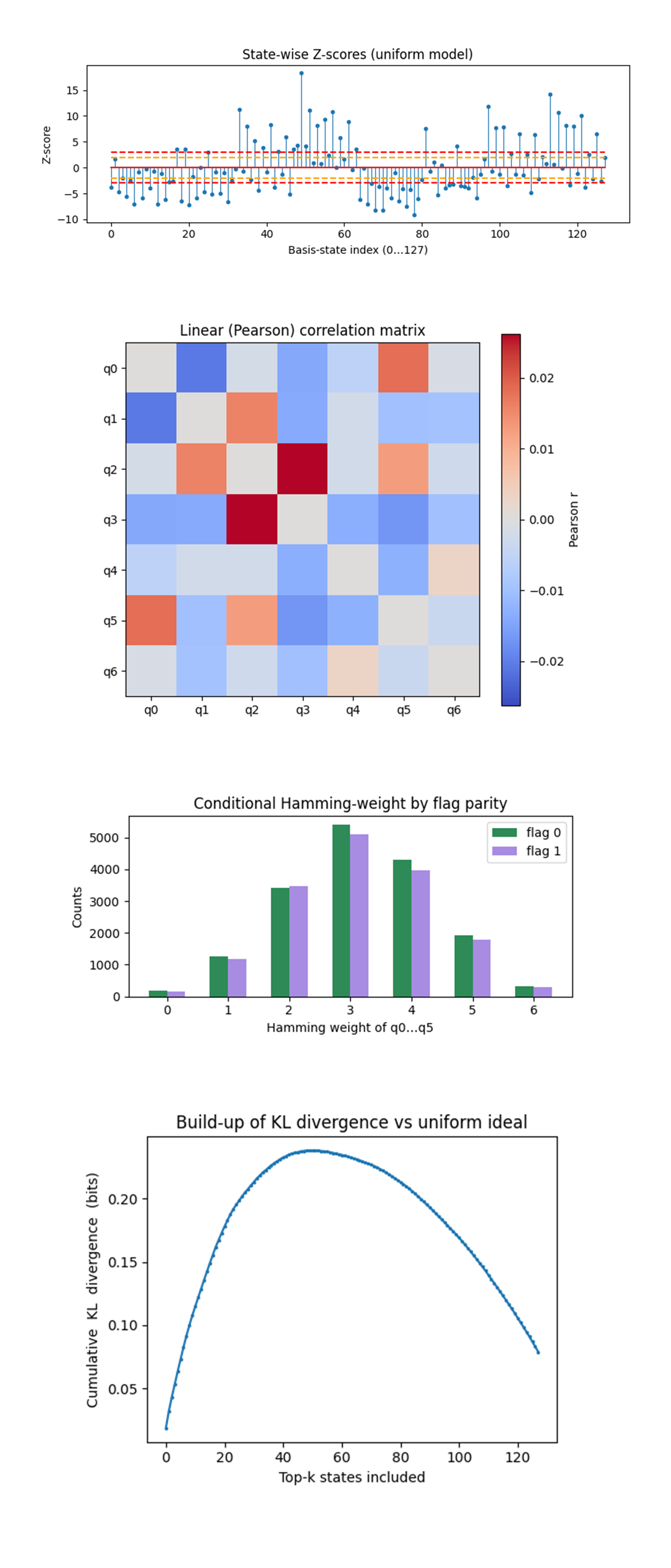

# Z-score stem plot
z = (exp_counts - expect) / math.sqrt(expect)
plt.figure(figsize=(8,3))
markerline, stemlines, _ = plt.stem(range(128), z)   # <- arg removed
plt.setp(markerline, markersize=3)
plt.setp(stemlines, linewidth=0.8)
plt.hlines([2,-2,3,-3], 0, 127,
           colors=['orange','orange','red','red'],
           linestyles='dashed')
plt.xlabel("Basis-state index (0…127)")
plt.ylabel("Z-score")
plt.title("State-wise Z-scores (uniform model)")
plt.tight_layout()
plt.show()

# Pearson correlation matrix
def p_bit(i,val):
    return sum(v for k,v in counts.items() if int(k[::-1][i])==val)/shots
def p_pair(i,j,a,b):
    return sum(v for k,v in counts.items()
               if int(k[::-1][i])==a and int(k[::-1][j])==b)/shots

pi = [p_bit(i,1) for i in range(7)]
corr = np.zeros((7,7))
for i,j in itertools.combinations(range(7),2):
    p11 = p_pair(i,j,1,1)
    cov = p11 - pi[i]*pi[j]
    denom = math.sqrt(pi[i]*(1-pi[i])*pi[j]*(1-pi[j]))
    corr[i,j] = corr[j,i] = cov/denom if denom>0 else 0.0

plt.figure(figsize=(6,5))
plt.imshow(corr, cmap="coolwarm", vmin=-abs(corr).max(), vmax=abs(corr).max())
plt.colorbar(label="Pearson r")
plt.xticks(range(7), [f"q{k}" for k in range(7)])
plt.yticks(range(7), [f"q{k}" for k in range(7)])
plt.title("Linear (Pearson) correlation matrix")
plt.tight_layout()
plt.show()

# Cnditional Hamming-weight (q0…q5) given flag
cond = {0:[0]*7, 1:[0]*7}
for k,v in counts.items():
    flag = int(k[::-1][6])
    w    = sum(int(b) for b in k[::-1][:6])
    cond[flag][w] += v

weights = range(7)
plt.figure(figsize=(6,3))
plt.bar([w-0.15 for w in weights], cond[0], width=0.3,
        label="flag 0", color="seagreen")
plt.bar([w+0.15 for w in weights], cond[1], width=0.3,
        label="flag 1", color="mediumpurple", alpha=0.8)
plt.xticks(weights, [str(w) for w in weights])
plt.xlabel("Hamming weight of q0…q5")
plt.ylabel("Counts")
plt.title("Conditional Hamming-weight by flag parity")
plt.legend()
plt.tight_layout()
plt.show()

# Cumulative KL-divergence curve
sorted_p = np.sort(exp_probs)[::-1]
kl_cum = np.cumsum(sorted_p * np.log2(sorted_p/ideal_prob))
plt.figure(figsize=(5,4))
plt.plot(kl_cum, marker='.', markersize=3)
plt.xlabel("Top-k states included")
plt.ylabel("Cumulative  KL  divergence  (bits)")
plt.title("Build-up of KL divergence vs uniform ideal")
plt.tight_layout()
plt.show()

# End.
