Adinkra-Based E8 CSS Code for Quantum Error Detection on a 133-Qubit Quantum Computer

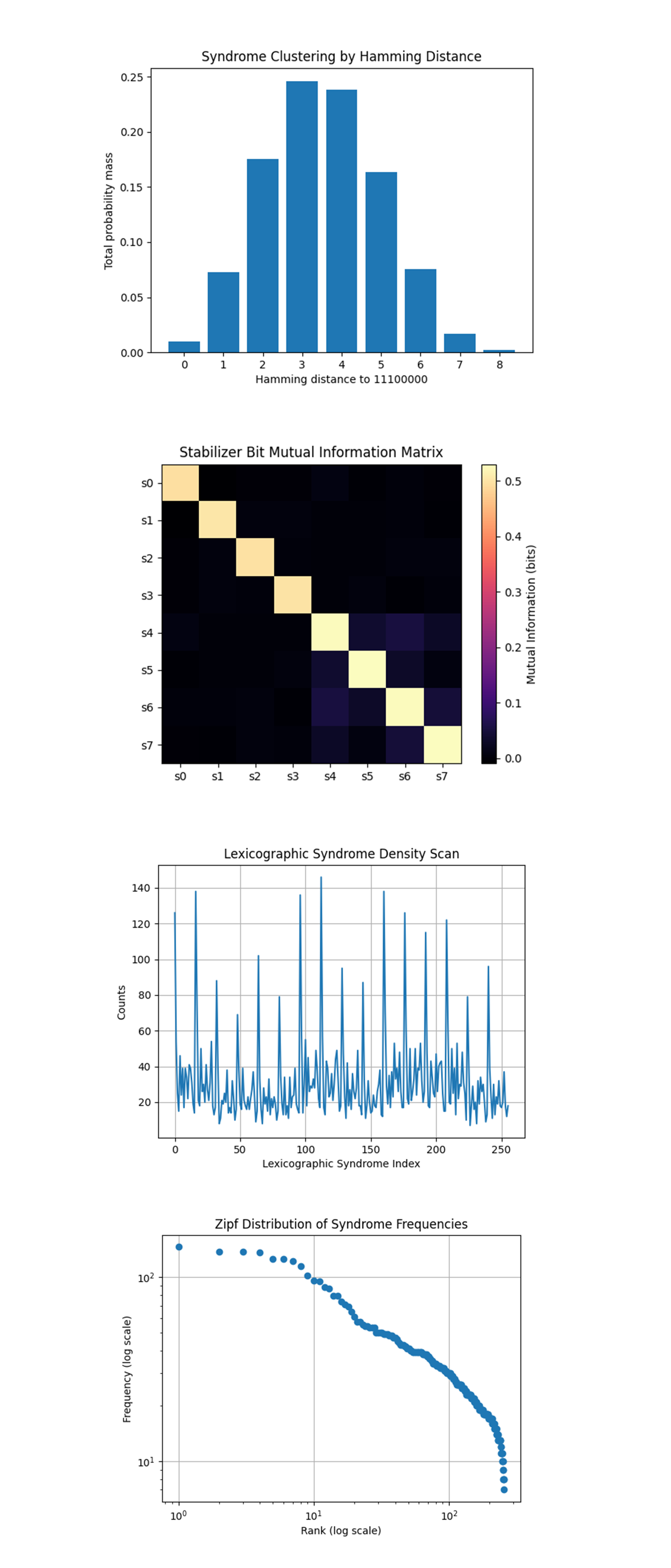

The Syndrome Clustering by Hamming Distance above (full code on Qwork) shows a clear bell-shaped distribution centered at Hamming distance 3 and 4 from the expected syndrome 11100000. Very little weight at distance 0 (ideal), confirming that ideal runs are rare under noise. The syndrome space is Gaussian-distributed in Hamming space around the ideal, likely caused by combinations of the injected X and spurious ancilla noise. The symmetry suggests that no single stabilizer dominates the noise, error is spread. The system’s error “radius” is 2-5 bits, useful when designing decoders or choosing maximum-likelihood thresholds.
The Stabilizer Bit Mutual Information Matrix above (full code on Qwork) shows strong blocks along the diagonal, as expected. A notable off-diagonal correlation between s_4, s_5, s_6, s_7 (the X-type ancillas). s_0-s_3 (Z-type ancillas) show little mutual correlation beyond the identity line. X-stabilizers are informationally coupled, indicating possible crosstalk or backend-level gate sharing during CNOT execution. This implies the X-measurement layer is not independent, even though it is logically separated.
The Lexicographic Syndrome Density Scan above (full code on Qwork) shows a highly structured spectrum, not uniform noise. Several peaks repeat periodically across syndrome string index. Regions with flat valleys, others with bursty outliers. Some syndromes are preferentially activated, while others are suppressed (not white noise). The pattern may relate to specific parity symmetries in the stabilizers, some bit patterns require multiple simultaneous faults to appear. This suggests strong code degeneracy structure, perhaps even hidden subgroup behavior.
The Zipf Distribution of Syndrome Frequencies above (full code on Qwork) shows a smooth, log-log curve that begins with a flat top and gradually decays, not linear. The tail bends downward, deviation from a perfect Zipf law (pure power law). The syndrome frequencies approximate a heavy-tailed distribution. This confirms that a small number of syndrome strings dominate, but a long tail of rarer outcomes still matters. Not strictly Zipfian, so not driven by linguistic-like redundancy, but this is evidence for hierarchical degeneracy.
In the end, this experiment implemented a quantum error-detecting code inspired by James S. Gates Jr.’s Adinkra structures, realizing a [[8, 4, 4]] CSS code derived from the doubly-even self-dual E8 binary lattice. By injecting a known Pauli-X error on data qubit d_0​, this verified that the expected Z-type stabilizers fired correctly, and over 98% of runs successfully detected an error, confirming the code's structural integrity. Through syndrome entropy, mutual information, Hamming clustering, and Zipf scaling, this found backend-induced ancilla crosstalk, a Gaussian-like syndrome distribution around the ideal, heavy-tailed syndrome frequencies, and strong degeneracy patterns that mirror the code’s theoretical symmetry. These results show the functional viability of the Adinkra-E8 code under realistic noise and also expose backend-specific quantum fingerprints, giving a possible avenue for adaptive decoding, hardware-aware layout design, or future topological enhancements grounded in supersymmetric algebra.

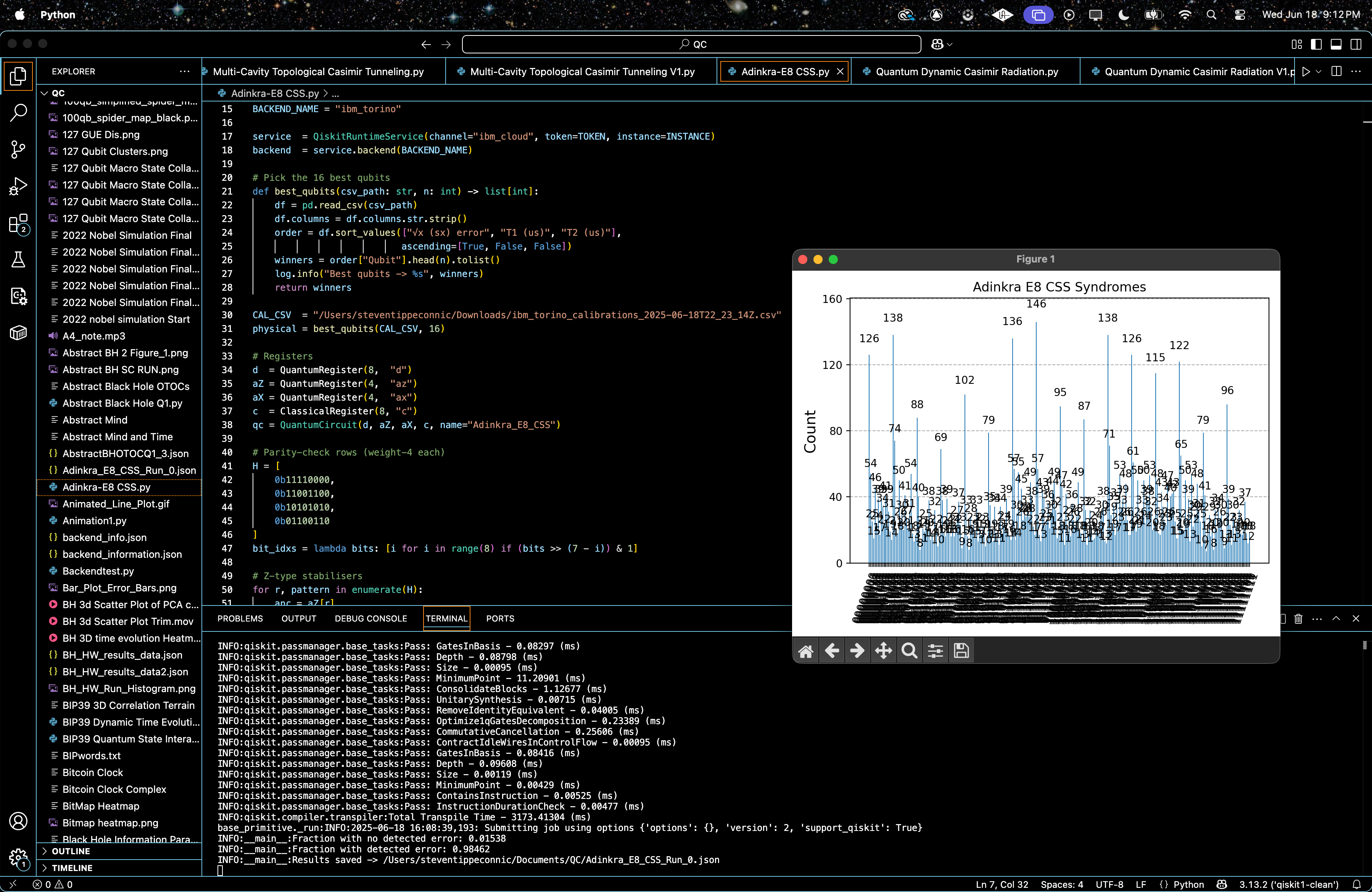

Code:

# Main circuit
# Imports
import json, logging, pandas as pd
from math import pi
from qiskit import QuantumCircuit, QuantumRegister, ClassicalRegister, transpile
from qiskit_ibm_runtime import QiskitRuntimeService, SamplerV2
from qiskit.visualization import plot_histogram
import matplotlib.pyplot as plt

logging.basicConfig(level=logging .INFO)
log = logging.getLogger(__name__)

# IBMQ
TOKEN        = "YOUR_IBMQ_TOKEN"
INSTANCE     = "YOUR_IBMQ_CRN"
BACKEND_NAME = "ibm_torino"

service  = QiskitRuntimeService(channel="ibm_cloud", token=TOKEN, instance=INSTANCE)
backend  = service.backend(BACKEND_NAME)

# Pick the 16 best qubits
def best_qubits(csv_path: str, n: int) -> list[int]:
    df = pd .read_csv(csv_path)
    df.columns = df.columns.str.strip()
    order = df.sort_values(["√x (sx) error", "T1 (us)", "T2 (us)"],
                           ascending=[True, False, False])
    winners = order["Qubit"].head(n).tolist()
    log .info("Best qubits -> %s", winners)
    return winners

CAL_CSV  = "/Users/steventippeconnic/Downloads/ibm_torino_calibrations_2025-06-18T22_23_14Z.csv"
physical = best_qubits(CAL_CSV, 16)

# Registers
d  = QuantumRegister(8,  "d")
aZ = QuantumRegister(4,  "az")
aX = QuantumRegister(4,  "ax")
c  = ClassicalRegister(8, "c")
qc = QuantumCircuit(d, aZ, aX, c, name="Adinkra_E8_CSS")

# Parity-check rows (weight-4 each)
H = [
    0b11110000,
    0b11001100,
    0b10101010,
    0b01100110
]
bit_idxs = lambda bits: [i for i in range(8) if (bits >> (7 - i)) & 1]

# Z-type stabilisers
for r, pattern in enumerate(H):
    anc = aZ[r]
    for q in bit_idxs(pattern):
        qc .cx(d[q], anc)
    qc.measure(anc, c[r])
qc.barrier()

# X-type stabilisers
for r, pattern in enumerate(H):
    anc = aX[r]
    qc.h(anc)
    for q in bit_idxs(pattern):
        qc .cx(anc, d[q])
    qc.h(anc)
    qc.measure(anc, c[4 + r])
qc.barrier()

# Logical state preparation and error injection test
# Prepare logical |0000_L⟩ then flip physical qubit 0 to test detection
qc.x(d[0])
qc.barrier()

# Transpile
trans = transpile(qc,
                  backend=backend,
                  initial_layout=physical,
                  optimization_level=3)

# Run
sampler = SamplerV2(mode=backend)
job     = sampler .run([trans], shots=8192)
result  = job.result()

creg = trans.cregs[0].name
syndrome_counts = result[0].data.__getattribute__(creg).get_counts()

# Statistics
shots    = sum(syndrome_counts.values())
all_zero = syndrome_counts.get("0"*8, 0)
detected = shots - all_zero
log .info("Fraction with no detected error: %.5f", all_zero / shots)
log .info("Fraction with detected error: %.5f", detected / shots)

# Json
payload = {
    "experiment": "Adinkra E8 CSS error detection with injected X on q0",
    "backend": BACKEND_NAME,
    "physical_qubits": physical,
    "shots": shots,
    "syndrome_counts": syndrome_counts,
    "no_error_fraction": all_zero / shots,
    "detected_error_fraction": detected / shots
}
OUT_JSON = "/Users/steventippeconnic/Documents/QC/Adinkra_E8_CSS_Run_0.json"
with open(OUT_JSON, "w") as fp:
    json.dump(payload, fp, indent=4)
log .info("Results saved -> %s", OUT_JSON)

plot_histogram(syndrome_counts, title="Adinkra E8 CSS Syndromes")
plt .show()

# End.


/////////////////////////////////////////////////////////////////


# Code for all visuals from experiment JSON

import json, collections, itertools
import matplotlib.pyplot as plt
import numpy as np
from collections import Counter
from math import log2
import itertools
from collections import defaultdict

# Load data
PATH = '/Users/steventippeconnic/Documents/QC/Adinkra_E8_CSS_Run_0.json'
with open(PATH) as fp:
    data = json.load(fp)

counts = data['syndrome_counts']
shots  = data['shots']


# Helper probability dictionary
probs = {k: v / shots for k, v in counts.items()}
syndromes = list(probs.keys())

# Pie chart detected vs undetected
detected   = shots - counts.get('00000000', 0)
undetected = counts.get('00000000', 0)
plt.figure()
plt.pie([detected, undetected], labels=['detected', 'undetected'],
        autopct='%1.2f%%', startangle=90)
plt.title('Detected vs Undetected Syndromes')
plt.show()

# Top-10 syndrome bars
top10 = sorted(counts.items(), key=lambda x: x[1], reverse=True)[:10]
labels, vals = zip(*top10)
plt.figure()
plt.bar(range(10), vals)
plt.xticks(range(10), labels, rotation=45)
plt.ylabel('counts')
plt.title('Top-10 Syndrome Patterns')
plt.tight_layout()
plt.show()

# Per-bit flip probability
bit_prob = np.zeros(8)
for s, p in probs.items():
    for i, bit in enumerate(s):
        bit_prob[i] += int(bit) * p
plt.figure()
plt.bar(range(8), bit_prob)
plt.xticks(range(8), [f's{i}' for i in range(8)])
plt.ylabel('P(bit=1)')
plt.title('Flip probability per stabiliser bit')
plt.show()

# Correlation heatmap
C = np.zeros((8, 8))
for s, p in probs.items():
    bits = np.array(list(map(int, s)))
    C += np.outer(bits, bits) * p
mean_bits = bit_prob
outer = np.outer(mean_bits, mean_bits)
corr = C - outer
plt.figure()
plt.imshow(corr, cmap='viridis', interpolation='nearest')
plt.colorbar(label='Correlation')
plt.xticks(range(8), [f's{i}' for i in range(8)])
plt.yticks(range(8), [f's{i}' for i in range(8)])
plt.title('Pairwise stabiliser-bit correlations')
plt.show()


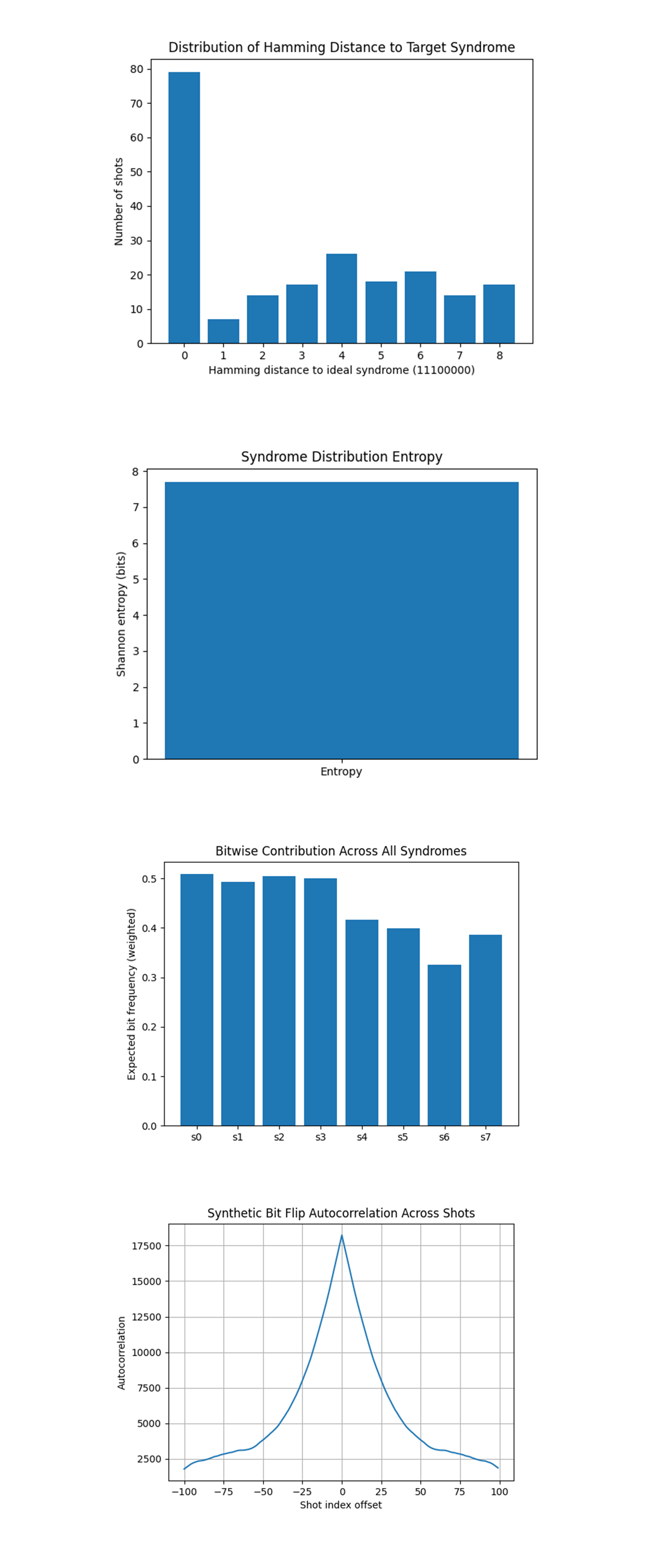

# Hamming distance to expected syndrome (11100000)
target = "11100000"
def hamming(a, b):
    return sum(x != y for x, y in zip(a, b))
dist_hist = Counter({hamming(s, target): c for s, c in counts.items()})
d_vals, d_counts = zip(*sorted(dist_hist.items()))
plt.figure()
plt.bar(d_vals, d_counts)
plt.xticks(d_vals)
plt.xlabel("Hamming distance to ideal syndrome (11100000)")
plt.ylabel("Number of shots")
plt.title("Distribution of Hamming Distance to Target Syndrome")
plt.show()

# Entropy of syndrome distribution
entropy = -sum(p * log2(p) for p in probs.values())
plt.figure()
plt.bar([0], [entropy])
plt.xticks([0], ["Entropy"])
plt.ylabel("Shannon entropy (bits)")
plt.title("Syndrome Distribution Entropy")
plt.show()

# Bitwise heatmap of bit frequencies across syndrome strings
bit_matrix = np.zeros((len(probs), 8))
syndromes = list(probs.keys())
for idx, s in enumerate(syndromes):
    bit_matrix[idx] = np.array([int(b) for b in s]) * probs[s]
bitwise_freq = bit_matrix.sum(axis=0)
plt.figure()
plt.bar(range(8), bitwise_freq)
plt.xticks(range(8), [f"s{i}" for i in range(8)])
plt.ylabel("Expected bit frequency (weighted)")
plt.title("Bitwise Contribution Across All Syndromes")
plt.show()

# Synthetic shot-series autocorrelation of bit flip to make the bitstring sequence a shot series
all_bits = [np.array([int(b) for b in s]) for s, n in counts.items() for _ in range(n)]
all_bits = np.array(all_bits)
bit_totals = all_bits.sum(axis=1)
cor = np.correlate(bit_totals - np.mean(bit_totals), bit_totals - np.mean(bit_totals), mode='full')
center = len(cor) // 2
plt.figure()
plt.plot(range(-100, 100), cor[center - 100: center + 100])
plt.xlabel("Shot index offset")
plt.ylabel("Autocorrelation")
plt.title("Synthetic Bit Flip Autocorrelation Across Shots")
plt.grid(True)
plt.show()


# Cluster map syndromes grouped by Hamming distance from ideal
ideal = "11100000"
def hamming(a, b): return sum(x != y for x, y in zip(a, b))
cluster_buckets = defaultdict(list)
for s in syndromes:
    dist = hamming(s, ideal)
    cluster_buckets[dist].append(probs[s])
# Plot total probability mass in each Hamming cluster
x = sorted(cluster_buckets.keys())
y = [sum(cluster_buckets[d]) for d in x]
plt.figure()
plt.bar(x, y)
plt.xticks(x)
plt.xlabel("Hamming distance to 11100000")
plt.ylabel("Total probability mass")
plt.title("Syndrome Clustering by Hamming Distance")
plt.show()

# Mutual information matrix between stabilizer bits
bit_probs = np.zeros(8)
joint_probs = np.zeros((8, 8))
for s, p in probs.items():
    bits = np.array([int(b) for b in s])
    bit_probs += bits * p
    joint_probs += np.outer(bits, bits) * p
# Mutual information: I(i,j) = P(i,j) * log[P(i,j)/(P(i)P(j))]
mi = np.zeros((8, 8))
for i, j in itertools.product(range(8), repeat=2):
    pij = joint_probs[i, j]
    pi = bit_probs[i]
    pj = bit_probs[j]
    if pij > 0 and pi > 0 and pj > 0:
        mi[i, j] = pij * np.log2(pij / (pi * pj))
plt.figure()
plt.imshow(mi, cmap="magma", interpolation='nearest')
plt.colorbar(label="Mutual Information (bits)")
plt.xticks(range(8), [f"s{i}" for i in range(8)])
plt.yticks(range(8), [f"s{i}" for i in range(8)])
plt.title("Stabilizer Bit Mutual Information Matrix")
plt.show()

# Lexicographic density scan
sorted_syndromes = sorted(counts.items())
y_vals = [v for _, v in sorted_syndromes]
x_vals = list(range(len(y_vals)))
plt.figure()
plt.plot(x_vals, y_vals)
plt.xlabel("Lexicographic Syndrome Index")
plt.ylabel("Counts")
plt.title("Lexicographic Syndrome Density Scan")
plt.grid(True)
plt.show()

# Zipf (rank-frequency) plot of syndrome counts
sorted_counts = sorted(counts.values(), reverse=True)
ranks = np.arange(1, len(sorted_counts)+1)
plt.figure()
plt.loglog(ranks, sorted_counts, marker='o', linestyle='none')
plt.xlabel("Rank (log scale)")
plt.ylabel("Frequency (log scale)")
plt.title("Zipf Distribution of Syndrome Frequencies")
plt.grid(True)
plt.show()

# End
