Noise Modifications for 'Breaking a 5-Bit Elliptic Curve Key'

Code:

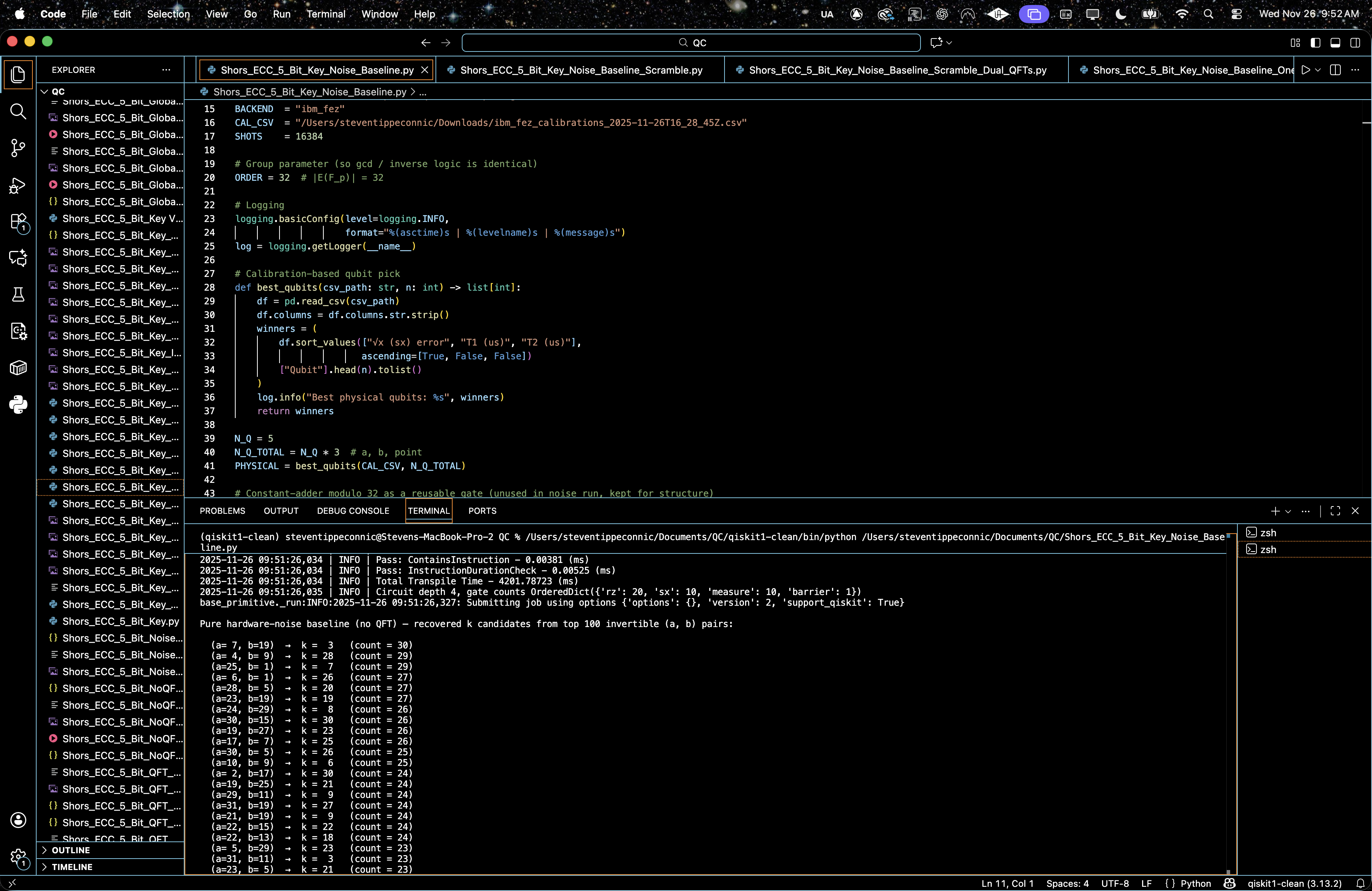

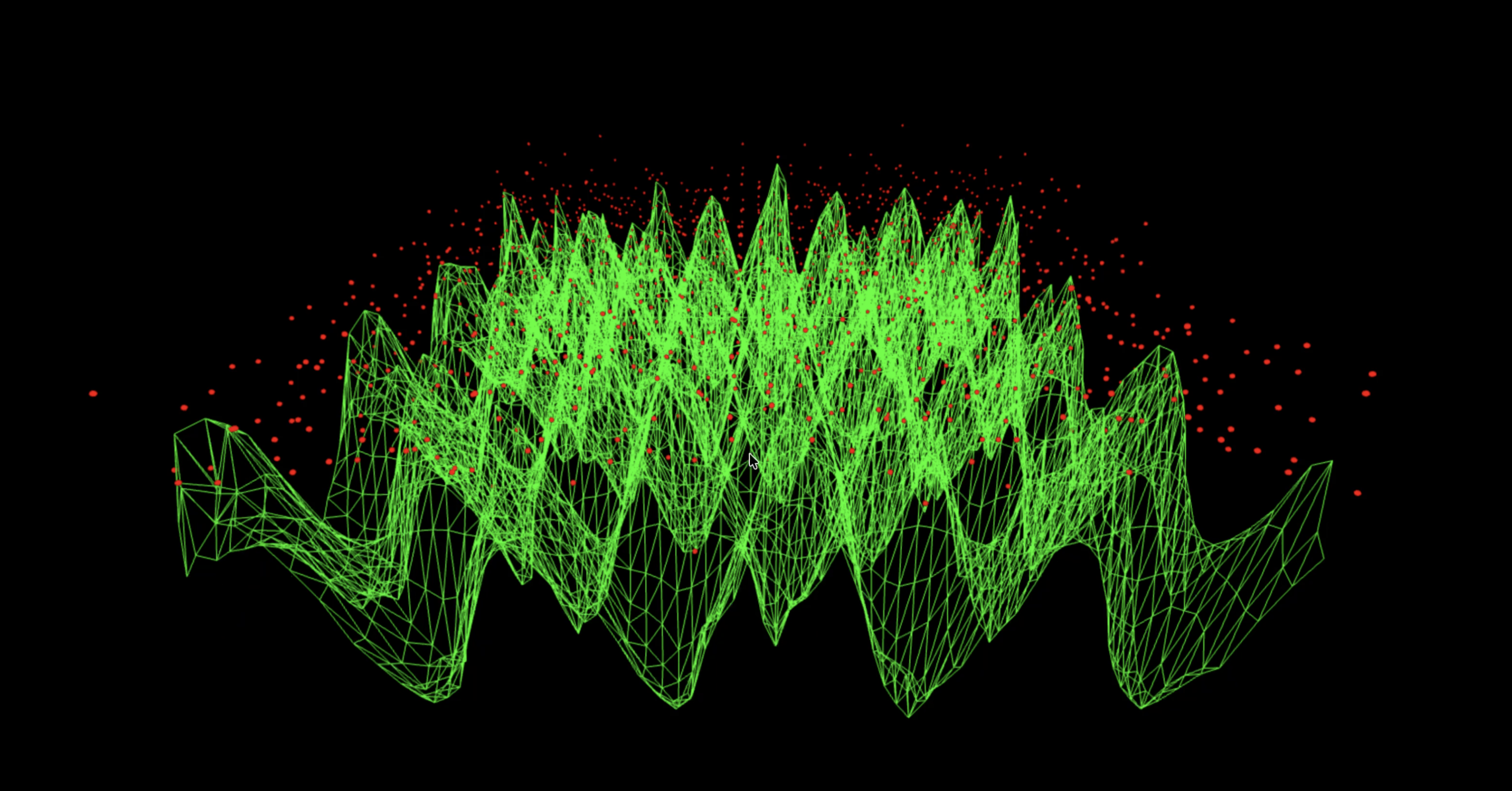

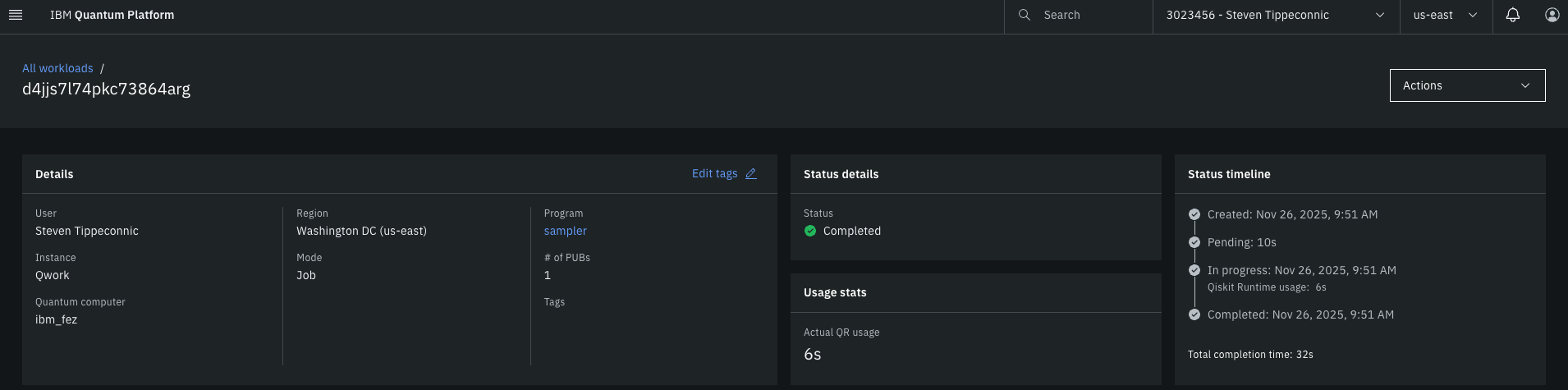

# No-QFT Pure Hardware Noise (Baseline Run)
# Imports
import logging, json
from math import gcd
import numpy as np
from qiskit import QuantumCircuit, QuantumRegister, ClassicalRegister, transpile
from qiskit.circuit.library import UnitaryGate
from qiskit_ibm_runtime import QiskitRuntimeService, SamplerV2
import pandas as pd

# IBMQ
TOKEN = ""
INSTANCE = ""
BACKEND  = "ibm_fez"
CAL_CSV  = "/Users/steventippeconnic/Downloads/ibm_fez_calibrations_2025-11-22T03_35_21Z.csv"
SHOTS    = 16384

# Group parameter (so gcd / inverse logic is identical)
ORDER = 32  # |E(F_p)| = 32

# Logging
logging.basicConfig(level=logging.INFO,
                    format="%(asctime)s | %(levelname)s | %(message)s")
log = logging.getLogger(__name__)

# Calibration-based qubit pick
def best_qubits(csv_path: str, n: int) -> list[int]:
    df = pd.read_csv(csv_path)
    df.columns = df.columns.str.strip()
    winners = (
        df.sort_values(["√x (sx) error", "T1 (us)", "T2 (us)"],
                       ascending=[True, False, False])
        ["Qubit"].head(n).tolist()
    )
    log.info("Best physical qubits: %s", winners)
    return winners

N_Q = 5
N_Q_TOTAL = N_Q * 3  # a, b, point
PHYSICAL = best_qubits(CAL_CSV, N_Q_TOTAL)

# Constant-adder modulo 32 as a reusable gate (unused in noise run, kept for structure)
def add_const_mod32_gate(c: int) -> UnitaryGate:
    """Return a 5-qubit gate that maps |x⟩ ↦ |x+c (mod 32)⟩."""
    mat = np.zeros((32, 32))
    for x in range(32):
        mat[(x + c) % 32, x] = 1
    return UnitaryGate(mat, label=f"+{c}")

ADDERS = {c: add_const_mod32_gate(c) for c in range(1, 32)}

def controlled_add(qc: QuantumCircuit, ctrl_qubit, point_reg, constant):
    """Apply |x⟩ → |x+constant (mod 32)⟩ controlled by one qubit."""
    qc.append(ADDERS[constant].control(), [ctrl_qubit, *point_reg])

# Noise oracle same call site, but no operation
def ecdlp_oracle(qc, a_reg, b_reg, point_reg):
    # No-op oracle for pure hardware noise.
    return

# Build the full noise circuit with NO QFT (pure hardware noise baseline)
def shor_ecdlp_noise_noqft_circuit() -> QuantumCircuit:
    a = QuantumRegister(N_Q, "a")
    b = QuantumRegister(N_Q, "b")
    p = QuantumRegister(N_Q, "p")
    c = ClassicalRegister(N_Q * 2, "c")
    qc = QuantumCircuit(a, b, p, c, name="ECDLP_32pts_noise_noqft")

    # Put a and b into superposition
    qc.h(a)
    qc.h(b)

    # Oracle call (no-op)
    ecdlp_oracle(qc, a, b, p)
    qc.barrier()

    # Directly measure a and b in the computational basis
    qc.measure(a, c[:N_Q])
    qc.measure(b, c[N_Q:])

    return qc

# IBM Runtime
service = QiskitRuntimeService(channel="ibm_cloud",
                               token=TOKEN,
                               instance=INSTANCE)
backend = service.backend(BACKEND)
log.info("Backend → %s", backend.name)

qc_raw = shor_ecdlp_noise_noqft_circuit()
trans = transpile(qc_raw,
                  backend=backend,
                  initial_layout=PHYSICAL,
                  optimization_level=3)
log.info("Circuit depth %d, gate counts %s", trans.depth(), trans.count_ops())

sampler = SamplerV2(mode=backend)
job = sampler.run([trans], shots=SHOTS)
result = job.result()

# Classical post-processing
creg_name = trans.cregs[0].name
counts_raw = result[0].data.__getattribute__(creg_name).get_counts()

def bits_to_int(bs):
    return int(bs[::-1], 2)

# Map bitstrings to (a, b) pairs exactly as in the real run
counts = {(bits_to_int(k[N_Q:]), bits_to_int(k[:N_Q])): v
          for k, v in counts_raw.items()}
top = sorted(counts.items(), key=lambda kv: kv[1], reverse=True)

# Same invertible-b scan, now interpreted as a pure hardware-noise baseline
top_invertibles = []
for (a_val, b_val), freq in top:
    if gcd(b_val, ORDER) != 1:
        continue
    inv_b = pow(b_val, -1, ORDER)
    k_candidate = (-a_val * inv_b) % ORDER
    top_invertibles.append(((a_val, b_val), k_candidate, freq))
    if len(top_invertibles) == 100:
        break

print(
    "\nPure hardware-noise baseline (no QFT) — recovered k candidates "
    "from top 100 invertible (a, b) pairs:\n"
)
for (a, b), k, count in top_invertibles:
    print(f"  (a={a:2}, b={b:2})  →  k = {k:2}   (count = {count})")

# Save raw data
out = {
    "experiment": "ECDLP_32pts_Shors_noise_noqft",
    "backend": backend.name,
    "physical_qubits": PHYSICAL,
    "shots": SHOTS,
    "counts": counts_raw
}
JSON_PATH = "/Users/steventippeconnic/Documents/QC/Shor_style_ECC_5_Bit_NoQFT_Noise_0.json"
with open(JSON_PATH, "w") as fp:
    json.dump(out, fp, indent=4)
log.info("Results saved → %s", JSON_PATH)

# End


///////////////////////////////////////////////////

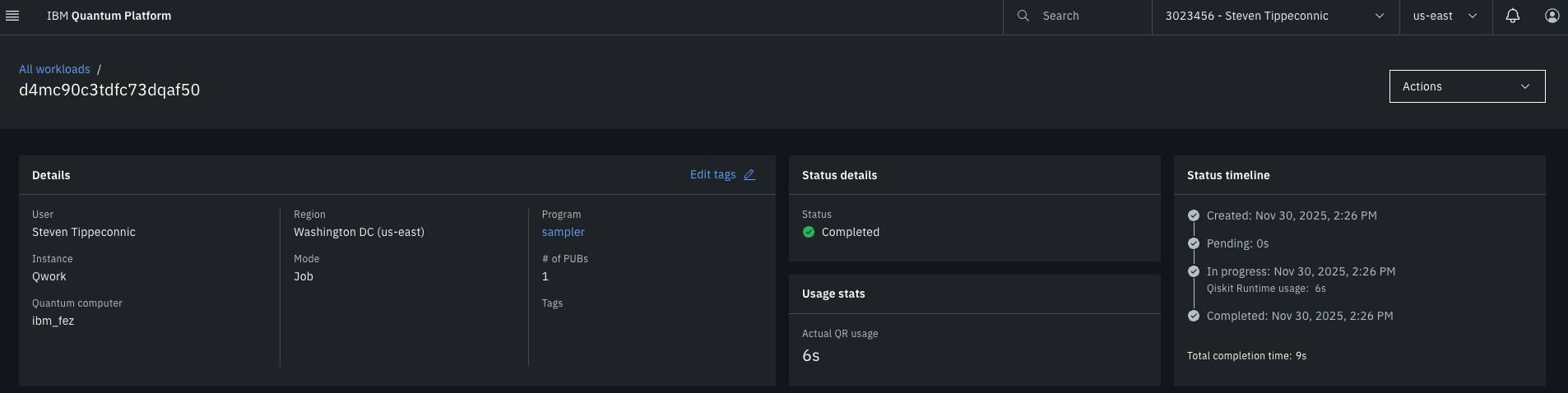

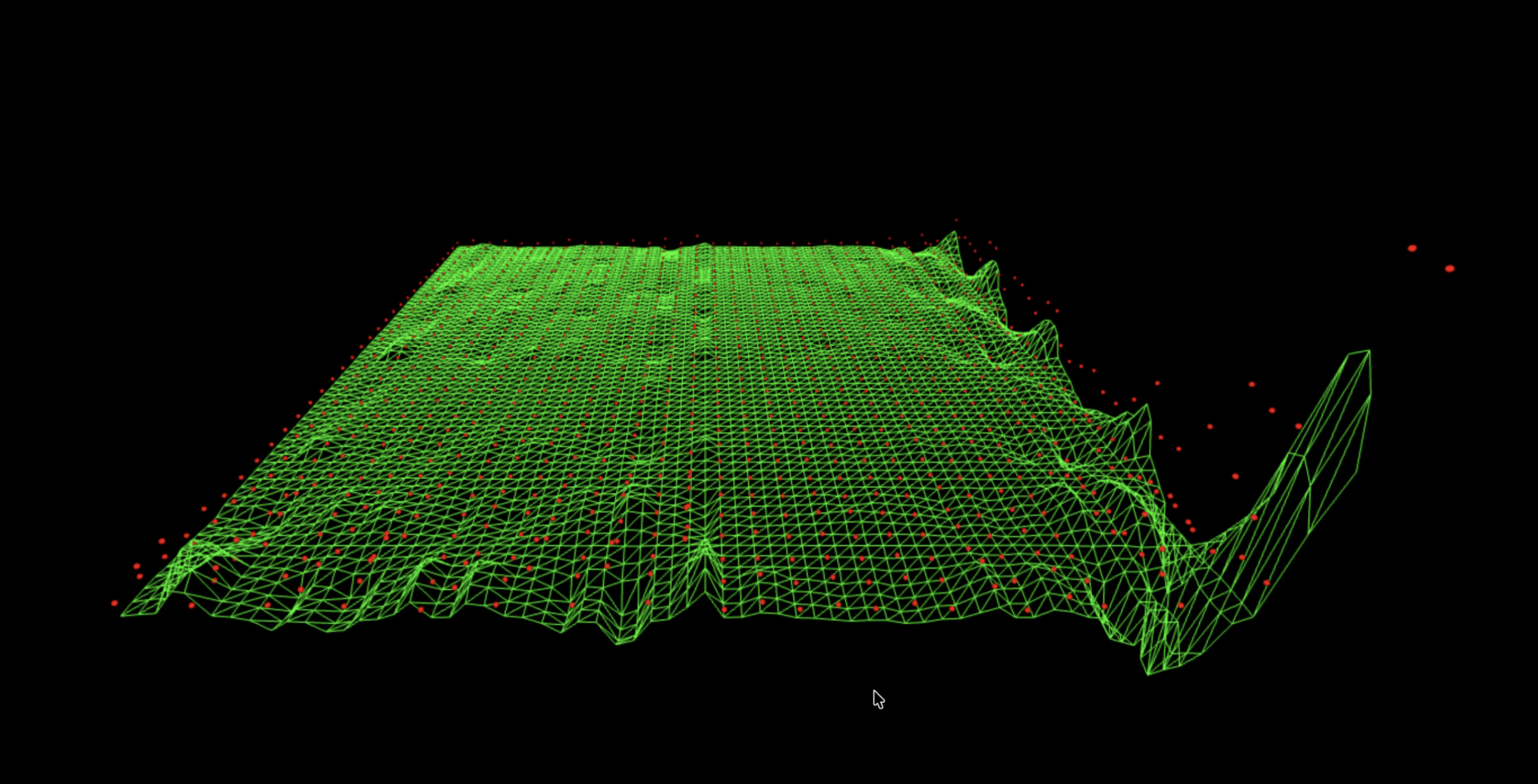

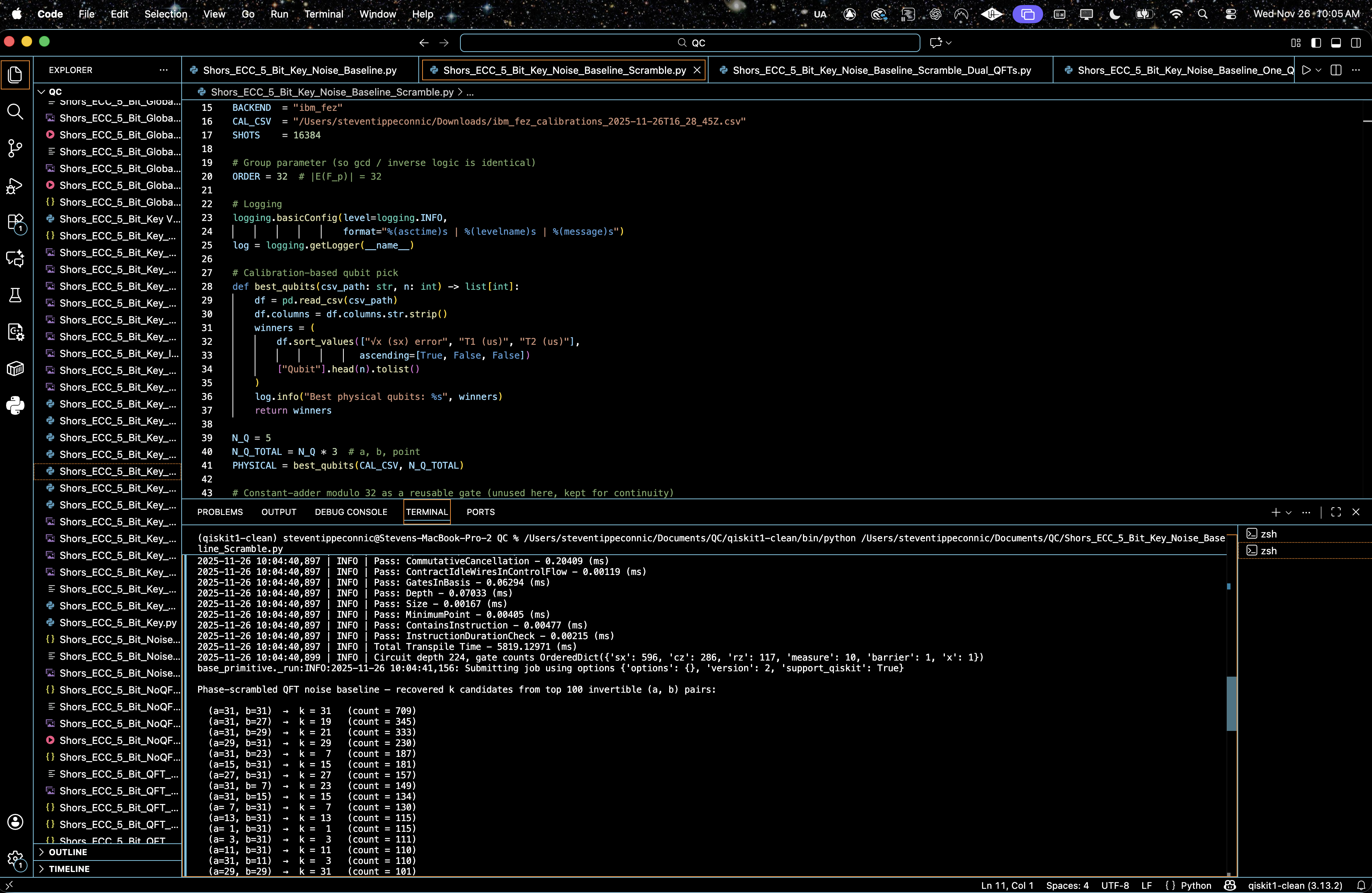

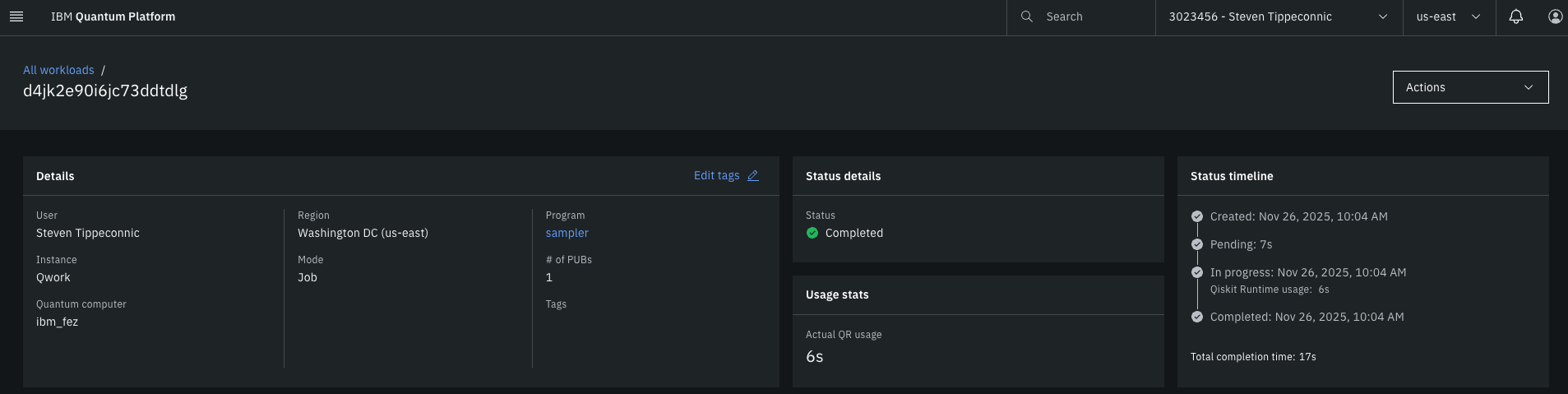

# Dual QFTs, No Structure (Fully Scrambled Registers)
# Imports
import logging, json
from math import gcd
import numpy as np
from qiskit import QuantumCircuit, QuantumRegister, ClassicalRegister, transpile
from qiskit.circuit.library import UnitaryGate, QFT
from qiskit_ibm_runtime import QiskitRuntimeService, SamplerV2
import pandas as pd

# IBMQ
TOKEN = ""
INSTANCE = ""
BACKEND  = "ibm_fez"
CAL_CSV  = "/Users/steventippeconnic/Downloads/ibm_fez_calibrations_2025-11-22T04_35_16Z.csv"
SHOTS    = 16384

# Group parameter (so gcd / inverse logic is identical)
ORDER = 32  # |E(F_p)| = 32

# Logging
logging.basicConfig(level=logging.INFO,
                    format="%(asctime)s | %(levelname)s | %(message)s")
log = logging.getLogger(__name__)

# Calibration-based qubit pick
def best_qubits(csv_path: str, n: int) -> list[int]:
    df = pd.read_csv(csv_path)
    df.columns = df.columns.str.strip()
    winners = (
        df.sort_values(["√x (sx) error", "T1 (us)", "T2 (us)"],
                       ascending=[True, False, False])
        ["Qubit"].head(n).tolist()
    )
    log.info("Best physical qubits: %s", winners)
    return winners

N_Q = 5
N_Q_TOTAL = N_Q * 3  # a, b, point
PHYSICAL = best_qubits(CAL_CSV, N_Q_TOTAL)

# Constant-adder modulo 32 as a reusable gate (unused here, kept for continuity)
def add_const_mod32_gate(c: int) -> UnitaryGate:
    """Return a 5-qubit gate that maps |x⟩ ↦ |x+c (mod 32)⟩."""
    mat = np.zeros((32, 32))
    for x in range(32):
        mat[(x + c) % 32, x] = 1
    return UnitaryGate(mat, label=f"+{c}")

ADDERS = {c: add_const_mod32_gate(c) for c in range(1, 32)}

def controlled_add(qc: QuantumCircuit, ctrl_qubit, point_reg, constant):
    """Apply |x⟩ → |x+constant (mod 32)⟩ controlled by one qubit."""
    qc.append(ADDERS[constant].control(), [ctrl_qubit, *point_reg])

# Noise oracle: same call site, but no operation
def ecdlp_oracle(qc, a_reg, b_reg, point_reg):
    # No-op oracle: no a,b→point structure at all.
    return

# Fixed 'random' phase masks on a and b to scramble QFT bias
PHASES_A = [0.1732, 0.9410, 1.6180, 2.2740, 2.9670]
PHASES_B = [0.5120, 1.2210, 1.9370, 2.4440, 2.8890]

def apply_phase_scramble(qc: QuantumCircuit, a_reg, b_reg):
    """Apply fixed per-qubit RZ phase masks to a and b before QFT."""
    for q, theta in zip(a_reg, PHASES_A):
        qc.rz(theta, q)
    for q, theta in zip(b_reg, PHASES_B):
        qc.rz(theta, q)

# Build the noise circuit WITH QFTs, but no oracle structure on a,b
def shor_ecdlp_noise_qft_scrambled_circuit() -> QuantumCircuit:
    a = QuantumRegister(N_Q, "a")
    b = QuantumRegister(N_Q, "b")
    p = QuantumRegister(N_Q, "p")
    c = ClassicalRegister(N_Q * 2, "c")
    qc = QuantumCircuit(a, b, p, c, name="ECDLP_32pts_noise_qft_scrambled")

    # Put a and b into superposition
    qc.h(a)
    qc.h(b)

    # Phase-scramble a and b so QFT sees a random-looking phase landscape
    apply_phase_scramble(qc, a, b)

    # Oracle call (no-op, keeps structure slot)
    ecdlp_oracle(qc, a, b, p)
    qc.barrier()

    # QFT on a and b, as in the real algorithm
    qc.append(QFT(N_Q, do_swaps=False), a)
    qc.append(QFT(N_Q, do_swaps=False), b)

    # Measure a and b into classical c
    qc.measure(a, c[:N_Q])
    qc.measure(b, c[N_Q:])

    return qc

# IBM Runtime
service = QiskitRuntimeService(channel="ibm_cloud",
                               token=TOKEN,
                               instance=INSTANCE)
backend = service.backend(BACKEND)
log.info("Backend → %s", backend.name)

qc_raw = shor_ecdlp_noise_qft_scrambled_circuit()
trans = transpile(qc_raw,
                  backend=backend,
                  initial_layout=PHYSICAL,
                  optimization_level=3)
log.info("Circuit depth %d, gate counts %s", trans.depth(), trans.count_ops())

sampler = SamplerV2(mode=backend)
job = sampler.run([trans], shots=SHOTS)
result = job.result()

# Classical post-processing
creg_name = trans.cregs[0].name
counts_raw = result[0].data.__getattribute__(creg_name).get_counts()

def bits_to_int(bs):
    return int(bs[::-1], 2)

# Map bitstrings to (a, b) pairs exactly as in the real run
counts = {(bits_to_int(k[N_Q:]), bits_to_int(k[:N_Q])): v
          for k, v in counts_raw.items()}
top = sorted(counts.items(), key=lambda kv: kv[1], reverse=True)

# Same invertible-b scan, now interpreted as a QFT-scrambled noise baseline
top_invertibles = []
for (a_val, b_val), freq in top:
    if gcd(b_val, ORDER) != 1:
        continue
    inv_b = pow(b_val, -1, ORDER)
    k_candidate = (-a_val * inv_b) % ORDER
    top_invertibles.append(((a_val, b_val), k_candidate, freq))
    if len(top_invertibles) == 100:
        break

print(
    "\nPhase-scrambled QFT noise baseline — recovered k candidates "
    "from top 100 invertible (a, b) pairs:\n"
)
for (a, b), k, count in top_invertibles:
    print(f"  (a={a:2}, b={b:2})  →  k = {k:2}   (count = {count})")

# Save raw data
out = {
    "experiment": "ECDLP_32pts_Shors_noise_qft_scrambled",
    "backend": backend.name,
    "physical_qubits": PHYSICAL,
    "shots": SHOTS,
    "counts": counts_raw
}
JSON_PATH = (
    "/Users/steventippeconnic/Documents/QC/"
    "Shor_style_ECC_5_Bit_QFT_Scrambled_Noise_0.json"
)
with open(JSON_PATH, "w") as fp:
    json.dump(out, fp, indent=4)
log.info("Results saved → %s", JSON_PATH)

# End


//////////////////////////////////////////////////////

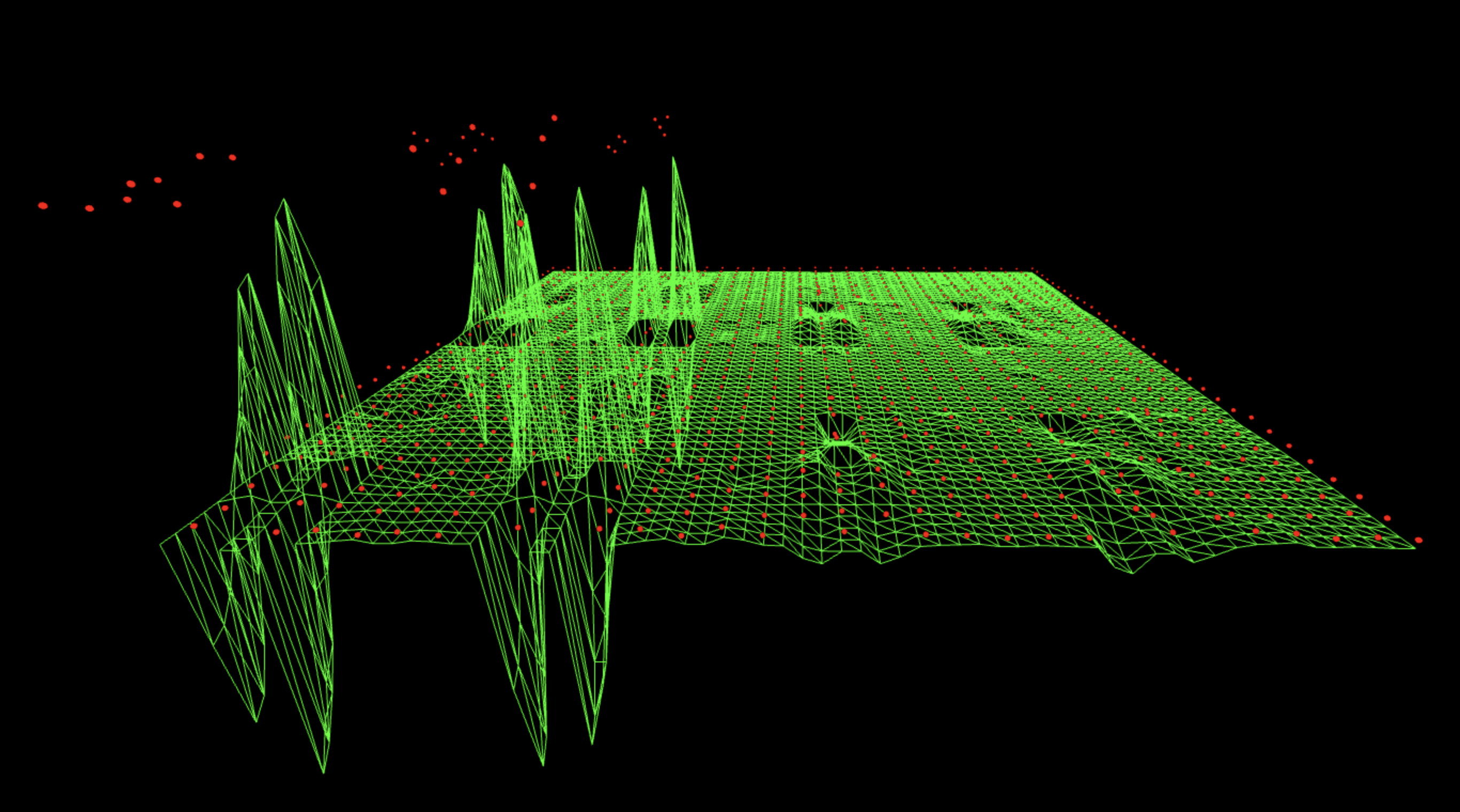

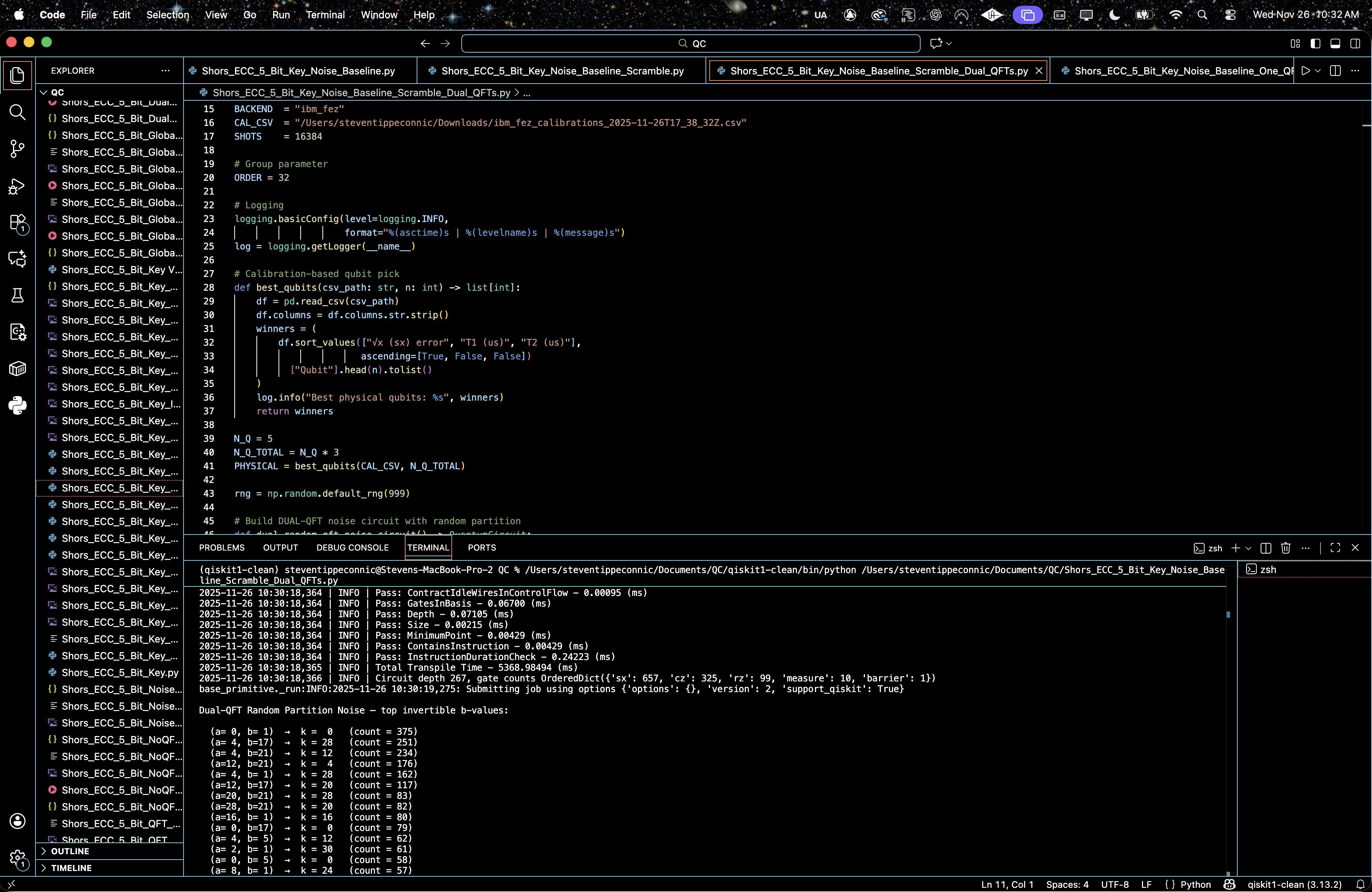

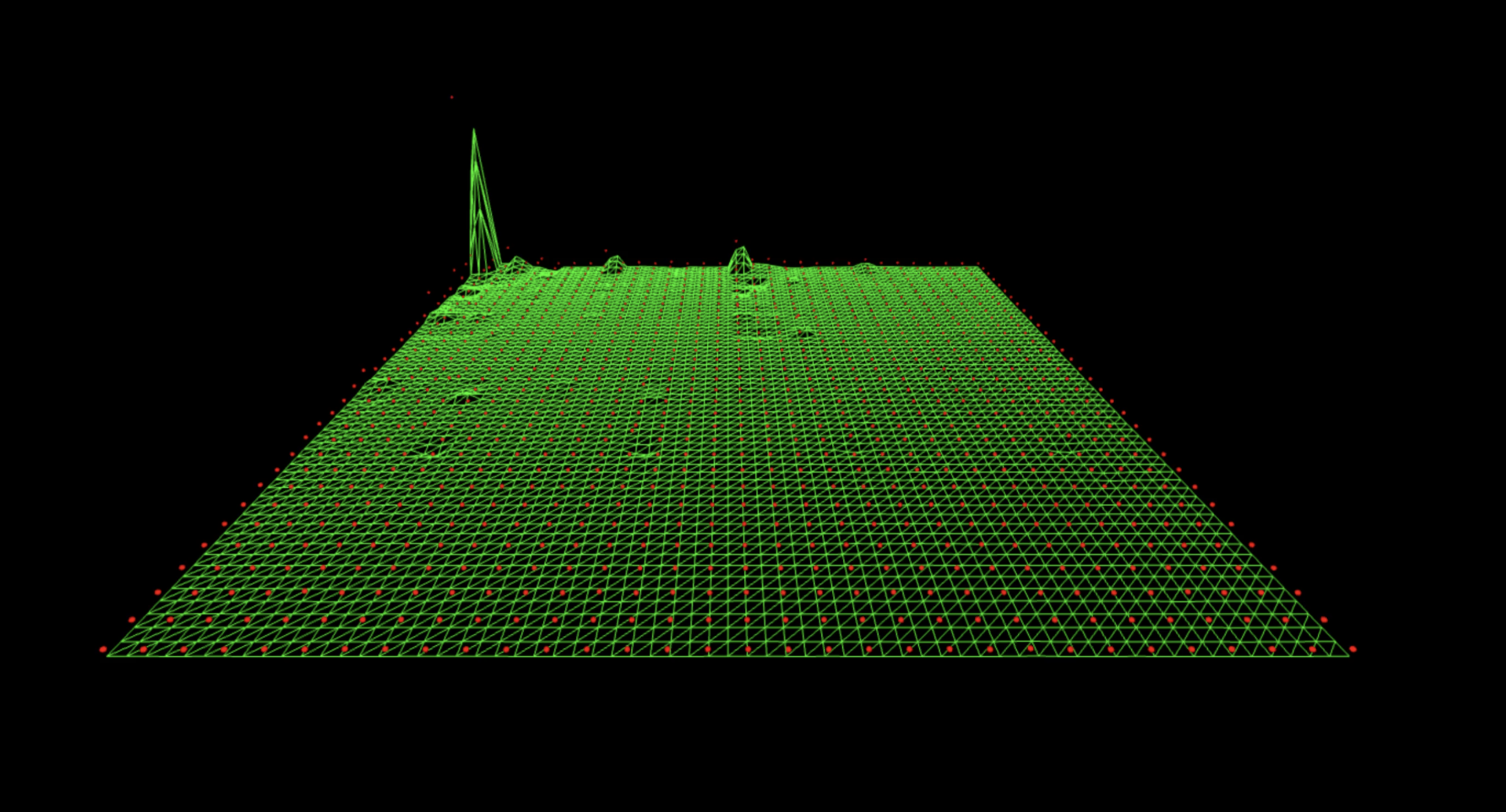

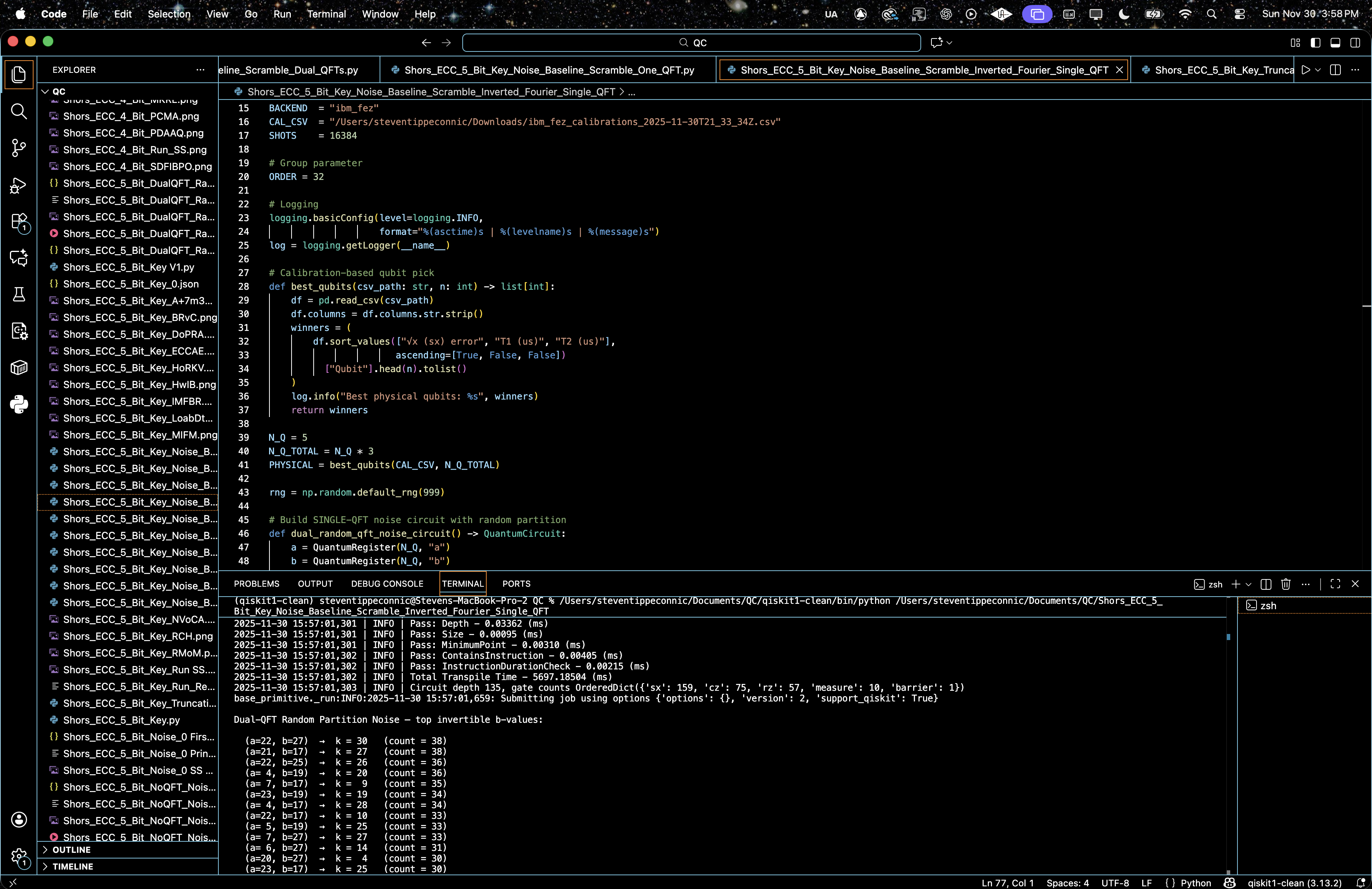

# Randomized QFT With Inverted Fourier Partition
# Imports
import logging, json
from math import gcd
import numpy as np
from qiskit import QuantumCircuit, QuantumRegister, ClassicalRegister, transpile
from qiskit.circuit.library import UnitaryGate, QFT
from qiskit_ibm_runtime import QiskitRuntimeService, SamplerV2
import pandas as pd

# IBMQ
TOKEN = ""
INSTANCE = ""
BACKEND  = "ibm_fez"
CAL_CSV  = "/Users/steventippeconnic/Downloads/ibm_fez_calibrations_2025-11-22T05_17_49Z.csv"
SHOTS    = 16384

# Group parameter
ORDER = 32

# Logging
logging.basicConfig(level=logging.INFO,
                    format="%(asctime)s | %(levelname)s | %(message)s")
log = logging.getLogger(__name__)

# Calibration-based qubit pick
def best_qubits(csv_path: str, n: int) -> list[int]:
    df = pd.read_csv(csv_path)
    df.columns = df.columns.str.strip()
    winners = (
        df.sort_values(["√x (sx) error", "T1 (us)", "T2 (us)"],
                       ascending=[True, False, False])
          ["Qubit"].head(n).tolist()
    )
    log.info("Best physical qubits: %s", winners)
    return winners

N_Q = 5
N_Q_TOTAL = N_Q * 3
PHYSICAL = best_qubits(CAL_CSV, N_Q_TOTAL)

rng = np.random.default_rng(999)

# Build DUAL-QFT noise circuit with random partition
def dual_random_qft_noise_circuit() -> QuantumCircuit:
    a = QuantumRegister(N_Q, "a")
    b = QuantumRegister(N_Q, "b")
    p = QuantumRegister(N_Q, "p")
    c = ClassicalRegister(N_Q * 2, "c")
    qc = QuantumCircuit(a, b, p, c, name="DualRandomQFT_Noise")

    # Unordered global superposition
    qc.h(a)
    qc.h(b)

    # Combine a+b into one 10-qubit pool
    ab_qubits = list(a) + list(b)
    rng.shuffle(ab_qubits)

    # Split into two random halves
    half1 = ab_qubits[:5]
    half2 = ab_qubits[5:]

    log.info(f"Random QFT partitions: half1={half1}, half2={half2}")

    # Apply QFT to the first half
    qc.append(QFT(len(half1), do_swaps=False), half1)

    # Apply another QFT to the second half
    qc.append(QFT(len(half2), do_swaps=False), half2)

    qc.barrier()

    # Measure original a,b layout
    qc.measure(a, c[:N_Q])
    qc.measure(b, c[N_Q:])

    return qc


# IBM Runtime
service = QiskitRuntimeService(
    channel="ibm_cloud",
    token=TOKEN,
    instance=INSTANCE
)
backend = service.backend(BACKEND)
log.info("Backend → %s", backend.name)

qc_raw = dual_random_qft_noise_circuit()
trans = transpile(
    qc_raw,
    backend=backend,
    initial_layout=PHYSICAL,
    optimization_level=3
)
log.info("Circuit depth %d, gate counts %s", trans.depth(), trans.count_ops())

sampler = SamplerV2(mode=backend)
job = sampler.run([trans], shots=SHOTS)
result = job.result()

# Post-processing
creg_name = trans.cregs[0].name
counts_raw = result[0].data.__getattribute__(creg_name).get_counts()

def bits_to_int(bs):
    return int(bs[::-1], 2)

# Map bitstrings → (a,b)
counts = {(bits_to_int(k[N_Q:]), bits_to_int(k[:N_Q])): v
          for k, v in counts_raw.items()}
top = sorted(counts.items(), key=lambda kv: kv[1], reverse=True)

top_invertibles = []
for (a_val, b_val), freq in top:
    if gcd(b_val, ORDER) != 1:
        continue
    inv_b = pow(b_val, -1, ORDER)
    k_candidate = (-a_val * inv_b) % ORDER
    top_invertibles.append(((a_val, b_val), k_candidate, freq))
    if len(top_invertibles) >= 100:
        break

print("\nDual-QFT Random Partition Noise — top invertible b-values:\n")
for (a, b), k, count in top_invertibles:
    print(f"  (a={a:2}, b={b:2})  →  k = {k:2}   (count = {count})")

# Save raw data
out = {
    "experiment": "DualQFT_random_partition_noise",
    "backend": backend.name,
    "physical_qubits": PHYSICAL,
    "shots": SHOTS,
    "counts": counts_raw
}
JSON_PATH = (
    "/Users/steventippeconnic/Documents/QC/"
    "Shor_style_ECC_5_Bit_DualQFT_Random_Noise_0.json"
)
with open(JSON_PATH, "w") as fp:
    json.dump(out, fp, indent=4)

log.info("Results saved → %s", JSON_PATH)


# End

//////////////////////////////////////////////////////////////

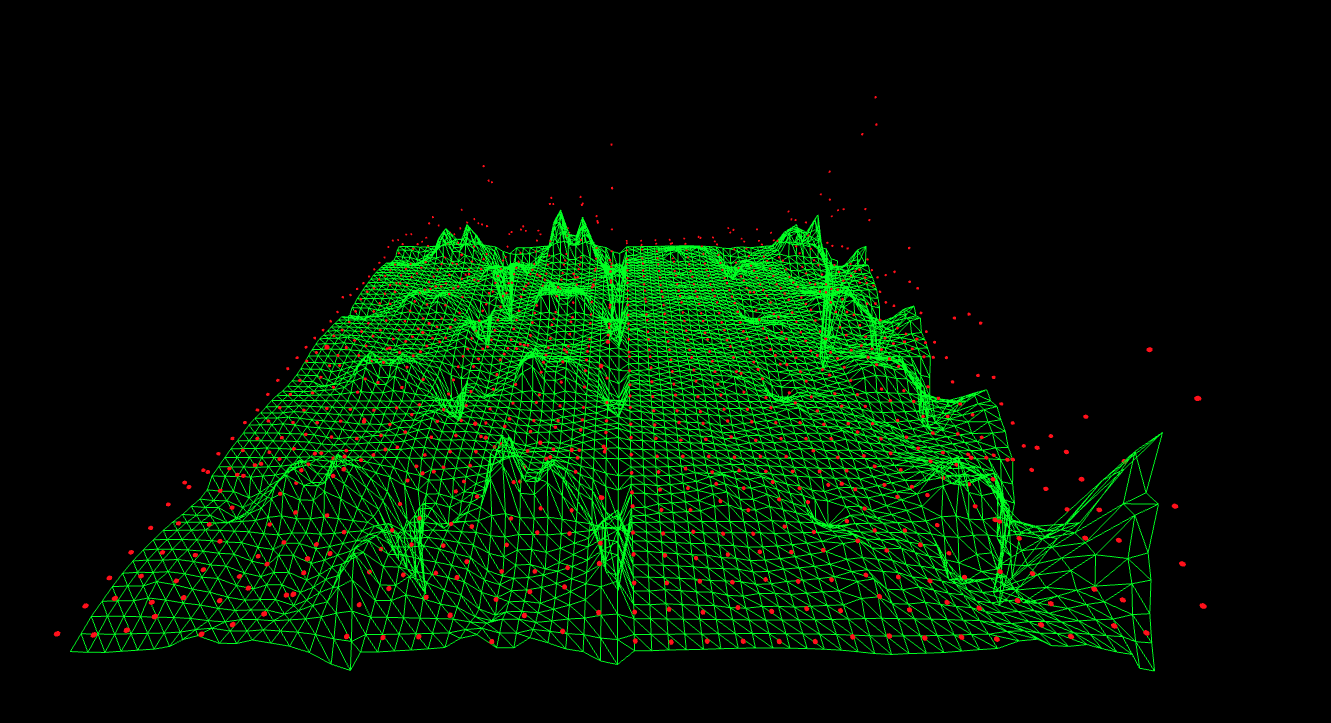

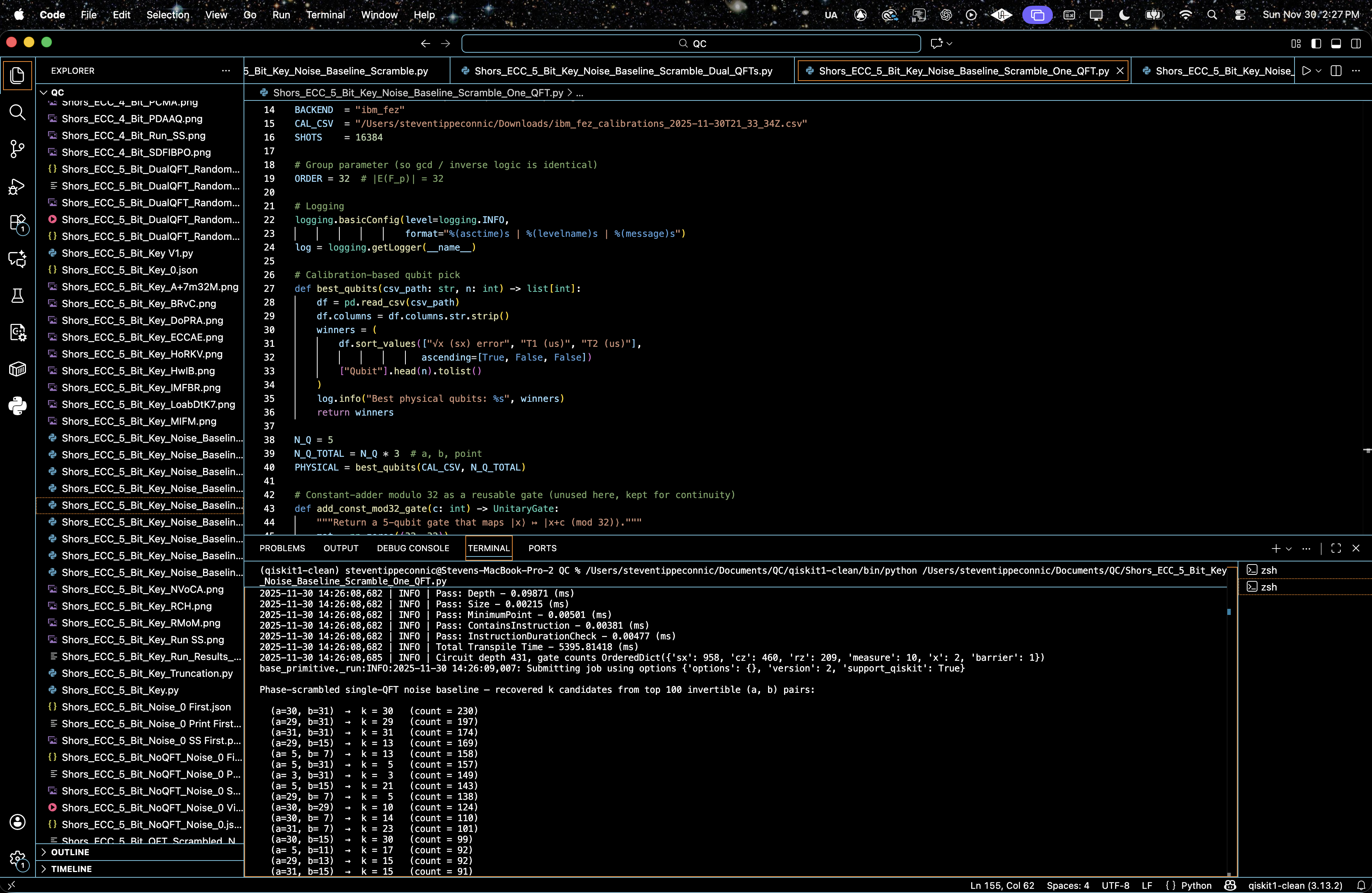

#  Single QFT, No Structure (Fully Scrambled Registers)
# Imports
import logging, json
from math import gcd
import numpy as np
from qiskit import QuantumCircuit, QuantumRegister, ClassicalRegister, transpile
from qiskit.circuit.library import UnitaryGate, QFT
from qiskit_ibm_runtime import QiskitRuntimeService, SamplerV2
import pandas as pd

# IBMQ
TOKEN = ""
INSTANCE = ""
BACKEND  = "ibm_fez"
CAL_CSV  = "/Users/steventippeconnic/Downloads/ibm_fez_calibrations_2025-11-30T21_33_34Z.csv"
SHOTS    = 16384

# Group parameter (so gcd / inverse logic is identical)
ORDER = 32  # |E(F_p)| = 32

# Logging
logging.basicConfig(level=logging.INFO,
                    format="%(asctime)s | %(levelname)s | %(message)s")
log = logging.getLogger(__name__)

# Calibration-based qubit pick
def best_qubits(csv_path: str, n: int) -> list[int]:
    df = pd.read_csv(csv_path)
    df.columns = df.columns.str.strip()
    winners = (
        df.sort_values(["√x (sx) error", "T1 (us)", "T2 (us)"],
                       ascending=[True, False, False])
        ["Qubit"].head(n).tolist()
    )
    log.info("Best physical qubits: %s", winners)
    return winners

N_Q = 5
N_Q_TOTAL = N_Q * 3  # a, b, point
PHYSICAL = best_qubits(CAL_CSV, N_Q_TOTAL)

# Constant-adder modulo 32 as a reusable gate (unused here, kept for continuity)
def add_const_mod32_gate(c: int) -> UnitaryGate:
    """Return a 5-qubit gate that maps |x⟩ ↦ |x+c (mod 32)⟩."""
    mat = np.zeros((32, 32))
    for x in range(32):
        mat[(x + c) % 32, x] = 1
    return UnitaryGate(mat, label=f"+{c}")

ADDERS = {c: add_const_mod32_gate(c) for c in range(1, 32)}

def controlled_add(qc: QuantumCircuit, ctrl_qubit, point_reg, constant):
    """Apply |x⟩ → |x+constant (mod 32)⟩ controlled by one qubit."""
    qc.append(ADDERS[constant].control(), [ctrl_qubit, *point_reg])

# Noise oracle: same call site, but no operation
def ecdlp_oracle(qc, a_reg, b_reg, point_reg):
    # No-op oracle: no a,b→point structure at all.
    return

# Fixed "random" phase masks on a and b to scramble QFT bias
PHASES_A = [0.1732, 0.9410, 1.6180, 2.2740, 2.9670]
PHASES_B = [0.5120, 1.2210, 1.9370, 2.4440, 2.8890]

def apply_phase_scramble(qc: QuantumCircuit, a_reg, b_reg):
    """Apply fixed per-qubit RZ phase masks to a and b before QFT."""
    for q, theta in zip(a_reg, PHASES_A):
        qc.rz(theta, q)
    for q, theta in zip(b_reg, PHASES_B):
        qc.rz(theta, q)

# Build the noise circuit with ONE global QFT on a∪b, no oracle structure on a,b
def shor_ecdlp_noise_qft_scrambled_circuit() -> QuantumCircuit:
    a = QuantumRegister(N_Q, "a")
    b = QuantumRegister(N_Q, "b")
    p = QuantumRegister(N_Q, "p")
    c = ClassicalRegister(N_Q * 2, "c")
    qc = QuantumCircuit(a, b, p, c, name="ECDLP_32pts_noise_qft_scrambled_1QFT")

    # Put a and b into superposition
    qc.h(a)
    qc.h(b)

    # Phase-scramble a and b so QFT sees a random-looking phase landscape
    apply_phase_scramble(qc, a, b)

    # Oracle call (no-op, keeps structure slot)
    ecdlp_oracle(qc, a, b, p)
    qc.barrier()

    # Single global QFT on all a∪b qubits (10-qubit QFT)
    ab_qubits = list(a) + list(b)
    qc.append(QFT(len(ab_qubits), do_swaps=False), ab_qubits)

    # Measure a and b into classical c
    qc.measure(a, c[:N_Q])
    qc.measure(b, c[N_Q:])

    return qc

# IBM Runtime
service = QiskitRuntimeService(channel="ibm_cloud",
                               token=TOKEN,
                               instance=INSTANCE)
backend = service.backend(BACKEND)
log.info("Backend → %s", backend.name)

qc_raw = shor_ecdlp_noise_qft_scrambled_circuit()
trans = transpile(qc_raw,
                  backend=backend,
                  initial_layout=PHYSICAL,
                  optimization_level=3)
log.info("Circuit depth %d, gate counts %s", trans.depth(), trans.count_ops())

sampler = SamplerV2(mode=backend)
job = sampler.run([trans], shots=SHOTS)
result = job.result()

# Classical post-processing
creg_name = trans.cregs[0].name
counts_raw = result[0].data.__getattribute__(creg_name).get_counts()

def bits_to_int(bs):
    return int(bs[::-1], 2)

# Map bitstrings to (a, b) pairs exactly as in the real run
counts = {(bits_to_int(k[N_Q:]), bits_to_int(k[:N_Q])): v
          for k, v in counts_raw.items()}
top = sorted(counts.items(), key=lambda kv: kv[1], reverse=True)

# Same invertible-b scan, now interpreted as a single-QFT scrambled noise baseline
top_invertibles = []
for (a_val, b_val), freq in top:
    if gcd(b_val, ORDER) != 1:
        continue
    inv_b = pow(b_val, -1, ORDER)
    k_candidate = (-a_val * inv_b) % ORDER
    top_invertibles.append(((a_val, b_val), k_candidate, freq))
    if len(top_invertibles) == 100:
        break

print("\nPhase-scrambled single-QFT noise baseline — "
      "recovered k candidates from top 100 invertible (a, b) pairs:\n")
for (a, b), k, count in top_invertibles:
    print(f"  (a={a:2}, b={b:2})  →  k = {k:2}   (count = {count})")

# Save raw data
out = {
    "experiment": "ECDLP_32pts_Shors_noise_qft_scrambled_1QFT",
    "backend": backend.name,
    "physical_qubits": PHYSICAL,
    "shots": SHOTS,
    "counts": counts_raw
}
JSON_PATH = (
    "/Users/steventippeconnic/Documents/QC/"
    "Shor_style_ECC_5_Bit_QFT_Scrambled_1QFT_Noise_0.json"
)
with open(JSON_PATH, "w") as fp:
    json.dump(out, fp, indent=4)
log.info("Results saved → %s", JSON_PATH)

# End

/////////////////////////////////////////////////////////////

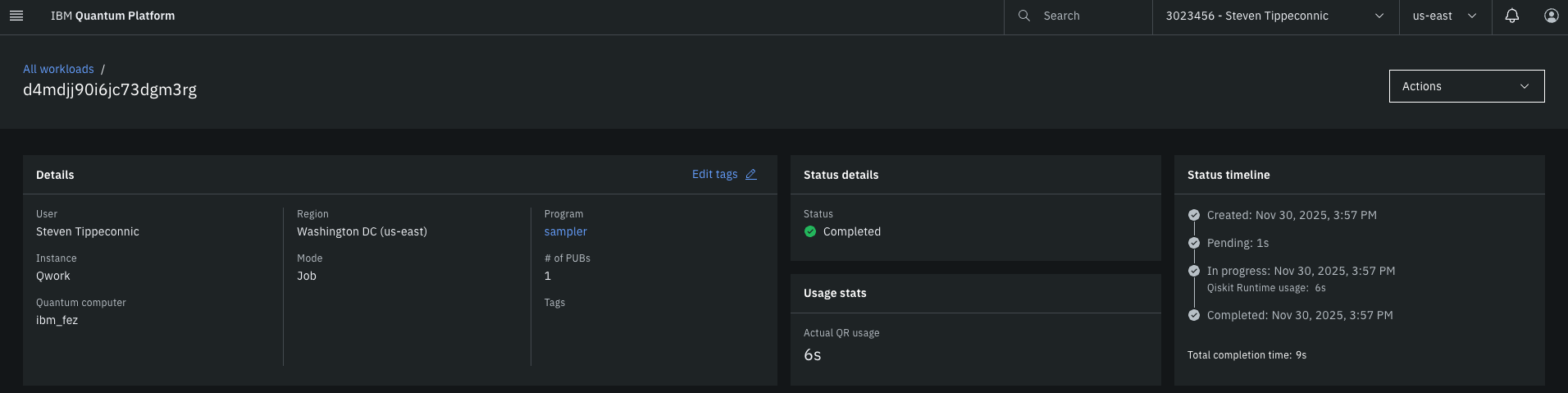

# Randomized Single QFT With Inverted Fourier Partition
# Imports
import logging, json
from math import gcd
import numpy as np
from qiskit import QuantumCircuit, QuantumRegister, ClassicalRegister, transpile
from qiskit.circuit.library import UnitaryGate, QFT
from qiskit_ibm_runtime import QiskitRuntimeService, SamplerV2
import pandas as pd

# IBMQ
TOKEN = ""
INSTANCE = ""
BACKEND  = "ibm_fez"
CAL_CSV  = "/Users/steventippeconnic/Downloads/ibm_fez_calibrations_2025-11-30T21_33_34Z.csv"
SHOTS    = 16384

# Group parameter
ORDER = 32

# Logging
logging.basicConfig(level=logging.INFO,
                    format="%(asctime)s | %(levelname)s | %(message)s")
log = logging.getLogger(__name__)

# Calibration-based qubit pick
def best_qubits(csv_path: str, n: int) -> list[int]:
    df = pd.read_csv(csv_path)
    df.columns = df.columns.str.strip()
    winners = (
        df.sort_values(["√x (sx) error", "T1 (us)", "T2 (us)"],
                       ascending=[True, False, False])
          ["Qubit"].head(n).tolist()
    )
    log.info("Best physical qubits: %s", winners)
    return winners

N_Q = 5
N_Q_TOTAL = N_Q * 3
PHYSICAL = best_qubits(CAL_CSV, N_Q_TOTAL)

rng = np.random.default_rng(999)

# Build SINGLE-QFT noise circuit with random partition
def dual_random_qft_noise_circuit() -> QuantumCircuit:
    a = QuantumRegister(N_Q, "a")
    b = QuantumRegister(N_Q, "b")
    p = QuantumRegister(N_Q, "p")
    c = ClassicalRegister(N_Q * 2, "c")
    qc = QuantumCircuit(a, b, p, c, name="DualRandomQFT_Noise")

    # Unordered global superposition
    qc.h(a)
    qc.h(b)

    # Combine a+b into one 10-qubit pool
    ab_qubits = list(a) + list(b)
    rng.shuffle(ab_qubits)

    # Split into two random halves
    half1 = ab_qubits[:5]
    half2 = ab_qubits[5:]

    log.info(f"Random QFT partitions: half1={half1}, half2={half2}")

    # Apply QFT to ONLY the first half (single QFT variant)
    qc.append(QFT(len(half1), do_swaps=False), half1)

    qc.barrier()

    # Measure original a,b layout
    qc.measure(a, c[:N_Q])
    qc.measure(b, c[N_Q:])

    return qc

# IBM Runtime
service = QiskitRuntimeService(
    channel="ibm_cloud",
    token=TOKEN,
    instance=INSTANCE
)
backend = service.backend(BACKEND)
log.info("Backend → %s", backend.name)

qc_raw = dual_random_qft_noise_circuit()
trans = transpile(
    qc_raw,
    backend=backend,
    initial_layout=PHYSICAL,
    optimization_level=3
)
log.info("Circuit depth %d, gate counts %s", trans.depth(), trans.count_ops())

sampler = SamplerV2(mode=backend)
job = sampler.run([trans], shots=SHOTS)
result = job.result()

# Post-processing
creg_name = trans.cregs[0].name
counts_raw = result[0].data.__getattribute__(creg_name).get_counts()

def bits_to_int(bs):
    return int(bs[::-1], 2)

# Map bitstrings → (a,b)
counts = {(bits_to_int(k[N_Q:]), bits_to_int(k[:N_Q])): v
          for k, v in counts_raw.items()}
top = sorted(counts.items(), key=lambda kv: kv[1], reverse=True)

top_invertibles = []
for (a_val, b_val), freq in top:
    if gcd(b_val, ORDER) != 1:
        continue
    inv_b = pow(b_val, -1, ORDER)
    k_candidate = (-a_val * inv_b) % ORDER
    top_invertibles.append(((a_val, b_val), k_candidate, freq))
    if len(top_invertibles) >= 100:
        break

print("\nDual-QFT Random Partition Noise — top invertible b-values:\n")
for (a, b), k, count in top_invertibles:
    print(f"  (a={a:2}, b={b:2})  →  k = {k:2}   (count = {count})")

# Save raw data
out = {
    "experiment": "DualQFT_random_partition_noise",
    "backend": backend.name,
    "physical_qubits": PHYSICAL,
    "shots": SHOTS,
    "counts": counts_raw
}
JSON_PATH = (
    "/Users/steventippeconnic/Documents/QC/"
    "Shor_style_ECC_5_Bit_Key_Noise_Baseline_"
    "Scramble_IF_Single_QFT_0.json"
)
with open(JSON_PATH, "w") as fp:
    json.dump(out, fp, indent=4)

log.info("Results saved → %s", JSON_PATH)

# End

/////////////////////////////////////////////////////////////

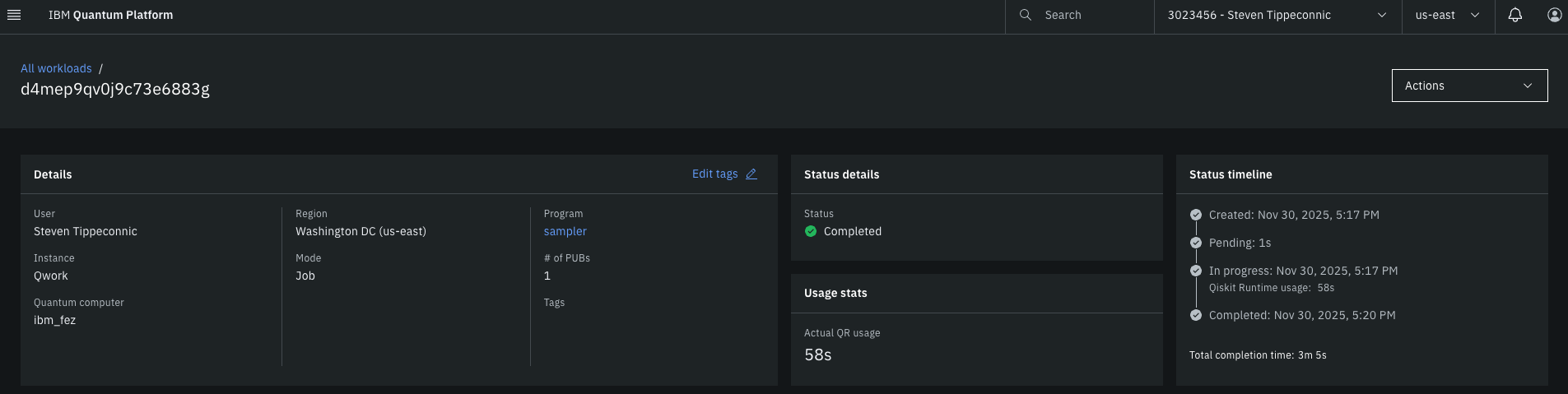

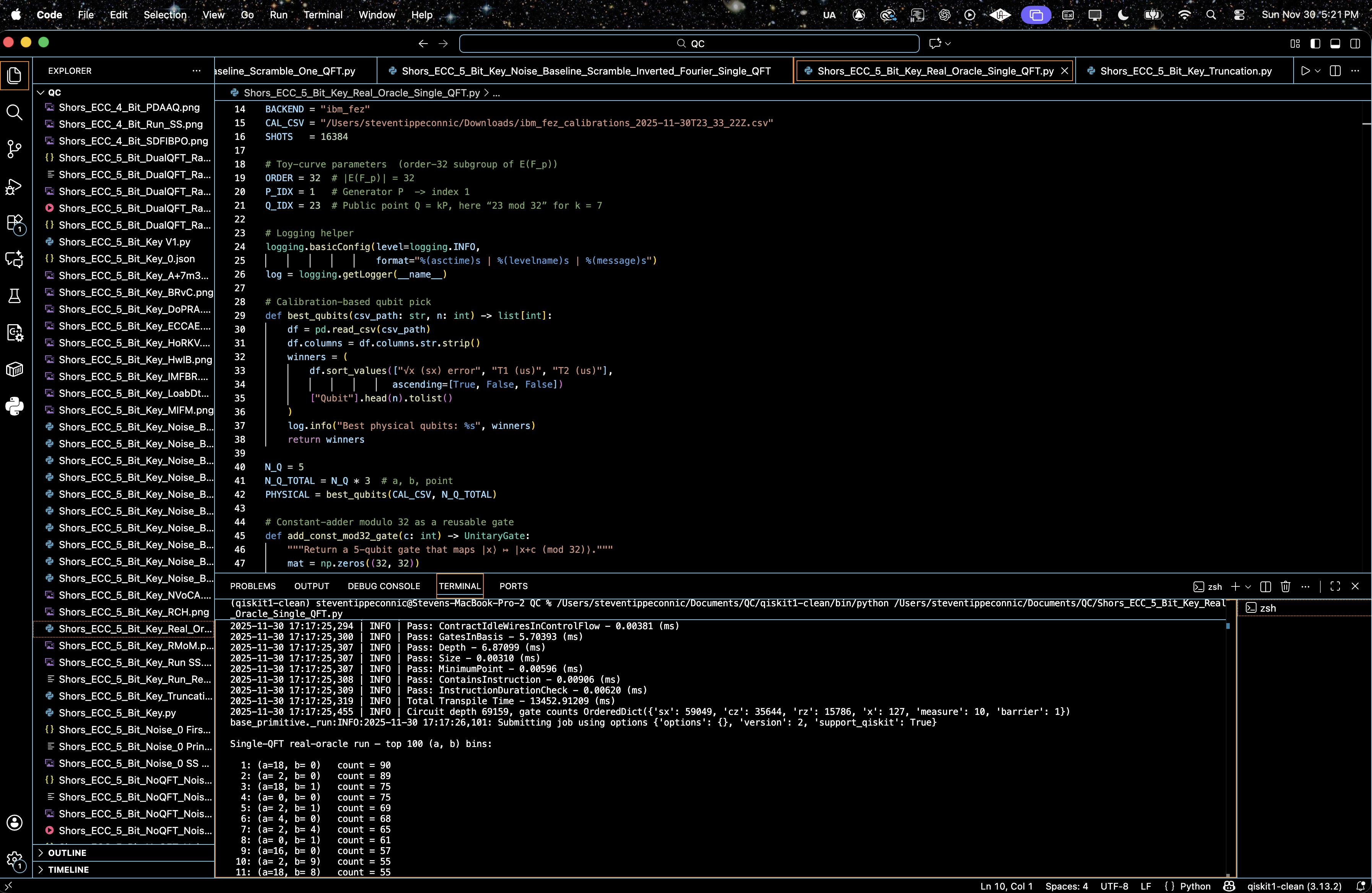

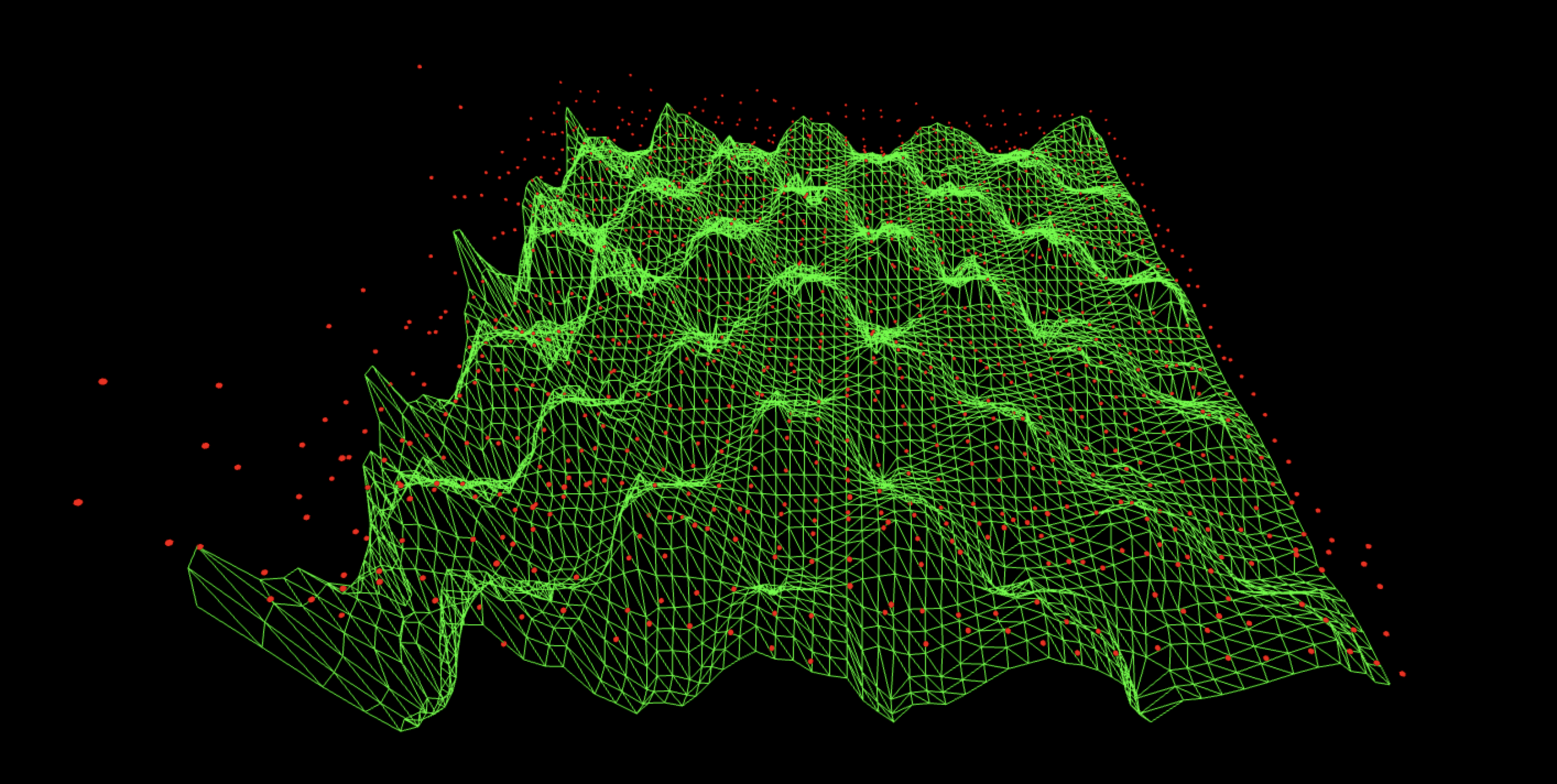

# Real Oracle and single 10-Qubit QFT
# Imports
import logging, json
from math import gcd
import numpy as np
from qiskit import QuantumCircuit, QuantumRegister, ClassicalRegister, transpile
from qiskit.circuit.library import UnitaryGate, QFT
from qiskit_ibm_runtime import QiskitRuntimeService, SamplerV2
import pandas as pd

# IBMQ
TOKEN = ""
INSTANCE = ""
BACKEND = "ibm_fez"
CAL_CSV = "/Users/steventippeconnic/Downloads/ibm_fez_calibrations_2025-11-30T23_33_22Z.csv"
SHOTS   = 16384

# Toy-curve parameters  (order-32 subgroup of E(F_p))
ORDER = 32  # |E(F_p)| = 32
P_IDX = 1   # Generator P  -> index 1
Q_IDX = 23  # Public point Q = kP, here “23 mod 32” for k = 7

# Logging helper
logging.basicConfig(level=logging.INFO,
                    format="%(asctime)s | %(levelname)s | %(message)s")
log = logging.getLogger(__name__)

# Calibration-based qubit pick
def best_qubits(csv_path: str, n: int) -> list[int]:
    df = pd.read_csv(csv_path)
    df.columns = df.columns.str.strip()
    winners = (
        df.sort_values(["√x (sx) error", "T1 (us)", "T2 (us)"],
                       ascending=[True, False, False])
        ["Qubit"].head(n).tolist()
    )
    log.info("Best physical qubits: %s", winners)
    return winners

N_Q = 5
N_Q_TOTAL = N_Q * 3  # a, b, point
PHYSICAL = best_qubits(CAL_CSV, N_Q_TOTAL)

# Constant-adder modulo 32 as a reusable gate
def add_const_mod32_gate(c: int) -> UnitaryGate:
    """Return a 5-qubit gate that maps |x⟩ ↦ |x+c (mod 32)⟩."""
    mat = np.zeros((32, 32))
    for x in range(32):
        mat[(x + c) % 32, x] = 1
    return UnitaryGate(mat, label=f"+{c}")

ADDERS = {c: add_const_mod32_gate(c) for c in range(1, 32)}

def controlled_add(qc: QuantumCircuit, ctrl_qubit, point_reg, constant):
    """Apply |x⟩ → |x+constant (mod 32)⟩ controlled by one qubit."""
    qc.append(ADDERS[constant].control(), [ctrl_qubit, *point_reg])

# Oracle  U_f : |a⟩|b⟩|0⟩ ⟶ |a⟩|b⟩|aP + bQ⟩   (index arithmetic mod 32)
def ecdlp_oracle(qc, a_reg, b_reg, point_reg):
    # a * P contribution
    for i in range(N_Q):
        constant = (P_IDX * (1 << i)) % ORDER
        if constant:
            controlled_add(qc, a_reg[i], point_reg, constant)

    # b * Q contribution
    for i in range(N_Q):
        constant = (Q_IDX * (1 << i)) % ORDER
        if constant:
            controlled_add(qc, b_reg[i], point_reg, constant)

# Build the Shor circuit variant with a single 10-qubit QFT on a∪b
def shor_ecdlp_single_qft_circuit() -> QuantumCircuit:
    a = QuantumRegister(N_Q, "a")
    b = QuantumRegister(N_Q, "b")
    p = QuantumRegister(N_Q, "p")
    c = ClassicalRegister(N_Q * 2, "c")
    qc = QuantumCircuit(a, b, p, c, name="ECDLP_32pts_singleQFT")

    # Same uniform superposition on a,b
    qc.h(a)
    qc.h(b)

    # Same real aP + bQ oracle
    ecdlp_oracle(qc, a, b, p)
    qc.barrier()

    # Single 10-qubit QFT across a ∪ b instead of two 5-qubit QFTs
    ab_qubits = list(a) + list(b)
    qc.append(QFT(len(ab_qubits), do_swaps=False), ab_qubits)

    # Measure a and b into classical bits
    qc.measure(a, c[:N_Q])
    qc.measure(b, c[N_Q:])

    return qc

# IBM Runtime execution
service = QiskitRuntimeService(channel="ibm_cloud",
                               token=TOKEN,
                               instance=INSTANCE)
backend = service.backend(BACKEND)
log.info("Backend → %s", backend.name)

qc_raw = shor_ecdlp_single_qft_circuit()
trans = transpile(qc_raw,
                  backend=backend,
                  initial_layout=PHYSICAL,
                  optimization_level=3)
log.info("Circuit depth %d, gate counts %s", trans.depth(), trans.count_ops())

sampler = SamplerV2(mode=backend)
job = sampler.run([trans], shots=SHOTS)
result = job.result()

# Classical post-processing
creg_name = trans.cregs[0].name
counts_raw = result[0].data.__getattribute__(creg_name).get_counts()

def bits_to_int(bs):
    return int(bs[::-1], 2)

# Map measurement bitstrings into (a, b) grid exactly as in the paper
counts = {(bits_to_int(k[N_Q:]), bits_to_int(k[:N_Q])): v
          for k, v in counts_raw.items()}
top = sorted(counts.items(), key=lambda kv: kv[1], reverse=True)

print("\nSingle-QFT real-oracle run — top 100 (a, b) bins:\n")
for i, ((a_val, b_val), freq) in enumerate(top[:100], start=1):
    print(f"{i:3d}: (a={a_val:2}, b={b_val:2})   count = {freq}")

# Save raw data for Three.js / heatmaps
out = {
    "experiment": "ECDLP_32pts_Shors_singleQFT",
    "backend": backend.name,
    "physical_qubits": PHYSICAL,
    "shots": SHOTS,
    "P_IDX": P_IDX,
    "Q_IDX": Q_IDX,
    "ORDER": ORDER,
    "counts": counts_raw
}
JSON_PATH = (
    "/Users/steventippeconnic/Documents/QC/"
    "Shors_ECC_5_Bit_SingleQFT_RealOracle_0.json"
)
with open(JSON_PATH, "w") as fp:
    json.dump(out, fp, indent=4)

log.info("Results saved → %s", JSON_PATH)

# End

/////////////////////////////////////////////////////////////

// code for all Threejs visuals
// Config
const HALF_BITS = 5;                 // 5 per axis
const TOTAL_BITS = 2 * HALF_BITS;    // 10
const GRID = 1 << HALF_BITS;         // 32
const MOD = GRID;                    // 32

// Load JSON (replace for experiment run)
async function loadQuantumData() {
  const res = await fetch('Your_experiment_results.json');
  const data = await res.json();
  return data.counts;
}

// Three.js setup
const scene    = new THREE.Scene();
const camera = new THREE.PerspectiveCamera(
    75, window.innerWidth / window.innerHeight, 0.1, 1000
);
const renderer = new THREE.WebGLRenderer({ antialias: true });
renderer.setSize(window.innerWidth, window.innerHeight);
document.body.appendChild(renderer.domElement);

// Controls & lighting
const controls = new THREE.OrbitControls(camera, renderer.domElement);
const light = new THREE.DirectionalLight(0xffffff, 1);
light.position.set(10, 10, 10);
scene.add(light);

// Camera
camera.position.set(0, 30, 60);
camera.lookAt(0, 0, 0);

// Globals
let mesh;
let redDots = [];
let time = 0;

// Helpers
const pad10 = s => s.padStart(TOTAL_BITS, '0').slice(-TOTAL_BITS);
const rev   = s => s.split('').reverse().join('');

// Parse into classical (a,b) and use those as display (u,v)
function parseEntries(counts) {
  const entries = [];
  for (const [bit, cRaw] of Object.entries(counts)) {
    const b10   = pad10(bit);
    const left  = b10.slice(0, HALF_BITS);    // raw left 5
    const right = b10.slice(HALF_BITS);       // raw right 5

    const a = parseInt(rev(right), 2);        // a = int(right[::-1], 2)
    const b = parseInt(rev(left),  2);        // b = int(left[::-1],  2)

    const u = a;
    const v = b;

    entries.push({ bit, a, b, u, v, count: Number(cRaw) });
  }
  return entries;
}

function buildMatrix(entries) {
  const matrix = Array.from({ length: GRID }, () => Array(GRID).fill(0));
  let maxCount = 0;
  for (const e of entries) {
    matrix[e.u][e.v] = e.count;
    if (e.count > maxCount) maxCount = e.count;
  }
  return { matrix, maxCount };
}

// Build surface + dots
function createWaveSurface(matrix, maxCount) {
  const WIDTH    = GRID * 2;
  const SEGMENTS = WIDTH;
  const STEP     = WIDTH / (GRID - 1);

  const geometry = new THREE.PlaneGeometry(WIDTH, WIDTH, SEGMENTS, SEGMENTS);
  const colors   = [];
  const gridX    = SEGMENTS + 1;
  const gridY    = SEGMENTS + 1;

  for (let y = 0; y < gridY; y++) {
    for (let x = 0; x < gridX; x++) {
      const color = new THREE.Color(0x00ff00); // uniform green mesh
      colors.push(color.r, color.g, color.b);
    }
  }

  geometry.setAttribute('color', new THREE.Float32BufferAttribute(colors, 3));
  const material = new THREE.MeshBasicMaterial({ vertexColors: true, wireframe: true });

  mesh = new THREE.Mesh(geometry, material);
  mesh.rotation.x = -Math.PI / 2;
  mesh.userData   = { matrix, maxCount, GRID, STEP };
  scene.add(mesh);

  // Red dots at every (u,v)
  const dotMat = new THREE.MeshBasicMaterial({ color: 0xff0000 });
  for (let v = 0; v < GRID; v++) {
    for (let u = 0; u < GRID; u++) {
      const dot = new THREE.Mesh(new THREE.SphereGeometry(0.15, 8, 8), dotMat);
      dot.position.set(
        (u - (GRID - 1) / 2) * STEP,
        0,
        (v - (GRID - 1) / 2) * STEP
      );
      redDots.push(dot);
      scene.add(dot);
    }
  }
}

// Animate
function animate() {
  requestAnimationFrame(animate);
  time += 0.2;
  if (!mesh) {
    renderer.render(scene, camera);
    return;
  }

  const { matrix, maxCount, GRID } = mesh.userData;
  const pos   = mesh.geometry.attributes.position;
  const gridX = mesh.geometry.parameters.widthSegments + 1;
  const gridY = mesh.geometry.parameters.heightSegments + 1;

  for (let i = 0; i < pos.count; i++) {
    const x = i % gridX;
    const y = Math.floor(i / gridX);
    const u = Math.floor(x / (gridX / GRID));
    const v = Math.floor(y / (gridY / GRID));
    const amp  = matrix[u]?.[v] ? matrix[u][v] / maxCount : 0;
    const wave = Math.sin((x + time) * 0.4) * Math.cos((y + time) * 0.4);
    pos.setZ(i, amp * wave * 20);
  }

  // Move dots with amplitude
  redDots.forEach((dot, idx) => {
    const u = idx % GRID;
    const v = Math.floor(idx / GRID);
    const amp = matrix[u]?.[v] ? matrix[u][v] / maxCount : 0;
    dot.position.y = amp * 20 + 0.5;
  });

  pos.needsUpdate = true;
  controls.update();
  renderer.render(scene, camera);
}

// Main
loadQuantumData().then(counts => {
  const entries = parseEntries(counts);
  const { matrix, maxCount } = buildMatrix(entries);

  createWaveSurface(matrix, maxCount);
  animate();
});
