Wave Geometry Controls for my arXiv 5-Bit Circuit Part 3

Across these five controls, the main lesson is that the paper’s four-lane interference geometry behaves like a specific coupled-oracle signature, not a generic artifact of hardware noise, QFT texture, or one modular-adder branch. When only one logical register is Fourier-transformed, the geometry collapses into one-sided row or axis structure, when only aP or only bQ is kept, each branch still produces organized wave lanes, but not the recoverable a + 7b ≡ 0 (mod 32) pattern, and when p is transformed in the Triple QFT test, the clean (a,b) projection dissolves. Taken together, the tests suggest that the original result depends on all three ingredients working together: the full aP + bQ oracle, aligned dual QFTs on a and b, and leaving the point register out of the Fourier readout so the hidden relation projects cleanly into the measured (a,b) plane.
All circuits were run on @IBM 156-qubit ibm_kingston backend (Heron r2). All circuits, calibration CSVs, raw results, backend data, and Three.js render code are open sourced on Qwork and GitHub. You can interact with these renders on the Waves page.

Code:

# QFT on a Only, Real Oracle
# Imports
import logging, json
from math import gcd
import numpy as np
from qiskit import QuantumCircuit, QuantumRegister, ClassicalRegister, transpile
from qiskit.circuit.library import UnitaryGate, QFT
from qiskit_ibm_runtime import QiskitRuntimeService, SamplerV2
import pandas as pd

# IBMQ
TOKEN = ""
INSTANCE = ""
BACKEND  = "ibm_kingston"
CAL_CSV  = "/Users/steventippeconnic/Downloads/ibm_kingston_calibrations_2026-04-29T02_58_47Z.csv"
SHOTS    = 16384

# Toy-curve parameters  (order-32 subgroup of E(F_p))
ORDER = 32  # |E(F_p)| = 32
P_IDX = 1   # Generator P  -> index 1
Q_IDX = 23  # Public point Q = kP, here “23 mod 32” for k = 7

# Logging helper
logging.basicConfig(level=logging.INFO,
                    format="%(asctime)s | %(levelname)s | %(message)s")
log = logging.getLogger(__name__)

# Calibration-based qubit pick
def best_qubits(csv_path: str, n: int) -> list[int]:
    df = pd.read_csv(csv_path)
    df.columns = df.columns.str.strip()
    winners = (
        df.sort_values(["√x (sx) error", "T1 (us)", "T2 (us)"],
                       ascending=[True, False, False])
        ["Qubit"].head(n).tolist()
    )
    log.info("Best physical qubits: %s", winners)
    return winners

N_Q = 5
N_Q_TOTAL = N_Q * 3  # a, b, point
PHYSICAL = best_qubits(CAL_CSV, N_Q_TOTAL)

# Constant-adder modulo 32 as a reusable gate
def add_const_mod32_gate(c: int) -> UnitaryGate:
    """Return a 5-qubit gate that maps |x⟩ ↦ |x+c (mod 32)⟩."""
    mat = np.zeros((32, 32))
    for x in range(32):
        mat[(x + c) % 32, x] = 1
    return UnitaryGate(mat, label=f"+{c}")

ADDERS = {c: add_const_mod32_gate(c) for c in range(1, 32)}

def controlled_add(qc: QuantumCircuit, ctrl_qubit, point_reg, constant):
    """Apply |x⟩ → |x+constant (mod 32)⟩ controlled by one qubit."""
    qc.append(ADDERS[constant].control(), [ctrl_qubit, *point_reg])

# Oracle  U_f : |a⟩|b⟩|0⟩ ⟶ |a⟩|b⟩|aP + bQ⟩   (index arithmetic mod 32)
def ecdlp_oracle(qc, a_reg, b_reg, point_reg):
    for i in range(N_Q):
        constant = (P_IDX * (1 << i)) % ORDER
        if constant:
            controlled_add(qc, a_reg[i], point_reg, constant)

    for i in range(N_Q):
        constant = (Q_IDX * (1 << i)) % ORDER
        if constant:
            controlled_add(qc, b_reg[i], point_reg, constant)

# Build the QFT-on-a-only circuit
def shor_ecdlp_qft_a_only_circuit() -> QuantumCircuit:
    a = QuantumRegister(N_Q, "a")
    b = QuantumRegister(N_Q, "b")
    p = QuantumRegister(N_Q, "p")
    c = ClassicalRegister(N_Q * 2, "c")
    qc = QuantumCircuit(a, b, p, c, name="ECDLP_32pts_QFT_A_Only")

    qc.h(a)
    qc.h(b)
    ecdlp_oracle(qc, a, b, p)
    qc.barrier()

    # Apply QFT only to a; leave b in computational basis
    qc.append(QFT(N_Q, do_swaps=False), a)

    qc.measure(a, c[:N_Q])
    qc.measure(b, c[N_Q:])

    return qc

# IBM Runtime execution
service = QiskitRuntimeService(channel="ibm_cloud",
                               token=TOKEN,
                               instance=INSTANCE)
backend = service.backend(BACKEND)
log.info("Backend → %s", backend.name)

qc_raw = shor_ecdlp_qft_a_only_circuit()
trans = transpile(qc_raw,
                  backend=backend,
                  initial_layout=PHYSICAL,
                  optimization_level=3)
log.info("Circuit depth %d, gate counts %s", trans.depth(), trans.count_ops())

sampler = SamplerV2(mode=backend)
job = sampler.run([trans], shots=SHOTS)
result = job.result()

# Classical post-processing
creg_name = trans.cregs[0].name
counts_raw = result[0].data.__getattribute__(creg_name).get_counts()

def bits_to_int(bs):
    return int(bs[::-1], 2)

counts = {(bits_to_int(k[N_Q:]), bits_to_int(k[:N_Q])): v
          for k, v in counts_raw.items()}
top = sorted(counts.items(), key=lambda kv: kv[1], reverse=True)

# Diagnostic
top_raw_diagnostics = []
for (a_val, b_val), freq in top[:100]:
    if gcd(b_val, ORDER) == 1:
        inv_b = pow(b_val, -1, ORDER)
        diagnostic_k = (-a_val * inv_b) % ORDER
    else:
        diagnostic_k = None

    top_raw_diagnostics.append(((a_val, b_val), diagnostic_k, freq))

# Check for diagnostic k = 7 in the raw top 100 peaks
found_k7 = any(k == 7 for (_, k, _) in top_raw_diagnostics)

if found_k7:

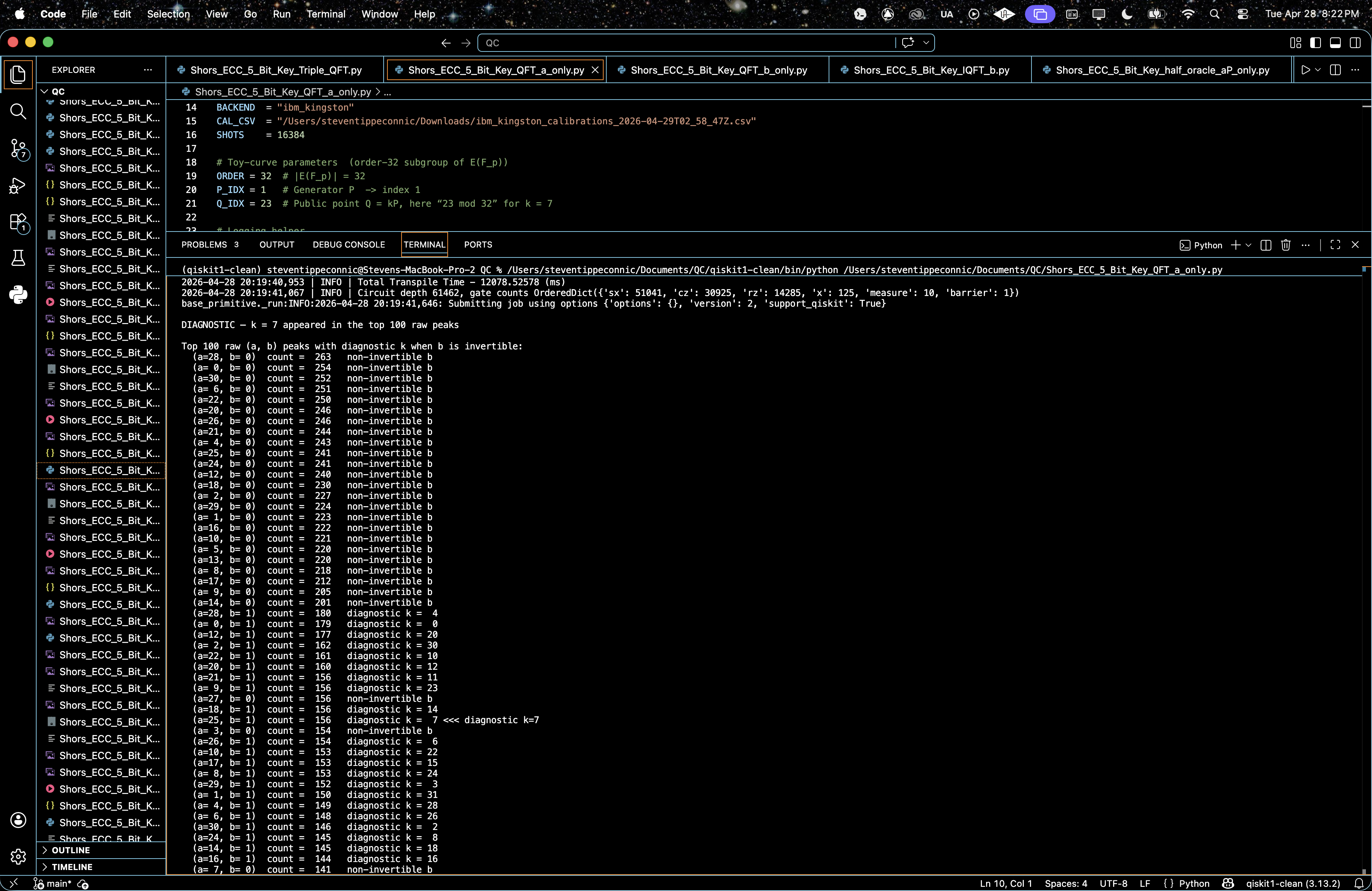

    print("\nDIAGNOSTIC — k = 7 appeared in the top 100 raw peaks\n")
else:

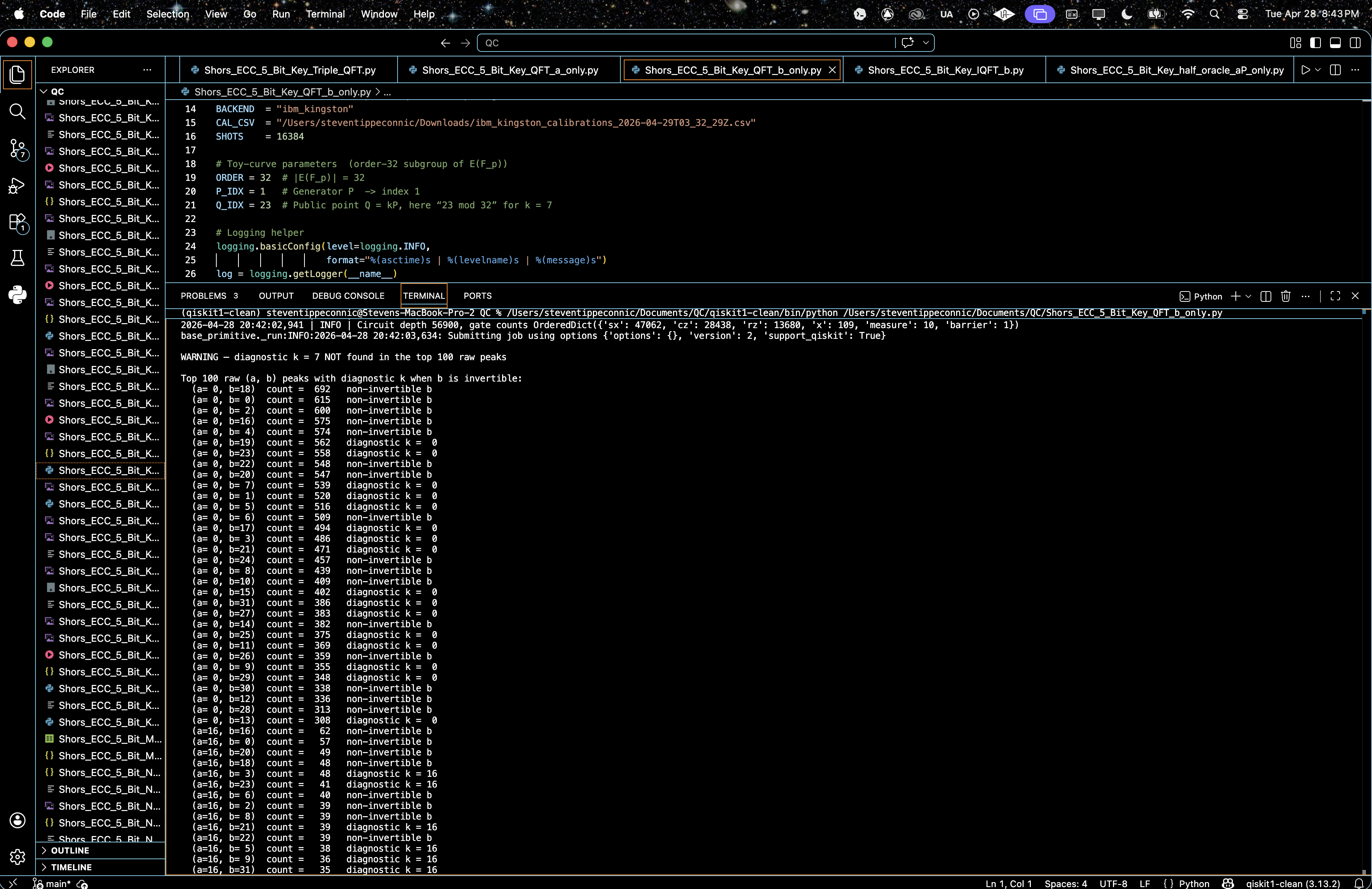

    print("\nWARNING — diagnostic k = 7 NOT found in the top 100 raw peaks\n")

print("Top 100 raw (a, b) peaks with diagnostic k when b is invertible:")
for (a, b), k, count in top_raw_diagnostics:
    if k is None:
        k_text = "non-invertible b"
        tag = ""
    else:
        k_text = f"diagnostic k = {k:2}"
        tag = " <<< diagnostic k=7" if k == 7 else ""

    print(f"  (a={a:2}, b={b:2})  count = {count:4}   {k_text}{tag}")

# Save raw data
out = {
    "experiment": "ECDLP_32pts_QFT_A_Only",
    "backend": backend.name,
    "physical_qubits": PHYSICAL,
    "shots": SHOTS,
    "counts": counts_raw,
    "top_100_raw_peak_diagnostics": [
        {
            "a": a,
            "b": b,
            "count": count,
            "diagnostic_k": k
        }
        for ((a, b), k, count) in top_raw_diagnostics
    ]
}
JSON_PATH = "/Users/steventippeconnic/Documents/QC/Shors_ECC_5_Bit_QFT_A_Only_0.json"
with open(JSON_PATH, "w") as fp:
    json.dump(out, fp, indent=4)
log.info("Results saved → %s", JSON_PATH)

# End


///////////////////////////////////////////////////

# QFT on b Only, Real Oracle
# Imports
import logging, json
from math import gcd
import numpy as np
from qiskit import QuantumCircuit, QuantumRegister, ClassicalRegister, transpile
from qiskit.circuit.library import UnitaryGate, QFT
from qiskit_ibm_runtime import QiskitRuntimeService, SamplerV2
import pandas as pd

# IBMQ
TOKEN = ""
INSTANCE = ""
BACKEND  = "ibm_kingston"
CAL_CSV  = "/Users/steventippeconnic/Downloads/ibm_kingston_calibrations_2026-04-29T03_32_29Z.csv"
SHOTS    = 16384

# Toy-curve parameters  (order-32 subgroup of E(F_p))
ORDER = 32  # |E(F_p)| = 32
P_IDX = 1   # Generator P  -> index 1
Q_IDX = 23  # Public point Q = kP, here “23 mod 32” for k = 7

# Logging helper
logging.basicConfig(level=logging.INFO,
                    format="%(asctime)s | %(levelname)s | %(message)s")
log = logging.getLogger(__name__)

# Calibration-based qubit pick
def best_qubits(csv_path: str, n: int) -> list[int]:
    df = pd.read_csv(csv_path)
    df.columns = df.columns.str.strip()
    winners = (
        df.sort_values(["√x (sx) error", "T1 (us)", "T2 (us)"],
                       ascending=[True, False, False])
        ["Qubit"].head(n).tolist()
    )
    log.info("Best physical qubits: %s", winners)
    return winners

N_Q = 5
N_Q_TOTAL = N_Q * 3  # a, b, point
PHYSICAL = best_qubits(CAL_CSV, N_Q_TOTAL)

# Constant-adder modulo 32 as a reusable gate
def add_const_mod32_gate(c: int) -> UnitaryGate:
    """Return a 5-qubit gate that maps |x⟩ ↦ |x+c (mod 32)⟩."""
    mat = np.zeros((32, 32))
    for x in range(32):
        mat[(x + c) % 32, x] = 1
    return UnitaryGate(mat, label=f"+{c}")

ADDERS = {c: add_const_mod32_gate(c) for c in range(1, 32)}

def controlled_add(qc: QuantumCircuit, ctrl_qubit, point_reg, constant):
    """Apply |x⟩ → |x+constant (mod 32)⟩ controlled by one qubit."""
    qc.append(ADDERS[constant].control(), [ctrl_qubit, *point_reg])

# Oracle  U_f : |a⟩|b⟩|0⟩ ⟶ |a⟩|b⟩|aP + bQ⟩   (index arithmetic mod 32)
def ecdlp_oracle(qc, a_reg, b_reg, point_reg):
    for i in range(N_Q):
        constant = (P_IDX * (1 << i)) % ORDER
        if constant:
            controlled_add(qc, a_reg[i], point_reg, constant)

    for i in range(N_Q):
        constant = (Q_IDX * (1 << i)) % ORDER
        if constant:
            controlled_add(qc, b_reg[i], point_reg, constant)

# Build the QFT-on-b-only circuit
def shor_ecdlp_qft_b_only_circuit() -> QuantumCircuit:
    a = QuantumRegister(N_Q, "a")
    b = QuantumRegister(N_Q, "b")
    p = QuantumRegister(N_Q, "p")
    c = ClassicalRegister(N_Q * 2, "c")
    qc = QuantumCircuit(a, b, p, c, name="ECDLP_32pts_QFT_B_Only")

    qc.h(a)
    qc.h(b)
    ecdlp_oracle(qc, a, b, p)
    qc.barrier()

    # Apply QFT only to b; leave a in computational basis
    qc.append(QFT(N_Q, do_swaps=False), b)

    qc.measure(a, c[:N_Q])
    qc.measure(b, c[N_Q:])

    return qc

# IBM Runtime execution
service = QiskitRuntimeService(channel="ibm_cloud",
                               token=TOKEN,
                               instance=INSTANCE)
backend = service.backend(BACKEND)
log.info("Backend → %s", backend.name)

qc_raw = shor_ecdlp_qft_b_only_circuit()
trans = transpile(qc_raw,
                  backend=backend,
                  initial_layout=PHYSICAL,
                  optimization_level=3)
log.info("Circuit depth %d, gate counts %s", trans.depth(), trans.count_ops())

sampler = SamplerV2(mode=backend)
job = sampler.run([trans], shots=SHOTS)
result = job.result()

# Classical post-processing
creg_name = trans.cregs[0].name
counts_raw = result[0].data.__getattribute__(creg_name).get_counts()

def bits_to_int(bs):
    return int(bs[::-1], 2)

counts = {(bits_to_int(k[N_Q:]), bits_to_int(k[:N_Q])): v
          for k, v in counts_raw.items()}
top = sorted(counts.items(), key=lambda kv: kv[1], reverse=True)

# Diagnostic
top_raw_diagnostics = []
for (a_val, b_val), freq in top[:100]:
    if gcd(b_val, ORDER) == 1:
        inv_b = pow(b_val, -1, ORDER)
        diagnostic_k = (-a_val * inv_b) % ORDER
    else:
        diagnostic_k = None

    top_raw_diagnostics.append(((a_val, b_val), diagnostic_k, freq))

# Check for diagnostic k = 7 in the raw top 100 peaks
found_k7 = any(k == 7 for (_, k, _) in top_raw_diagnostics)

if found_k7:
    print("\nDIAGNOSTIC — k = 7 appeared in the top 100 raw peaks\n")
else:
    print("\nWARNING — diagnostic k = 7 NOT found in the top 100 raw peaks\n")

print("Top 100 raw (a, b) peaks with diagnostic k when b is invertible:")
for (a, b), k, count in top_raw_diagnostics:
    if k is None:
        k_text = "non-invertible b"
        tag = ""
    else:
        k_text = f"diagnostic k = {k:2}"
        tag = " <<< diagnostic k=7" if k == 7 else ""

    print(f"  (a={a:2}, b={b:2})  count = {count:4}   {k_text}{tag}")

# Save raw data
out = {
    "experiment": "ECDLP_32pts_QFT_B_Only",
    "backend": backend.name,
    "physical_qubits": PHYSICAL,
    "shots": SHOTS,
    "counts": counts_raw,
    "top_100_raw_peak_diagnostics": [
        {
            "a": a,
            "b": b,
            "count": count,
            "diagnostic_k": k
        }
        for ((a, b), k, count) in top_raw_diagnostics
    ]
}
JSON_PATH = "/Users/steventippeconnic/Documents/QC/Shors_ECC_5_Bit_QFT_B_Only_0.json"
with open(JSON_PATH, "w") as fp:
    json.dump(out, fp, indent=4)
log.info("Results saved → %s", JSON_PATH)

# End


//////////////////////////////////////////////////////


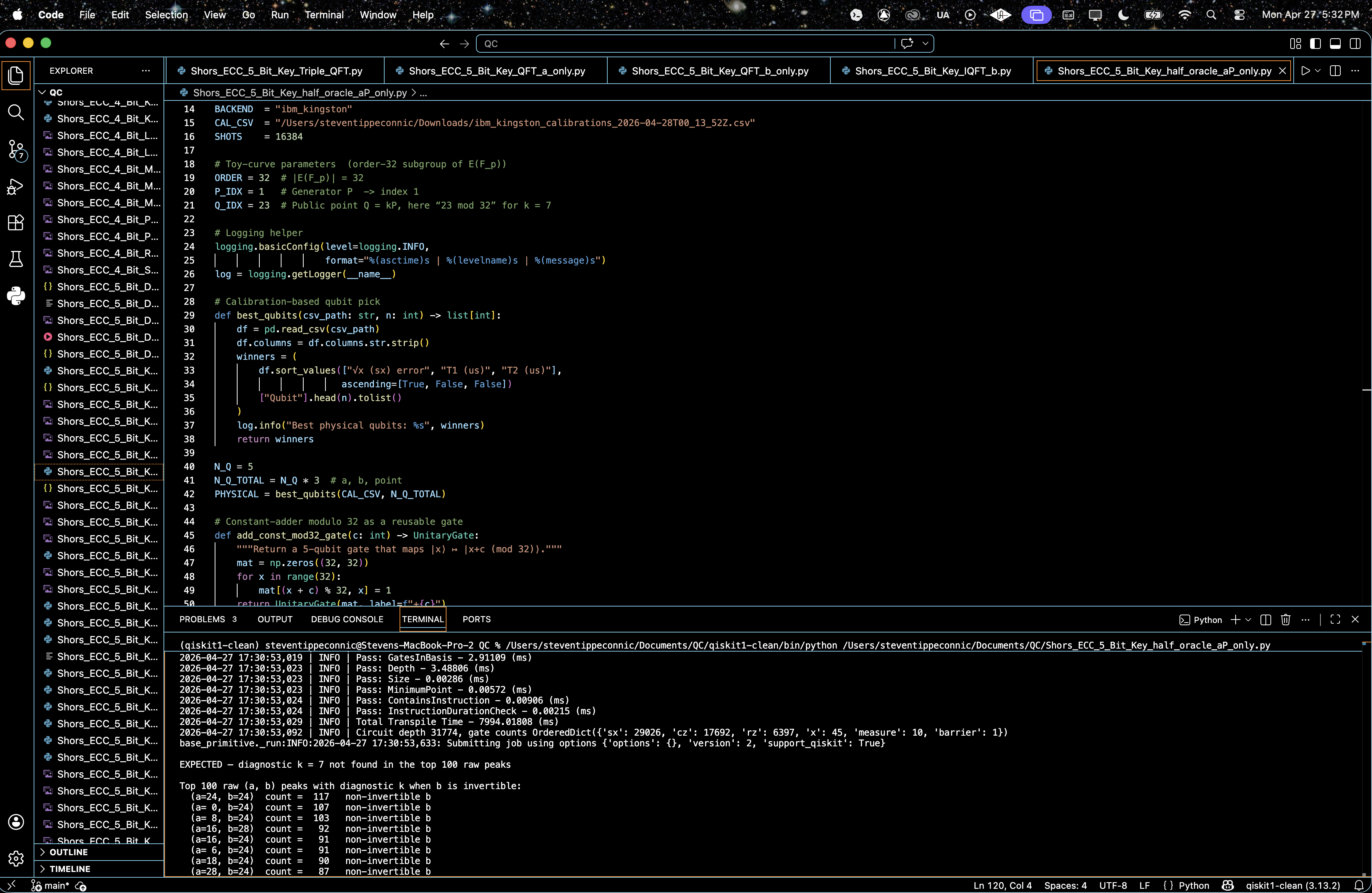

# Half-Oracle aP Only, Dual QFTs
# Imports
import logging, json
from math import gcd
import numpy as np
from qiskit import QuantumCircuit, QuantumRegister, ClassicalRegister, transpile
from qiskit.circuit.library import UnitaryGate, QFT
from qiskit_ibm_runtime import QiskitRuntimeService, SamplerV2
import pandas as pd

# IBMQ
TOKEN = ""
INSTANCE = ""
BACKEND  = "ibm_kingston"
CAL_CSV  = "/Users/steventippeconnic/Downloads/ibm_kingston_calibrations_2026-04-28T00_13_52Z.csv"
SHOTS    = 16384

# Toy-curve parameters  (order-32 subgroup of E(F_p))
ORDER = 32  # |E(F_p)| = 32
P_IDX = 1   # Generator P  -> index 1
Q_IDX = 23  # Public point Q = kP, here “23 mod 32” for k = 7

# Logging helper
logging.basicConfig(level=logging.INFO,
                    format="%(asctime)s | %(levelname)s | %(message)s")
log = logging.getLogger(__name__)

# Calibration-based qubit pick
def best_qubits(csv_path: str, n: int) -> list[int]:
    df = pd.read_csv(csv_path)
    df.columns = df.columns.str.strip()
    winners = (
        df.sort_values(["√x (sx) error", "T1 (us)", "T2 (us)"],
                       ascending=[True, False, False])
        ["Qubit"].head(n).tolist()
    )
    log.info("Best physical qubits: %s", winners)
    return winners

N_Q = 5
N_Q_TOTAL = N_Q * 3  # a, b, point
PHYSICAL = best_qubits(CAL_CSV, N_Q_TOTAL)

# Constant-adder modulo 32 as a reusable gate
def add_const_mod32_gate(c: int) -> UnitaryGate:
    """Return a 5-qubit gate that maps |x⟩ ↦ |x+c (mod 32)⟩."""
    mat = np.zeros((32, 32))
    for x in range(32):
        mat[(x + c) % 32, x] = 1
    return UnitaryGate(mat, label=f"+{c}")

ADDERS = {c: add_const_mod32_gate(c) for c in range(1, 32)}

def controlled_add(qc: QuantumCircuit, ctrl_qubit, point_reg, constant):
    """Apply |x⟩ → |x+constant (mod 32)⟩ controlled by one qubit."""
    qc.append(ADDERS[constant].control(), [ctrl_qubit, *point_reg])

# Half-oracle A: |a⟩|b⟩|0⟩ ⟶ |a⟩|b⟩|aP⟩
# The bQ branch is deliberately removed.
def ecdlp_oracle_aP_only(qc, a_reg, b_reg, point_reg):
    for i in range(N_Q):
        constant = (P_IDX * (1 << i)) % ORDER
        if constant:
            controlled_add(qc, a_reg[i], point_reg, constant)

# Build the half-oracle aP-only circuit
def shor_ecdlp_half_oracle_aP_only_circuit() -> QuantumCircuit:
    a = QuantumRegister(N_Q, "a")
    b = QuantumRegister(N_Q, "b")
    p = QuantumRegister(N_Q, "p")
    c = ClassicalRegister(N_Q * 2, "c")
    qc = QuantumCircuit(a, b, p, c, name="ECDLP_32pts_HalfOracle_aP_Only")

    qc.h(a)
    qc.h(b)

    # Only the aP branch of the oracle is applied.
    ecdlp_oracle_aP_only(qc, a, b, p)

    qc.barrier()

    # QFTs
    qc.append(QFT(N_Q, do_swaps=False), a)
    qc.append(QFT(N_Q, do_swaps=False), b)

    qc.measure(a, c[:N_Q])
    qc.measure(b, c[N_Q:])

    return qc

# IBM Runtime execution
service = QiskitRuntimeService(channel="ibm_cloud",
                               token=TOKEN,
                               instance=INSTANCE)
backend = service.backend(BACKEND)
log.info("Backend → %s", backend.name)

qc_raw = shor_ecdlp_half_oracle_aP_only_circuit()
trans = transpile(qc_raw,
                  backend=backend,
                  initial_layout=PHYSICAL,
                  optimization_level=3)
log.info("Circuit depth %d, gate counts %s", trans.depth(), trans.count_ops())

sampler = SamplerV2(mode=backend)
job = sampler.run([trans], shots=SHOTS)
result = job.result()

# Classical post-processing
creg_name = trans.cregs[0].name
counts_raw = result[0].data.__getattribute__(creg_name).get_counts()

def bits_to_int(bs):
    return int(bs[::-1], 2)

counts = {(bits_to_int(k[N_Q:]), bits_to_int(k[:N_Q])): v
          for k, v in counts_raw.items()}
top = sorted(counts.items(), key=lambda kv: kv[1], reverse=True)

# Diagnostic
top_raw_diagnostics = []
for (a_val, b_val), freq in top[:100]:
    if gcd(b_val, ORDER) == 1:
        inv_b = pow(b_val, -1, ORDER)
        diagnostic_k = (-a_val * inv_b) % ORDER
    else:
        diagnostic_k = None

    top_raw_diagnostics.append(((a_val, b_val), diagnostic_k, freq))

# Check for diagnostic k = 7
found_k7 = any(k == 7 for (_, k, _) in top_raw_diagnostics)

if found_k7:
    print("\nDIAGNOSTIC — k = 7 appeared in the top 100 raw peaks\n")
else:
    print("\nEXPECTED — diagnostic k = 7 not found in the top 100 raw peaks\n")

print("Top 100 raw (a, b) peaks with diagnostic k when b is invertible:")
for (a, b), k, count in top_raw_diagnostics:
    if k is None:
        k_text = "non-invertible b"
        tag = ""
    else:
        k_text = f"diagnostic k = {k:2}"
        tag = " <<< diagnostic k=7" if k == 7 else ""

    print(f"  (a={a:2}, b={b:2})  count = {count:4}   {k_text}{tag}")

# Save raw data
out = {
    "experiment": "ECDLP_32pts_HalfOracle_aP_Only",
    "backend": backend.name,
    "physical_qubits": PHYSICAL,
    "shots": SHOTS,
    "counts": counts_raw,
    "top_100_raw_peak_diagnostics": [
        {
            "a": a,
            "b": b,
            "count": count,
            "diagnostic_k": k
        }
        for ((a, b), k, count) in top_raw_diagnostics
    ]
}
JSON_PATH = "/Users/steventippeconnic/Documents/QC/Shors_ECC_5_Bit_Key_HalfOracle_aP_Only_0.json"
with open(JSON_PATH, "w") as fp:
    json.dump(out, fp, indent=4)
log.info("Results saved → %s", JSON_PATH)

# End

//////////////////////////////////////////////////////////////

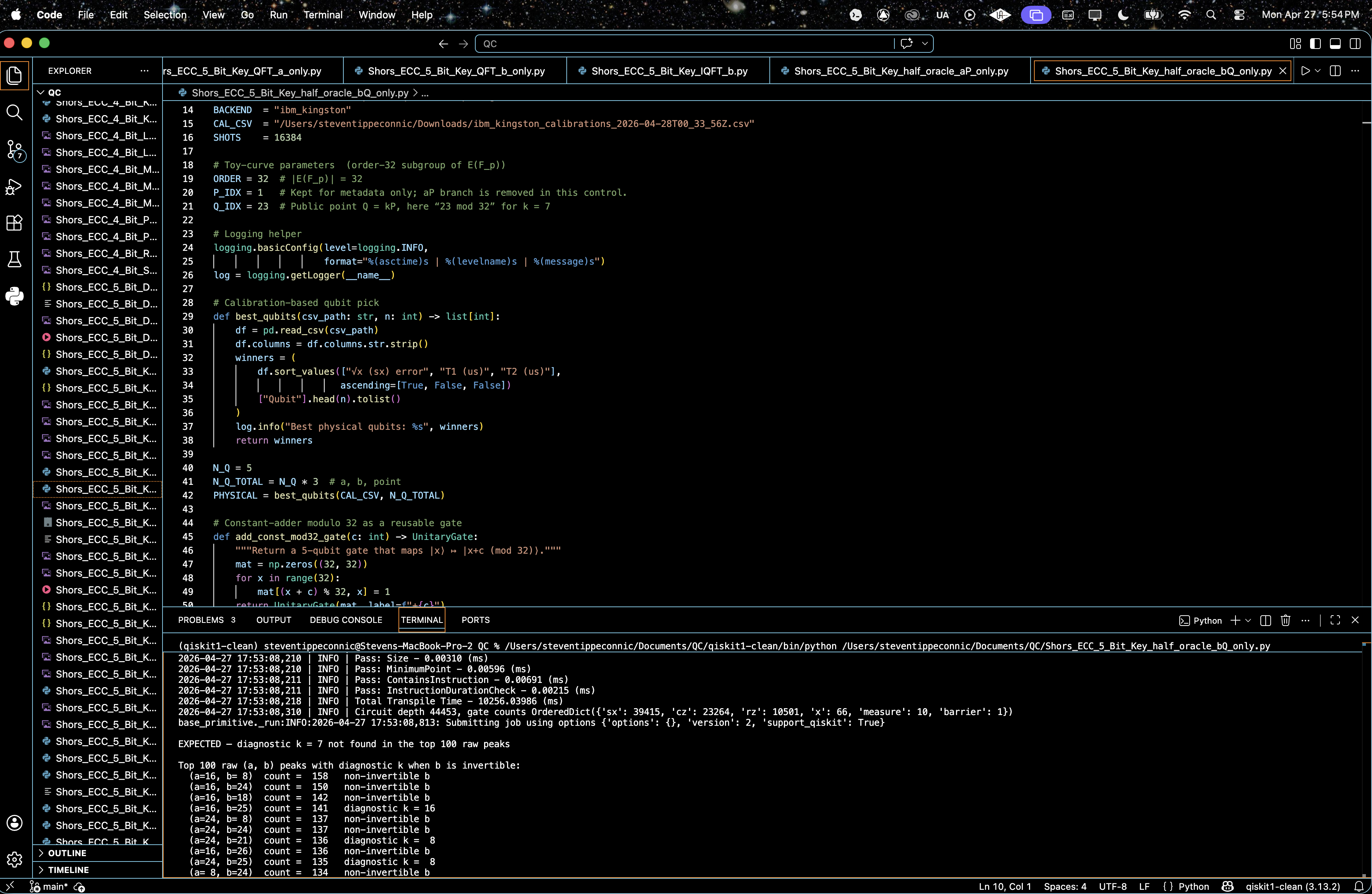

# Half-Oracle bQ Only, Dual QFTs
# Imports
import logging, json
from math import gcd
import numpy as np
from qiskit import QuantumCircuit, QuantumRegister, ClassicalRegister, transpile
from qiskit.circuit.library import UnitaryGate, QFT
from qiskit_ibm_runtime import QiskitRuntimeService, SamplerV2
import pandas as pd

# IBMQ
TOKEN = ""
INSTANCE = ""
BACKEND  = "ibm_kingston"
CAL_CSV  = "/Users/steventippeconnic/Downloads/ibm_kingston_calibrations_2026-04-28T00_33_56Z.csv"
SHOTS    = 16384

# Toy-curve parameters  (order-32 subgroup of E(F_p))
ORDER = 32  # |E(F_p)| = 32
P_IDX = 1   # Kept for metadata only; aP branch is removed in this control.
Q_IDX = 23  # Public point Q = kP, here “23 mod 32” for k = 7

# Logging helper
logging.basicConfig(level=logging.INFO,
                    format="%(asctime)s | %(levelname)s | %(message)s")
log = logging.getLogger(__name__)

# Calibration-based qubit pick
def best_qubits(csv_path: str, n: int) -> list[int]:
    df = pd.read_csv(csv_path)
    df.columns = df.columns.str.strip()
    winners = (
        df.sort_values(["√x (sx) error", "T1 (us)", "T2 (us)"],
                       ascending=[True, False, False])
        ["Qubit"].head(n).tolist()
    )
    log.info("Best physical qubits: %s", winners)
    return winners

N_Q = 5
N_Q_TOTAL = N_Q * 3  # a, b, point
PHYSICAL = best_qubits(CAL_CSV, N_Q_TOTAL)

# Constant-adder modulo 32 as a reusable gate
def add_const_mod32_gate(c: int) -> UnitaryGate:
    """Return a 5-qubit gate that maps |x⟩ ↦ |x+c (mod 32)⟩."""
    mat = np.zeros((32, 32))
    for x in range(32):
        mat[(x + c) % 32, x] = 1
    return UnitaryGate(mat, label=f"+{c}")

ADDERS = {c: add_const_mod32_gate(c) for c in range(1, 32)}

def controlled_add(qc: QuantumCircuit, ctrl_qubit, point_reg, constant):
    """Apply |x⟩ → |x+constant (mod 32)⟩ controlled by one qubit."""
    qc.append(ADDERS[constant].control(), [ctrl_qubit, *point_reg])

# Half-oracle B: |a⟩|b⟩|0⟩ ⟶ |a⟩|b⟩|bQ⟩
# The aP branch is deliberately removed.
def ecdlp_oracle_bQ_only(qc, a_reg, b_reg, point_reg):
    for i in range(N_Q):
        constant = (Q_IDX * (1 << i)) % ORDER
        if constant:
            controlled_add(qc, b_reg[i], point_reg, constant)

# Build the half-oracle bQ-only circuit
def shor_ecdlp_half_oracle_bQ_only_circuit() -> QuantumCircuit:
    a = QuantumRegister(N_Q, "a")
    b = QuantumRegister(N_Q, "b")
    p = QuantumRegister(N_Q, "p")
    c = ClassicalRegister(N_Q * 2, "c")
    qc = QuantumCircuit(a, b, p, c, name="ECDLP_32pts_HalfOracle_bQ_Only")

    qc.h(a)
    qc.h(b)

    # Only the bQ branch of the oracle is applied.
    ecdlp_oracle_bQ_only(qc, a, b, p)

    qc.barrier()

    # QFTs
    qc.append(QFT(N_Q, do_swaps=False), a)
    qc.append(QFT(N_Q, do_swaps=False), b)

    qc.measure(a, c[:N_Q])
    qc.measure(b, c[N_Q:])

    return qc

# IBM Runtime execution
service = QiskitRuntimeService(channel="ibm_cloud",
                               token=TOKEN,
                               instance=INSTANCE)
backend = service.backend(BACKEND)
log.info("Backend → %s", backend.name)

qc_raw = shor_ecdlp_half_oracle_bQ_only_circuit()
trans = transpile(qc_raw,
                  backend=backend,
                  initial_layout=PHYSICAL,
                  optimization_level=3)
log.info("Circuit depth %d, gate counts %s", trans.depth(), trans.count_ops())

sampler = SamplerV2(mode=backend)
job = sampler.run([trans], shots=SHOTS)
result = job.result()

# Classical post-processing
creg_name = trans.cregs[0].name
counts_raw = result[0].data.__getattribute__(creg_name).get_counts()

def bits_to_int(bs):
    return int(bs[::-1], 2)

counts = {(bits_to_int(k[N_Q:]), bits_to_int(k[:N_Q])): v
          for k, v in counts_raw.items()}
top = sorted(counts.items(), key=lambda kv: kv[1], reverse=True)

# Diagnostic
top_raw_diagnostics = []
for (a_val, b_val), freq in top[:100]:
    if gcd(b_val, ORDER) == 1:
        inv_b = pow(b_val, -1, ORDER)
        diagnostic_k = (-a_val * inv_b) % ORDER
    else:
        diagnostic_k = None

    top_raw_diagnostics.append(((a_val, b_val), diagnostic_k, freq))

# Check for diagnostic k = 7
found_k7 = any(k == 7 for (_, k, _) in top_raw_diagnostics)

if found_k7:
    print("\nDIAGNOSTIC — k = 7 appeared in the top 100 raw peaks\n")
else:
    print("\nEXPECTED — diagnostic k = 7 not found in the top 100 raw peaks\n")

print("Top 100 raw (a, b) peaks with diagnostic k when b is invertible:")
for (a, b), k, count in top_raw_diagnostics:
    if k is None:
        k_text = "non-invertible b"
        tag = ""
    else:
        k_text = f"diagnostic k = {k:2}"
        tag = " <<< diagnostic k=7" if k == 7 else ""

    print(f"  (a={a:2}, b={b:2})  count = {count:4}   {k_text}{tag}")

# Save raw data
out = {
    "experiment": "ECDLP_32pts_HalfOracle_bQ_Only",
    "backend": backend.name,
    "physical_qubits": PHYSICAL,
    "shots": SHOTS,
    "counts": counts_raw,
    "top_100_raw_peak_diagnostics": [
        {
            "a": a,
            "b": b,
            "count": count,
            "diagnostic_k": k
        }
        for ((a, b), k, count) in top_raw_diagnostics
    ]
}
JSON_PATH = "/Users/steventippeconnic/Documents/QC/Shors_ECC_5_Bit_Key_HalfOracle_bQ_Only_0.json"
with open(JSON_PATH, "w") as fp:
    json.dump(out, fp, indent=4)
log.info("Results saved → %s", JSON_PATH)

# End

/////////////////////////////////////////////////////////////

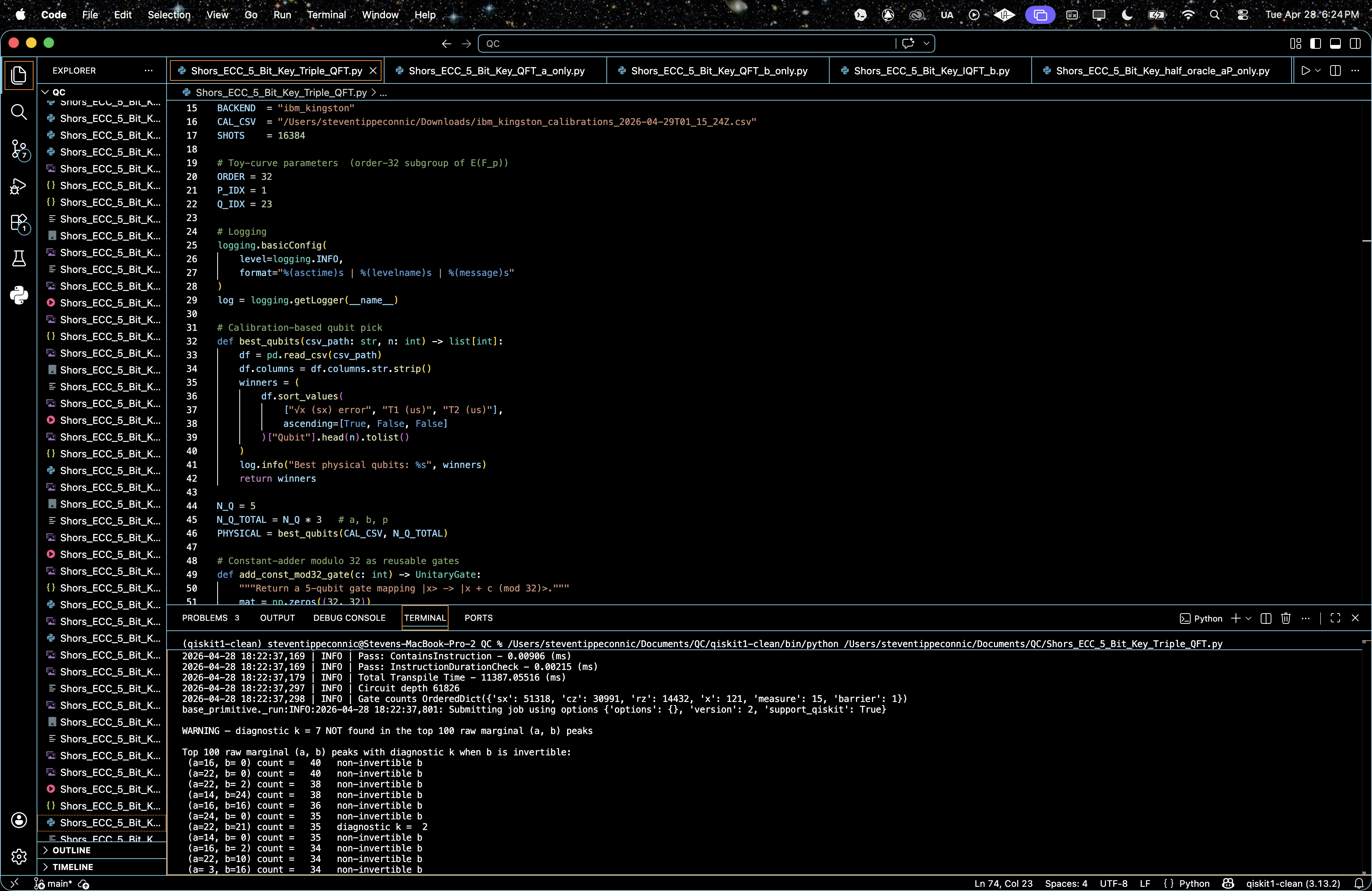

# Triple QFT, Real Oracle
# Imports
import logging
import json
from math import gcd
import numpy as np
import pandas as pd
from qiskit import QuantumCircuit, QuantumRegister, ClassicalRegister, transpile
from qiskit.circuit.library import UnitaryGate, QFT
from qiskit_ibm_runtime import QiskitRuntimeService, SamplerV2

# IBMQ
TOKEN = ""
INSTANCE = ""
BACKEND  = "ibm_kingston"
CAL_CSV  = "/Users/steventippeconnic/Downloads/ibm_kingston_calibrations_2026-04-29T01_15_24Z.csv"
SHOTS    = 16384

# Toy-curve parameters  (order-32 subgroup of E(F_p))
ORDER = 32
P_IDX = 1
Q_IDX = 23

# Logging
logging.basicConfig(
    level=logging.INFO,
    format="%(asctime)s | %(levelname)s | %(message)s"
)
log = logging.getLogger(__name__)

# Calibration-based qubit pick
def best_qubits(csv_path: str, n: int) -> list[int]:
    df = pd.read_csv(csv_path)
    df.columns = df.columns.str.strip()
    winners = (
        df.sort_values(
            ["√x (sx) error", "T1 (us)", "T2 (us)"],
            ascending=[True, False, False]
        )["Qubit"].head(n).tolist()
    )
    log.info("Best physical qubits: %s", winners)
    return winners

N_Q = 5
N_Q_TOTAL = N_Q * 3   # a, b, p
PHYSICAL = best_qubits(CAL_CSV, N_Q_TOTAL)

# Constant-adder modulo 32 as reusable gates
def add_const_mod32_gate(c: int) -> UnitaryGate:
    """Return a 5-qubit gate mapping |x> -> |x + c (mod 32)>."""
    mat = np.zeros((32, 32))
    for x in range(32):
        mat[(x + c) % 32, x] = 1
    return UnitaryGate(mat, label=f"+{c}")

ADDERS = {c: add_const_mod32_gate(c) for c in range(1, 32)}

def controlled_add(qc: QuantumCircuit, ctrl_qubit, point_reg, constant: int) -> None:
    """Apply |x> -> |x + constant (mod 32)> controlled by one qubit."""
    qc.append(ADDERS[constant].control(), [ctrl_qubit, *point_reg])

# Oracle U_f : |a>|b>|0> -> |a>|b>|aP + bQ>
def ecdlp_oracle(qc: QuantumCircuit, a_reg, b_reg, point_reg) -> None:
    for i in range(N_Q):
        constant = (P_IDX * (1 << i)) % ORDER
        if constant:
            controlled_add(qc, a_reg[i], point_reg, constant)

    for i in range(N_Q):
        constant = (Q_IDX * (1 << i)) % ORDER
        if constant:
            controlled_add(qc, b_reg[i], point_reg, constant)

# Build the triple-QFT circuit
def shor_ecdlp_triple_qft_circuit() -> QuantumCircuit:
    a = QuantumRegister(N_Q, "a")
    b = QuantumRegister(N_Q, "b")
    p = QuantumRegister(N_Q, "p")
    c = ClassicalRegister(N_Q * 3, "c")   # now measuring all 15 qubits

    qc = QuantumCircuit(a, b, p, c, name="ECDLP_32pts_TripleQFT")

    # Superposition
    qc.h(a)
    qc.h(b)

    # Oracle
    ecdlp_oracle(qc, a, b, p)

    # Barrier
    qc.barrier()

    # Triple QFT: a, b, and p
    qc.append(QFT(N_Q, do_swaps=False), a)
    qc.append(QFT(N_Q, do_swaps=False), b)
    qc.append(QFT(N_Q, do_swaps=False), p)

    # Measure all 15 qubits
    qc.measure(a, c[:N_Q])
    qc.measure(b, c[N_Q:2 * N_Q])
    qc.measure(p, c[2 * N_Q:3 * N_Q])

    return qc

# Runtime execution
service = QiskitRuntimeService(
    channel="ibm_cloud",
    token=TOKEN,
    instance=INSTANCE
)

backend = service.backend(BACKEND)
log.info("Backend -> %s", backend.name)

qc_raw = shor_ecdlp_triple_qft_circuit()

trans = transpile(
    qc_raw,
    backend=backend,
    initial_layout=PHYSICAL,
    optimization_level=3
)

log.info("Circuit depth %d", trans.depth())
log.info("Gate counts %s", trans.count_ops())

sampler = SamplerV2(mode=backend)
job = sampler.run([trans], shots=SHOTS)
result = job.result()

# Result extraction
creg_name = trans.cregs[0].name
counts_raw = result[0].data.__getattribute__(creg_name).get_counts()

def bits_to_int(bs: str) -> int:
    return int(bs[::-1], 2)

full_counts = {}
ab_marginal_counts = {}
p_marginal_counts = {}

for bitstring, freq in counts_raw.items():
    p_bits = bitstring[:N_Q]
    b_bits = bitstring[N_Q:2 * N_Q]
    a_bits = bitstring[2 * N_Q:3 * N_Q]

    a_val = bits_to_int(a_bits)
    b_val = bits_to_int(b_bits)
    p_val = bits_to_int(p_bits)

    full_counts[(a_val, b_val, p_val)] = freq
    ab_marginal_counts[(a_val, b_val)] = ab_marginal_counts.get((a_val, b_val), 0) + freq
    p_marginal_counts[p_val] = p_marginal_counts.get(p_val, 0) + freq

# Top raw (a, b) peaks from the marginal
top_ab = sorted(ab_marginal_counts.items(), key=lambda kv: kv[1], reverse=True)

# Diagnostic
top_raw_diagnostics = []
for (a_val, b_val), freq in top_ab[:100]:
    if gcd(b_val, ORDER) == 1:
        inv_b = pow(b_val, -1, ORDER)
        diagnostic_k = (-a_val * inv_b) % ORDER
    else:
        diagnostic_k = None

    top_raw_diagnostics.append(((a_val, b_val), diagnostic_k, freq))

found_k7 = any(k == 7 for (_, k, _) in top_raw_diagnostics)

if found_k7:
    print("\nDIAGNOSTIC — k = 7 appeared in the top 100 raw marginal (a, b) peaks\n")
else:
    print("\nWARNING — diagnostic k = 7 NOT found in the top 100 raw marginal (a, b) peaks\n")

print("Top 100 raw marginal (a, b) peaks with diagnostic k when b is invertible:")
for (a_val, b_val), k_val, count in top_raw_diagnostics:
    if k_val is None:
        k_text = "non-invertible b"
        tag = ""
    else:
        k_text = f"diagnostic k = {k_val:2}"
        tag = " <<< diagnostic k=7" if k_val == 7 else ""

    print(f" (a={a_val:2}, b={b_val:2}) count = {count:4}   {k_text}{tag}")

# Show the strongest full (a, b, p) peaks
top_full = sorted(full_counts.items(), key=lambda kv: kv[1], reverse=True)[:40]

print("\nTop 40 full (a, b, p) outcomes:")
for (a_val, b_val, p_val), count in top_full:
    print(f" (a={a_val:2}, b={b_val:2}, p={p_val:2}) -> count = {count}")

# Save raw data + marginals
out = {
    "experiment": "ECDLP_32pts_Triple_QFT_ABC",
    "backend": backend.name,
    "physical_qubits": PHYSICAL,
    "shots": SHOTS,
    "counts_raw_15bit": counts_raw,
    "ab_marginal_counts": {
        f"{a_val},{b_val}": freq
        for (a_val, b_val), freq in ab_marginal_counts.items()
    },
    "p_marginal_counts": {
        str(p_val): freq
        for p_val, freq in p_marginal_counts.items()
    },
    "top_100_raw_ab_peak_diagnostics": [
        {
            "a": a_val,
            "b": b_val,
            "count": count,
            "diagnostic_k": k_val
        }
        for ((a_val, b_val), k_val, count) in top_raw_diagnostics
    ]
}

JSON_PATH = "/Users/steventippeconnic/Documents/QC/Shors_ECC_5_Bit_Triple_QFT_0.json"
with open(JSON_PATH, "w") as fp:
    json.dump(out, fp, indent=4)

log.info("Results saved -> %s", JSON_PATH)

# End

/////////////////////////////////////////////////////////////

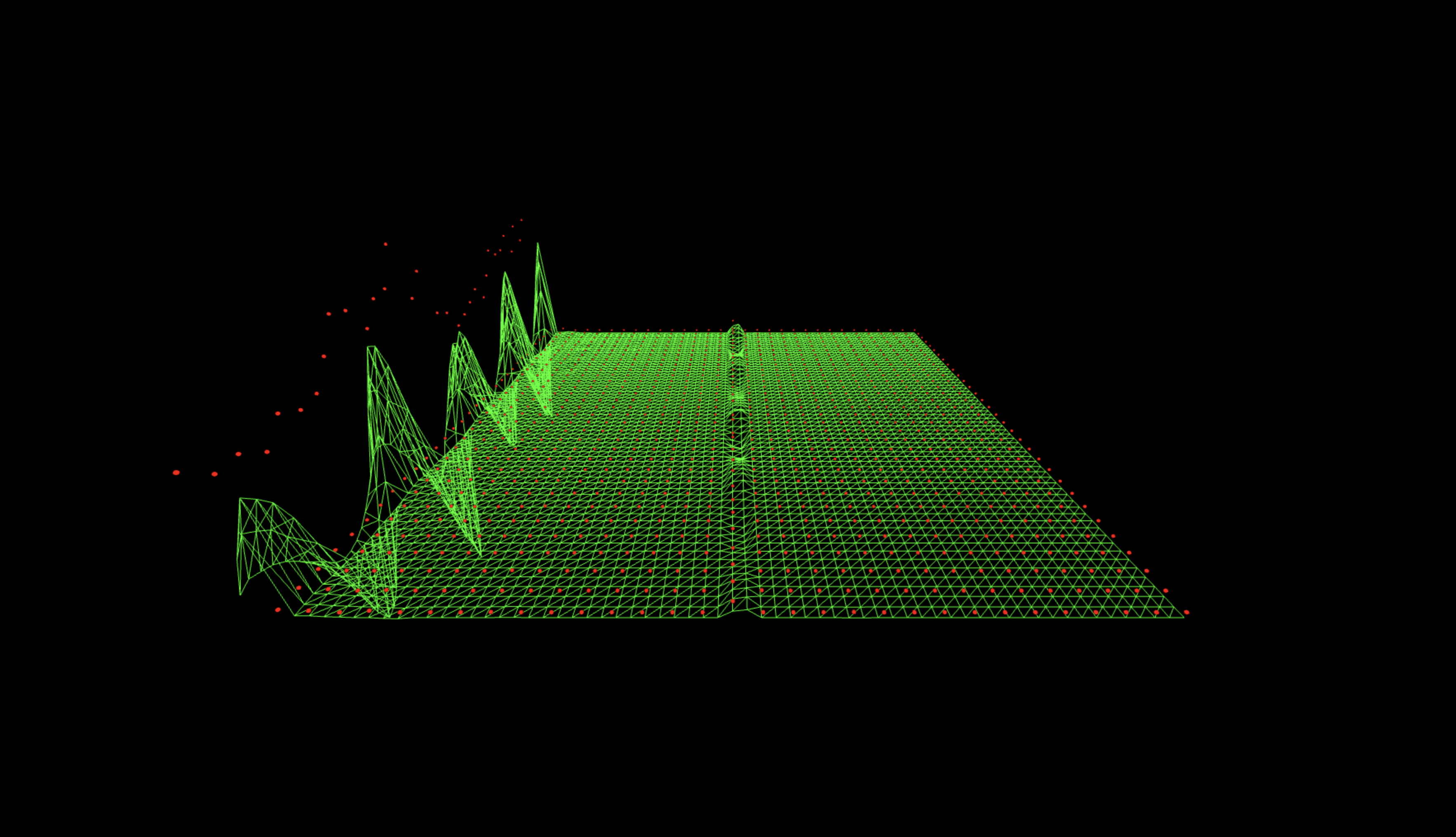

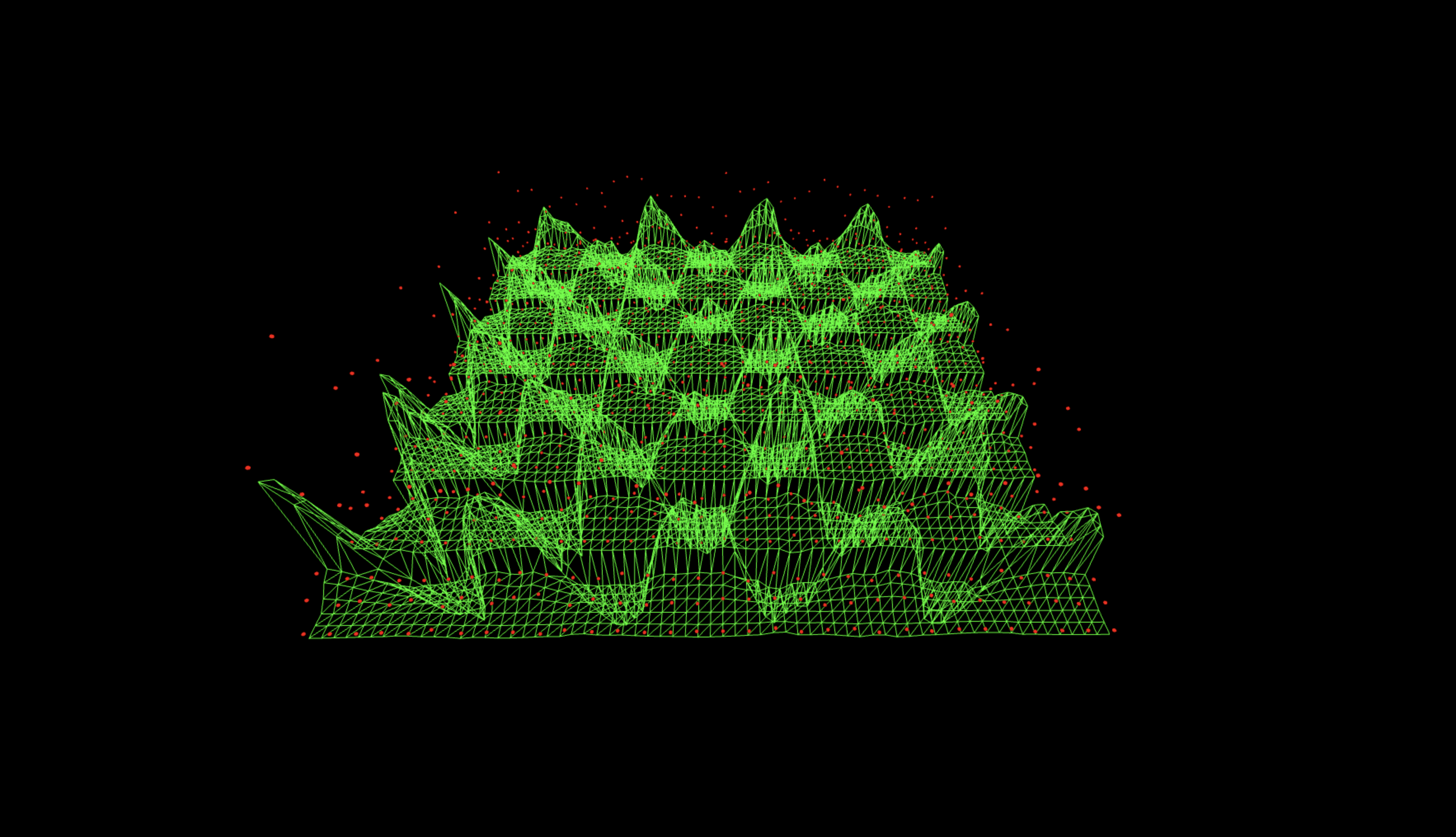

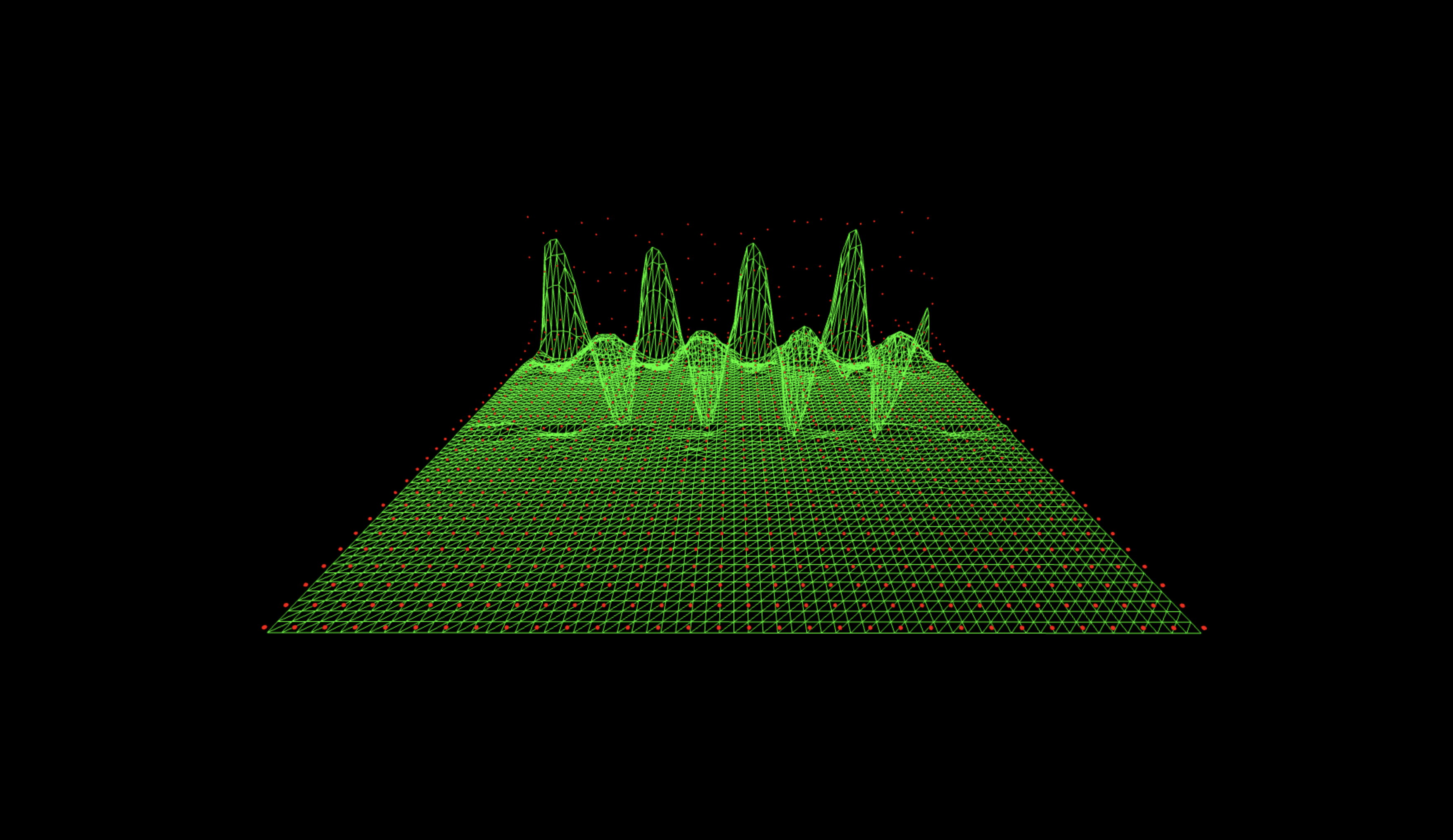

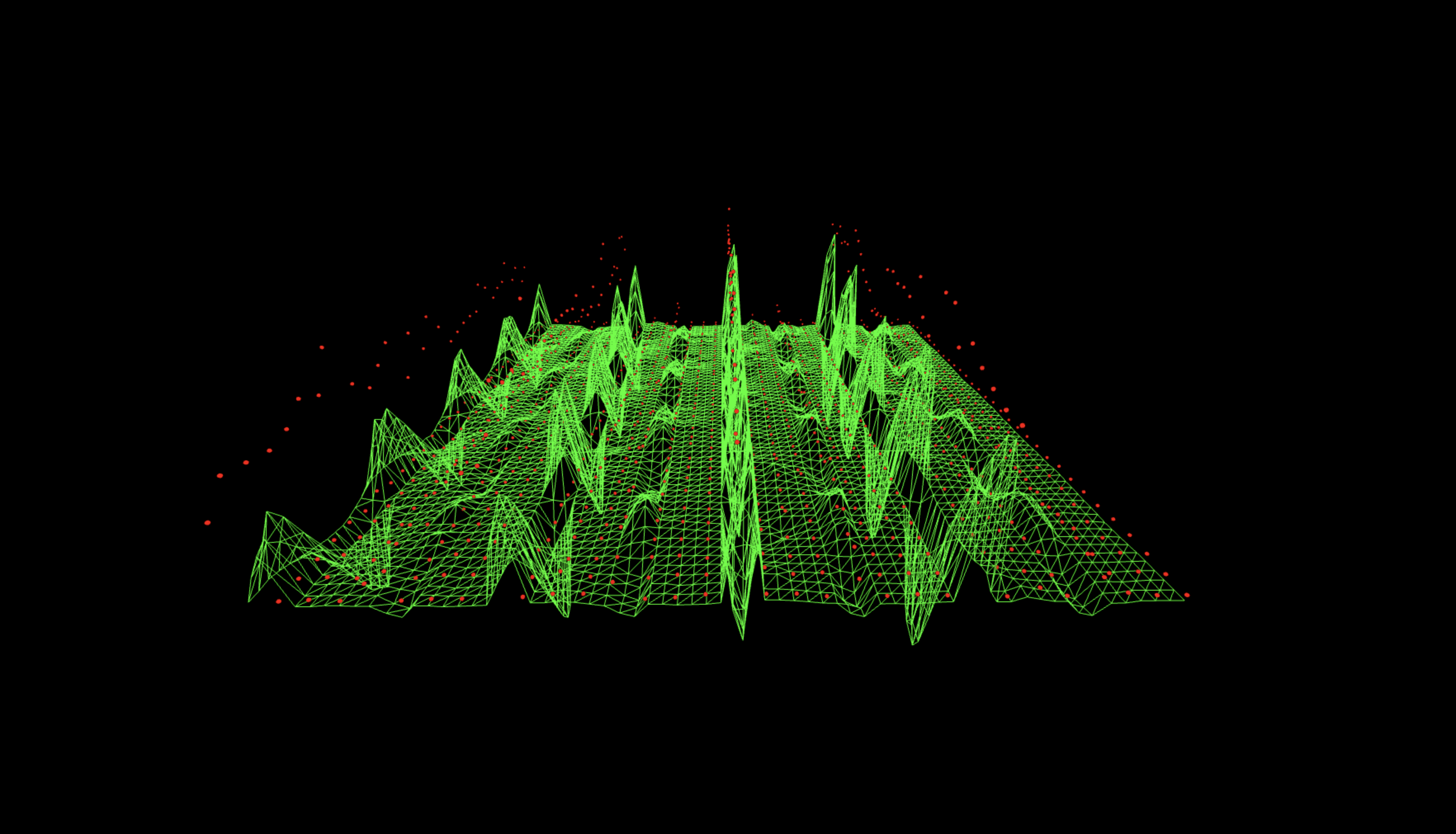

// code for QFT on a only, QFT on b only, aP only, and bQ only Threejs visuals
// Config
const HALF_BITS = 5;                 // 5 per axis
const TOTAL_BITS = 2 * HALF_BITS;    // 10
const GRID = 1 << HALF_BITS;         // 32
const MOD = GRID;                    // 32

// Load JSON (replace for experiment run)
async function loadQuantumData() {
  const res = await fetch('FILE.json');
  const data = await res.json();
  return data.counts;
}

// Three.js setup
const scene    = new THREE.Scene();
const camera = new THREE.PerspectiveCamera(
    75, window.innerWidth / window.innerHeight, 0.1, 1000
);
const renderer = new THREE.WebGLRenderer({ antialias: true });
renderer.setSize(window.innerWidth, window.innerHeight);
document.body.appendChild(renderer.domElement);

// Controls & lighting
const controls = new THREE.OrbitControls(camera, renderer.domElement);
const light = new THREE.DirectionalLight(0xffffff, 1);
light.position.set(10, 10, 10);
scene.add(light);

// Camera
camera.position.set(0, 30, 60);
camera.lookAt(0, 0, 0);

// Globals
let mesh;
let redDots = [];
let time = 0;

// Helpers
const pad10 = s => s.padStart(TOTAL_BITS, '0').slice(-TOTAL_BITS);
const rev   = s => s.split('').reverse().join('');

// Parse into classical (a,b) and use those as display (u,v)
function parseEntries(counts) {
  const entries = [];
  for (const [bit, cRaw] of Object.entries(counts)) {
    const b10   = pad10(bit);
    const left  = b10.slice(0, HALF_BITS);    // raw left 5
    const right = b10.slice(HALF_BITS);       // raw right 5

    const a = parseInt(rev(right), 2);        // a = int(right[::-1], 2)
    const b = parseInt(rev(left),  2);        // b = int(left[::-1],  2)

    const u = a;
    const v = b;

    entries.push({ bit, a, b, u, v, count: Number(cRaw) });
  }
  return entries;
}

function buildMatrix(entries) {
  const matrix = Array.from({ length: GRID }, () => Array(GRID).fill(0));
  let maxCount = 0;
  for (const e of entries) {
    matrix[e.u][e.v] = e.count;
    if (e.count > maxCount) maxCount = e.count;
  }
  return { matrix, maxCount };
}

// Build surface + dots
function createWaveSurface(matrix, maxCount) {
  const WIDTH    = GRID * 2;
  const SEGMENTS = WIDTH;
  const STEP     = WIDTH / (GRID - 1);

  const geometry = new THREE.PlaneGeometry(WIDTH, WIDTH, SEGMENTS, SEGMENTS);
  const colors   = [];
  const gridX    = SEGMENTS + 1;
  const gridY    = SEGMENTS + 1;

  for (let y = 0; y < gridY; y++) {
    for (let x = 0; x < gridX; x++) {
      const color = new THREE.Color(0x00ff00); // uniform green mesh
      colors.push(color.r, color.g, color.b);
    }
  }

  geometry.setAttribute('color', new THREE.Float32BufferAttribute(colors, 3));
  const material = new THREE.MeshBasicMaterial({ vertexColors: true, wireframe: true });

  mesh = new THREE.Mesh(geometry, material);
  mesh.rotation.x = -Math.PI / 2;
  mesh.userData   = { matrix, maxCount, GRID, STEP };
  scene.add(mesh);

  // Red dots at every (u,v)
  const dotMat = new THREE.MeshBasicMaterial({ color: 0xff0000 });
  for (let v = 0; v < GRID; v++) {
    for (let u = 0; u < GRID; u++) {
      const dot = new THREE.Mesh(new THREE.SphereGeometry(0.15, 8, 8), dotMat);
      dot.position.set(
        (u - (GRID - 1) / 2) * STEP,
        0,
        (v - (GRID - 1) / 2) * STEP
      );
      redDots.push(dot);
      scene.add(dot);
    }
  }
}

// Animate
function animate() {
  requestAnimationFrame(animate);
  time += 0.2;
  if (!mesh) {
    renderer.render(scene, camera);
    return;
  }

  const { matrix, maxCount, GRID } = mesh.userData;
  const pos   = mesh.geometry.attributes.position;
  const gridX = mesh.geometry.parameters.widthSegments + 1;
  const gridY = mesh.geometry.parameters.heightSegments + 1;

  for (let i = 0; i < pos.count; i++) {
    const x = i % gridX;
    const y = Math.floor(i / gridX);
    const u = Math.floor(x / (gridX / GRID));
    const v = Math.floor(y / (gridY / GRID));
    const amp  = matrix[u]?.[v] ? matrix[u][v] / maxCount : 0;
    const wave = Math.sin((x + time) * 0.4) * Math.cos((y + time) * 0.4);
    pos.setZ(i, amp * wave * 20);
  }

  // Move dots with amplitude
  redDots.forEach((dot, idx) => {
    const u = idx % GRID;
    const v = Math.floor(idx / GRID);
    const amp = matrix[u]?.[v] ? matrix[u][v] / maxCount : 0;
    dot.position.y = amp * 20 + 0.5;
  });

  pos.needsUpdate = true;
  controls.update();
  renderer.render(scene, camera);
}

// Main
loadQuantumData().then(counts => {
  const entries = parseEntries(counts);
  const { matrix, maxCount } = buildMatrix(entries);

  createWaveSurface(matrix, maxCount);
  animate();
});

/////////////////////////////////////////////////////////////

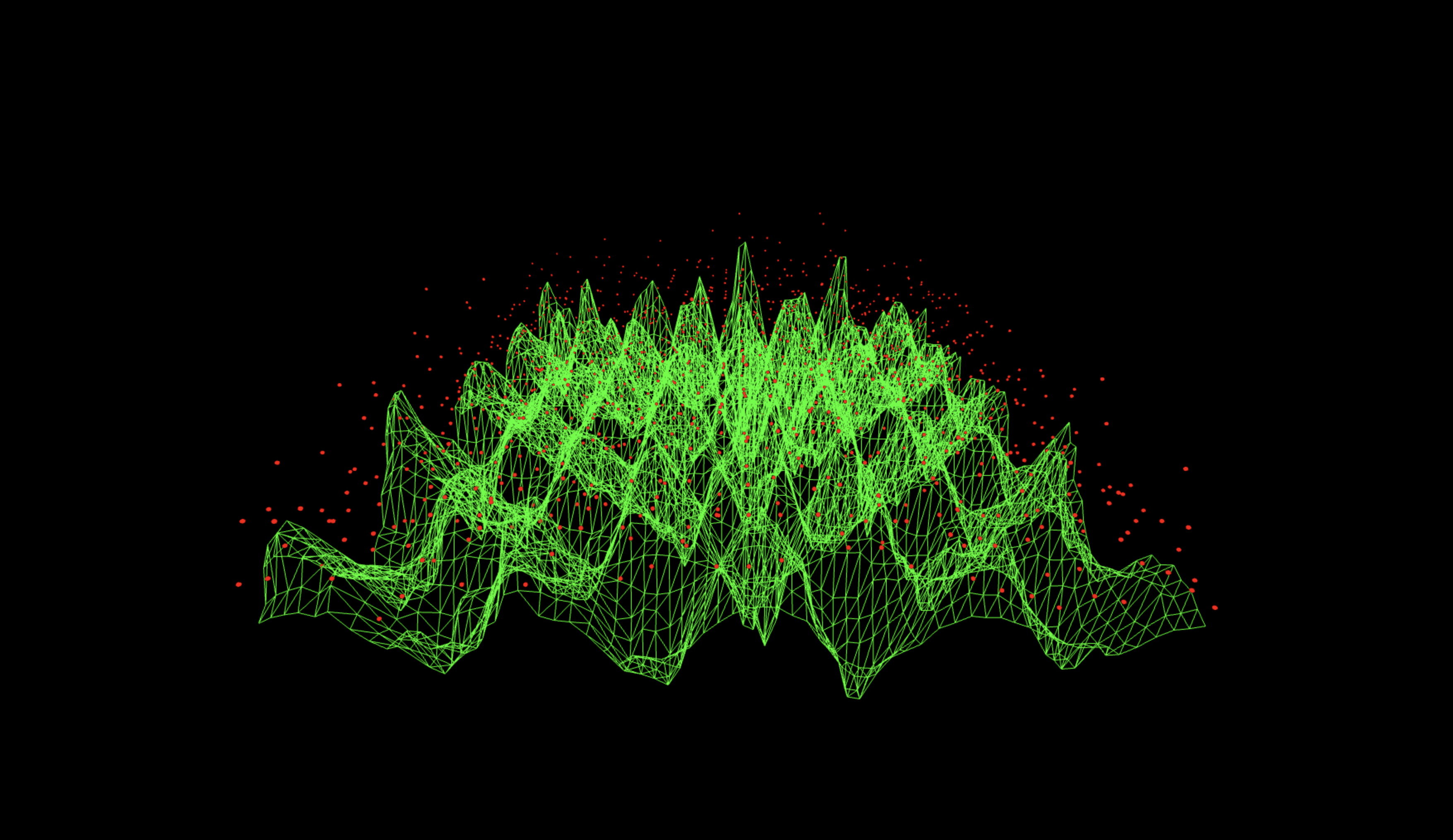

// code for triple QFT Threejs visual

// code for all Threejs visuals
// Config
const HALF_BITS = 5;                 // 5 per axis
const TOTAL_BITS = 2 * HALF_BITS;    // 10
const GRID = 1 << HALF_BITS;         // 32
const MOD = GRID;                    // 32

// Load JSON (triple-QFT run uses ab_marginal_counts, not counts)
async function loadQuantumData() {
  const res = await fetch('FILE.json');
  const data = await res.json();
  return data.ab_marginal_counts || {};
}

// Three.js setup
const scene = new THREE.Scene();
const camera = new THREE.PerspectiveCamera(
  75, window.innerWidth / window.innerHeight, 0.1, 1000
);
const renderer = new THREE.WebGLRenderer({ antialias: true });
renderer.setSize(window.innerWidth, window.innerHeight);
document.body.style.margin = '0';
document.body.style.overflow = 'hidden';
document.body.appendChild(renderer.domElement);

// Controls & lighting
const controls = new THREE.OrbitControls(camera, renderer.domElement);
const light = new THREE.DirectionalLight(0xffffff, 1);
light.position.set(10, 10, 10);
scene.add(light);

// Camera
camera.position.set(0, 30, 60);
camera.lookAt(0, 0, 0);

// Globals
let mesh;
let redDots = [];
let time = 0;

// Parse "a,b" -> entries for display as (u,v) = (a,b)
function parseEntries(counts) {
  const entries = [];

  for (const [key, cRaw] of Object.entries(counts)) {
    const parts = key.split(',');
    if (parts.length !== 2) continue;

    const a = Number(parts[0]);
    const b = Number(parts[1]);
    const count = Number(cRaw);

    if (!Number.isFinite(a) || !Number.isFinite(b) || !Number.isFinite(count)) continue;
    if (a < 0 || a >= GRID || b < 0 || b >= GRID) continue;

    const u = a;
    const v = b;

    entries.push({ key, a, b, u, v, count });
  }

  return entries;
}

function buildMatrix(entries) {
  const matrix = Array.from({ length: GRID }, () => Array(GRID).fill(0));
  let maxCount = 0;

  for (const e of entries) {
    matrix[e.u][e.v] = e.count;
    if (e.count > maxCount) maxCount = e.count;
  }

  return { matrix, maxCount };
}

// Build surface + dots
function createWaveSurface(matrix, maxCount) {
  const WIDTH = GRID * 2;
  const SEGMENTS = WIDTH;
  const STEP = WIDTH / (GRID - 1);

  const geometry = new THREE.PlaneGeometry(WIDTH, WIDTH, SEGMENTS, SEGMENTS);
  const colors = [];
  const gridX = SEGMENTS + 1;
  const gridY = SEGMENTS + 1;

  for (let y = 0; y < gridY; y++) {
    for (let x = 0; x < gridX; x++) {
      const color = new THREE.Color(0x00ff00); // uniform green mesh
      colors.push(color.r, color.g, color.b);
    }
  }

  geometry.setAttribute('color', new THREE.Float32BufferAttribute(colors, 3));
  const material = new THREE.MeshBasicMaterial({ vertexColors: true, wireframe: true });

  mesh = new THREE.Mesh(geometry, material);
  mesh.rotation.x = -Math.PI / 2;
  mesh.userData = { matrix, maxCount, GRID, STEP };
  scene.add(mesh);

  // Red dots at every (u,v)
  const dotMat = new THREE.MeshBasicMaterial({ color: 0xff0000 });
  for (let v = 0; v < GRID; v++) {
    for (let u = 0; u < GRID; u++) {
      const dot = new THREE.Mesh(new THREE.SphereGeometry(0.15, 8, 8), dotMat);
      dot.position.set(
        (u - (GRID - 1) / 2) * STEP,
        0,
        (v - (GRID - 1) / 2) * STEP
      );
      redDots.push(dot);
      scene.add(dot);
    }
  }
}

// Animate
function animate() {
  requestAnimationFrame(animate);
  time += 0.2;

  if (!mesh) {
    renderer.render(scene, camera);
    return;
  }

  const { matrix, maxCount, GRID } = mesh.userData;
  const pos = mesh.geometry.attributes.position;
  const gridX = mesh.geometry.parameters.widthSegments + 1;
  const gridY = mesh.geometry.parameters.heightSegments + 1;

  for (let i = 0; i < pos.count; i++) {
    const x = i % gridX;
    const y = Math.floor(i / gridX);
    const u = Math.min(GRID - 1, Math.floor(x / (gridX / GRID)));
    const v = Math.min(GRID - 1, Math.floor(y / (gridY / GRID)));

    const amp = maxCount > 0 && matrix[u]?.[v] ? matrix[u][v] / maxCount : 0;
    const wave = Math.sin((x + time) * 0.4) * Math.cos((y + time) * 0.4);
    pos.setZ(i, amp * wave * 20);
  }

  // Move dots with amplitude
  redDots.forEach((dot, idx) => {
    const u = idx % GRID;
    const v = Math.floor(idx / GRID);
    const amp = maxCount > 0 && matrix[u]?.[v] ? matrix[u][v] / maxCount : 0;
    dot.position.y = amp * 20 + 0.5;
  });

  pos.needsUpdate = true;
  controls.update();
  renderer.render(scene, camera);
}

// Resize
window.addEventListener('resize', () => {
  camera.aspect = window.innerWidth / window.innerHeight;
  camera.updateProjectionMatrix();
  renderer.setSize(window.innerWidth, window.innerHeight);
});

// Main
loadQuantumData().then(counts => {
  const entries = parseEntries(counts);
  const { matrix, maxCount } = buildMatrix(entries);

  console.log('Loaded entries:', entries.length);
  console.log('Max count:', maxCount);

  createWaveSurface(matrix, maxCount);
  animate();
}).catch(err => {
  console.error('Failed to load quantum data:', err);
});
